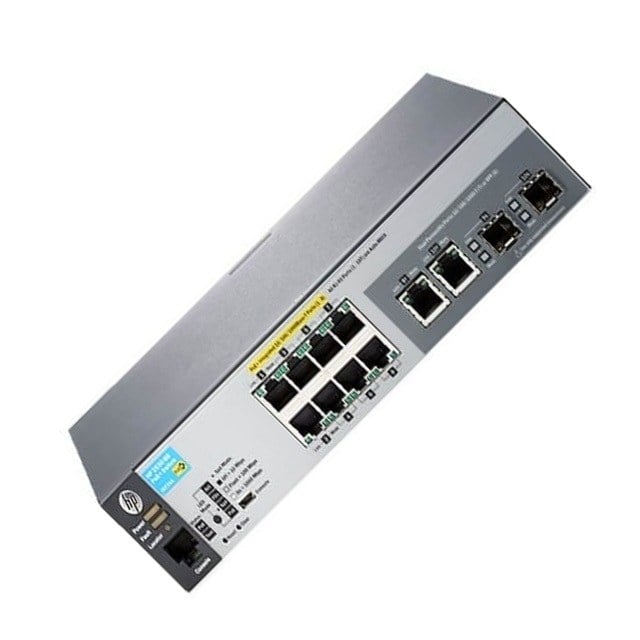

In the world of networking, the HP J9774-61001 2530 8G Managed Switch stands out as a powerful and versatile solution. This article delves into the key features, specifications, and applications of this device. From its Power Over Ethernet Plus (PoE+) capabilities to its desktop, rack-mountable, and wall-mountable design, we'll explore how this switch can enhance connectivity in various environments.
- Power Over Ethernet Plus (PoE+): The HP J9774-61001 is equipped with Power Over Ethernet Plus (PoE+), a technology that enables the switch to deliver both data and electrical power over Ethernet cables. This feature is particularly valuable for devices such as IP cameras, wireless access points, and VoIP phones, eliminating the need for separate power sources.
- 8 Ports Ethernet: With eight Ethernet ports, this switch provides ample connectivity for various devices. Each port is a gateway for data transfer, making it suitable for small to medium-sized networks.
- Managed Switch: The switch falls into the category of managed switches, giving users greater control over their network. Managed switches offer advanced features like VLAN support, QoS (Quality of Service) configuration, and network monitoring. This level of control is essential for optimizing network performance and ensuring efficient data flow.
- Desktop, Rack-Mountable, and Wall-Mountable Design: The versatility of the HP J9774-61001 is evident in its design. It can be conveniently placed on a desktop for easy access, mounted in a standard rack for organized server rooms, or even wall-mounted to save space. This adaptability makes it suitable for a range of environments, from office settings to industrial facilities.
- Model Number: The specific model number, J9774-61001, indicates the unique identifier for this switch. Understanding the model number is crucial when seeking compatibility and support for this device.
- Network Standards: The switch adheres to industry-standard network protocols and standards, ensuring seamless integration into existing networks. Compatibility with protocols such as IEEE 802.3 and IEEE 802.3u is vital for interoperability.
- Data Transfer Speed: The switch's data transfer speed is a critical specification. The 2530 8G in the model name signifies that this switch supports Gigabit Ethernet, providing a high-speed data transfer rate of up to 1000 megabits per second (Mbps).
- Power Over Ethernet Budget: PoE+ functionality requires a certain power budget. Understanding the power over Ethernet budget helps users determine the number and type of PoE devices that can be connected without overloading the switch.
- Form Factor: The switch's form factor, which includes its dimensions and weight, is essential for planning its placement. Whether it's a compact desktop unit or a rack-mounted device, knowing the form factor aids in designing an efficient and organized network setup.
- Surveillance Systems: The PoE+ capability makes this switch ideal for surveillance systems. IP cameras can be easily connected and powered through the Ethernet ports, simplifying installation and reducing cable clutter.
- Wireless Networks: Wireless access points often require both data connectivity and power. The HP J9774-61001 caters to this need, providing a centralized and efficient solution for building or expanding wireless networks.
- VoIP (Voice over Internet Protocol) Systems: Businesses relying on VoIP systems can benefit from the switch's managed features, ensuring a stable and prioritized connection for voice communication. The PoE+ support also eliminates the need for separate power sources for VoIP phones.
- Flexible Office Environments: The switch's desktop, rack-mountable, and wall-mountable design makes it suitable for various office setups. It can be seamlessly integrated into both traditional office spaces and more unconventional environments.
- Initial Configuration: Managed switches often require initial configuration. This involves accessing the switch's web-based interface or using command-line interfaces to set up basic parameters such as IP addresses, VLANs, and security settings.
- PoE+ Configuration: Configuring the PoE+ features involves setting power budgets for individual ports, prioritizing power delivery based on device requirements, and monitoring power usage. This ensures efficient utilization of PoE capabilities.
- Network Optimization: The managed features of the switch enable users to optimize their network for performance. This includes configuring Quality of Service (QoS) settings to prioritize certain types of traffic, ensuring a smoother and more reliable data flow.
Efficient Network Management
- The HP J9774-61001 2530 8G PoE Wall-Mountable Ethernet Switch is an efficient and reliable network management solution that allows for easy installation and management of Ethernet networks. This switch features 8 Gigabit Ethernet ports and 2 SFP ports, making it ideal for small to medium-sized networks.
- One of the key features of the HP J9774-61001 is its PoE (Power over Ethernet) capability, which allows for the delivery of power to network devices through the Ethernet cables, eliminating the need for additional power outlets and reducing installation costs. This switch also supports advanced security features, such as 802.1X authentication and access control lists, to keep your network secure.
- The switch also comes with a web-based management interface, which allows for easy configuration and monitoring of the network. This interface also provides detailed information about the switch's performance, such as port status, traffic statistics, and error counts.
- In addition to its advanced features, the HP J9774-61001 is also designed for easy installation and maintenance. The switch can be wall-mounted, making it easy to install in a variety of environments, and its compact size makes it ideal for small spaces.
Benefits of Using
- Power over Ethernet (PoE) capability: The switch allows for the power and data to be transmitted over the same Ethernet cable, eliminating the need for separate power sources for connected devices.
- Wall-mountable design: The switch can be easily mounted on a wall, saving space and allowing for a more organized network setup.
- 8 Gigabit Ethernet ports: The switch has 8 Gigabit Ethernet ports, allowing for fast data transfer speeds and the ability to connect multiple devices at once.
- Quality of Service (QoS) support: The switch supports QoS, which allows for prioritization of traffic to ensure important data is transmitted first.
- Easy setup and management: The switch is easy to set up and manage, with a user-friendly web interface and the ability to be managed remotely.
- VLAN support: The switch supports Virtual Local Area Networks (VLANs), which allows for better network segmentation and security.
- Energy efficient: The switch is Energy Efficient Ethernet (EEE) compliant, which helps to reduce energy consumption and save costs.
- Durable and reliable: The switch is built with high-quality components, making it durable and reliable for long-term use.
Safety and Compliance Information
The HP J9774-61001 2530 8G PoE Wall-Mountable Ethernet Switch is designed to meet safety and compliance standards set by various regulatory bodies such as the Federal Communications Commission (FCC), the European Union (EU), and the Canadian Standards Association (CSA).
- FCC compliance: This switch is compliant with FCC Part 15 Class A and Part 15 Class B regulations for electromagnetic interference (EMI) and radio frequency interference (RFI).
- EU compliance: This switch is compliant with the Low Voltage Directive (LVD) and the Electromagnetic Compatibility Directive (EMC) of the EU.
- CSA compliance: This switch is compliant with the Canadian Standards Association (CSA) standards for electrical safety and EMI/RFI.
- PoE compliance: This switch is compliant with IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards.
It is important to note that the switch should be installed and operated according to the manufacturer's instructions and guidelines to ensure proper safety and compliance. It is recommended to consult the user manual for more information on safety and compliance
General Information about this J9774-61001 HP
- Device Type: Switch - 8 Ports - Managed
- Type: Networking
- Enclosure Type: Desktop, Rack-Mountable, Wall-Mountable 1u
- Interfaces: Gigabit Ethernet
- Pors: 8 X 10/100/1000 (Poe+) + 2 X Combo GigabitSFPp
- Power Over Ethernet (Poe: Poe+
- Poe Budge: 67
- Throughput: Up To 14.8 Mpps
- Switching Capacity: 20 Gbps
- Capacity: Mac Address: 16000
- Mac Address Table Siz: 16000 Entries
- Jumbo Frame Suppor: 9220
Remote Management Protocol
- Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, SNMP 3, SNMP 2c, Http, Tftp, Ssh-2, Cli
- Flow Control, Dhcp Support, Bootp Support, Arp Support, TrunkingVLANan Support, Auto-Uplink (Auto Mdi/Mdi-X), Port Mirroring, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sntp Support, Sflow, Multiple Spanning Tree Protocol (Mstp) Support, Access Control List (Acl) Support, Quality Of ServiceQoSos), Stp Root Guard, Lldp Support, Class Of Service (Cos), Generic Attribute Registration Protocol (Garp)
- Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (Lldp), Ieee 802.3at, Ieee 802.3az
- Power: Ac 120/230 V ( 50/60 Hz )
In general, the HP J9774-61001 2530 8G Power Over Ethernet Plus (PoE+) Managed Switch offers a comprehensive solution for network connectivity. From its versatile design to its advanced managed features, this switch is well-suited for a variety of applications. Whether enhancing surveillance systems, expanding wireless networks, supporting VoIP communication, or adapting to flexible office environments, the switch provides the performance and control necessary for modern networking demands. Understanding its key features, specifications, and applications is essential for users looking to optimize their network infrastructure.
