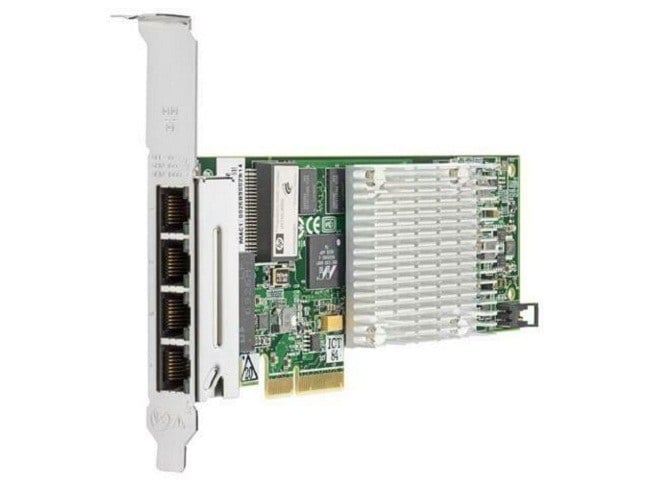

The HPE NC375T 1GB 4 Port Ethernet Wired Network Adapter is a network interface card (NIC) developed by Hewlett Packard Enterprise (HPE) that provides high-performance Ethernet connectivity to servers and workstations. This adapter is designed to meet the demands of bandwidth-intensive applications and virtualized environments.
In this article, we will explain in detail what the HPE NC375T 1GB 4 Port Ethernet Wired Network Adapter is, how it works, and its key features and benefits.
Ethernet Wired Network AdapterAn Ethernet wired network adapter is a hardware device that enables a computer or server to connect to a local area network (LAN) using an Ethernet cable. The adapter translates digital signals from the computer or server into analog signals that can be transmitted over the Ethernet cable.
Ethernet is a widely used networking standard that uses twisted-pair or fiber-optic cables to transmit data packets between devices on a LAN. Ethernet wired network adapters typically support different Ethernet standards, such as 10BASE-T, 100BASE-TX, 1000BASE-T, and 10GBASE-T, which provide different levels of bandwidth and speed.
The HPE NC375T 1GB 4 Port AdapterThe HPE NC375T 1GB 4 Port Ethernet Wired Network Adapter is a high-performance Ethernet adapter that supports four 10/100/1000 Mbps Ethernet ports. It is designed for use in servers and workstations that require high-bandwidth connectivity for data-intensive applications.
The adapter uses a PCI Express 2.0 x4 interface, which provides high-speed connectivity to the host system. It also supports various Ethernet standards, including IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x, which ensure compatibility with a wide range of network devices.
The HPE 1GB Ethernet Network AdapterThe HPE NC375T 1GB 4 Port Ethernet Wired Network Adapter works by connecting to a PCI Express slot on the host system and establishing a physical link with the LAN. The adapter uses a standard Ethernet cable to transmit and receive data packets between the host system and the network.
The adapter uses advanced features such as TCP/IP offloading and checksum offloading to reduce the host system's workload and improve network performance. These features enable the adapter to handle complex network tasks such as packet processing, error checking, and data segmentation, freeing up the host system's CPU and memory resources for other tasks.
Key features of Ethernet AdapterThe HPE NC375T 1GB 4 Port Ethernet Wired Network Adapter offers several key features that make it a suitable choice for high-performance Ethernet connectivity in servers and workstations. Some of these features include:
- Four 10/100/1000 Mbps Ethernet ports - The adapter supports four Ethernet ports, providing high-bandwidth connectivity for data-intensive applications.
- PCI Express 2.0 x4 interface - The adapter uses a high-speed interface to connect to the host system, ensuring fast and reliable data transfer.
- TCP/IP offloading - The adapter offloads complex network tasks such as TCP/IP processing from the host system's CPU, improving network performance.
- Checksum offloading - The adapter offloads the task of error checking from the host system's CPU, reducing CPU usage and improving network performance.
- VLAN tagging - The adapter supports virtual LAN (VLAN) tagging, enabling it to handle traffic from multiple VLANs on a single port.
- Manufacturer :HPE
- Model Number or SKU# NC375T
- Device Type: Network adapter
- Ports: Gigabit Ethernet x 4
- Form Factor: Low profile
- Interface (Bus) Type: PCI Express 2.0 x4
- PCI Specification Revision: PCIe 2.0
- Connectivity Technology: Wired
- Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
- Data Transfer Rate: 1 GBPS
- Features: Flow control, VLAN support, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP)
- Interfaces: 4 x 1000Base-T - RJ-45
- Compatible Slots: 1 x PCI Express 2.0 x4
Product Dimensions & Weight
- Depth: 6.60 inch
- Height: 2.70 inch
- HPE ProLiant DL Series: DL120 Gen6, DL120 Gen6 Base, DL120 Gen6 Entry, DL120 Gen6 Performance, DL120 Gen7, DL120 Gen7 Base, DL120 Gen7 Entry, DL120 Gen7 Performance, DL160 Gen6, DL160se Gen6, DL165 Gen6, DL165 Gen7, DL165 Gen7 Performance, DL180 Gen6, DL2x170h Gen6, DL320 Gen6, DL320 Gen6 Entry, DL320 Gen6 High Efficiency, DL320 Gen6 Performance, DL360 Gen6, DL360 Gen6 Base, DL360 Gen6 Efficiency, DL360 Gen6 Entry, DL360 Gen6 Performance, DL360 Gen7, DL360 Gen7 Base, DL360 Gen7 Central Management Server, DL360 Gen7 Efficiency, DL360 Gen7 Entry, DL360 Gen7 Performance, DL370 Gen6, DL370 Gen6 Base, DL370 Gen6 High Performance, DL370 Gen6 Performance, DL380 Gen6, DL380 Gen6 Base, DL380 Gen6 Entry, DL380 Gen6 High Efficiency, DL380 Gen6 Performance, DL380 Gen7, DL380 Gen7 Base, DL380 Gen7 Efficiency, DL380 Gen7 Entry, DL380 Gen7 Performance, DL385 Gen6, DL385 Gen6 Base, DL385 Gen6 Entry, DL385 Gen6 High Performance, DL385 Gen6 Performance, DL385 Gen7, DL385 Gen7 Base, DL385 Gen7 Entry, DL385 Gen7 HE, DL385 Gen7 Performance, DL4x170h Gen6, DL580 Gen7, DL580 Gen7 Base, DL580 Gen7 High Performance, DL585 Gen6, DL585 Gen6 Base, DL585 Gen6 Performance, DL585 Gen7, DL585 Gen7 Base, DL585 Gen7 Performance, DL785 Gen6, DL785 Gen6 Base, DL785 Gen6 Performance, DL980 Gen7
- HPE ProLiant ML Series: ML110 Gen7, ML110 Gen7 Base, ML110 Gen7 Entry, ML110 Gen7 Performance, ML150 Gen6, ML150 Gen6 Base, ML150 Gen6 Entry, ML150 Gen6 Performance, ML310 Gen5p, ML330 Gen6, ML330 Gen6 Base, ML330 Gen6 Entry, ML330 Gen6 Performance, ML350 Gen6, ML350 Gen6 Base, ML350 Gen6 Entry, ML350 Gen6 Performance, ML370 Gen6, ML370 Gen6 Base, ML370 Gen6 Entry
- HPE ProLiant SL Series: SL160s Gen6, SL160z Gen6, SL165s Gen7, SL165z Gen6, SL165z Gen7, SL170z Gen6, SL2x170z Gen6, SL390s Gen7
- HPE StorageWorks Network Storage System X1400 Gen2, X1500 Gen2, X1600 Gen2, X1800 Gen2
