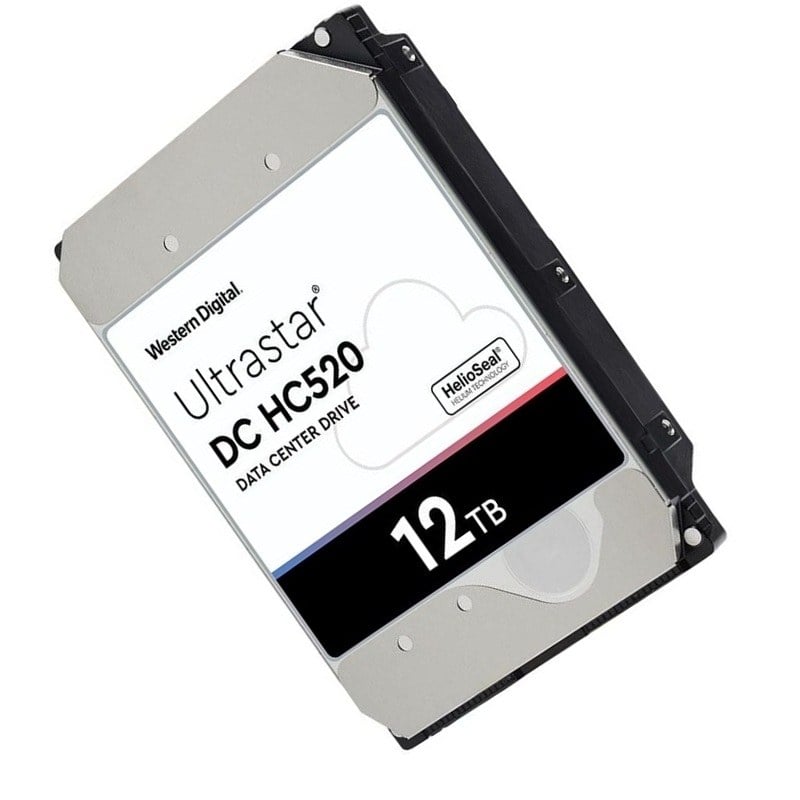

The Western Digital HUH721212AL5204 is a high-performance internal hard drive that is well-suited for use in enterprise-level applications. It is a 12TB 7.2K RPM SAS 12GBps internal hard drive with 256MB cache.
The SAS interface of the drive is known for its reliability and durability, and is commonly used in enterprise-level applications. SAS 12GBps interface allows for fast data transfer rates and high-performance, which can help improve the overall performance of the system in which it is installed.
The drive can be used in a RAID configuration, which can provide additional data protection and redundancy. It also supports Power Loss Data Protection which helps in protecting the data in the event of a power loss. This feature helps in protecting the data from corruption and data loss.
The drive also supports SED (Self-Encrypting Drive) which provides hardware-based encryption to protect data-at-rest. This feature is important in applications where data security is a priority, such as financial services, healthcare, and government.
The drive also features a large 256MB cache, which helps in improving the overall performance of the drive. It helps in faster data access and faster data transfer.
Additionally, Western Digital has a robust testing process for each drive before it gets shipped to the customers. This process helps in identifying any potential issues with the drive and improves its overall reliability. Furthermore, Western Digital provides a long warranty period on the drive, which further improves its reliability.
Side of This
The Western Digital HUH721212AL5204 is a high-performance internal hard drive that offers several advantages. Some of the key benefits of this drive include:
- Large storage capacity: With a 12TB storage capacity, this drive can store large amounts of data, making it ideal for use in applications such as data storage, media archiving, and backups.
- Fast data transfer rates: The 12GBps SAS interface allows for fast data transfer rates, which can help improve the overall performance of the system in which it is installed.
- High-performance: The 7.2K RPM spindle speed is relatively fast for a hard drive, which allows it to quickly access and transfer data.
- Reliability: SAS interface drives are commonly used in enterprise-level applications and are known for their reliability and durability.
- RAID Support: The drive is also designed for use in a RAID configuration, which can provide additional data protection and redundancy. This allows for fault tolerance and improves the overall availability of data.
- Large Cache: The drive has a large 256MB cache which helps in improving the overall performance of the drive. It helps in faster data access and faster data transfer.
- Security: The drive supports SED (Self-Encrypting Drive) which provides hardware-based encryption to protect data-at-rest. This feature is important in applications where data security is a priority, such as financial services, healthcare, and government.
- Robust Testing and Long Warranty: Western Digital has a robust testing process for each drive before it gets shipped to the customers and also provides a long warranty period on the drive, which further improves its reliability.
The Western Digital HUH721212AL5204 is a high-performance internal hard drive that is well-suited for use in enterprise-level applications. Some of the key factors that contribute to the high performance of this drive include:
- High rotational speed: The 7.2K RPM spindle speed is relatively fast for a hard drive, which allows it to quickly access and transfer data. This results in faster data access and faster data transfer, which improves the overall performance of the drive.
- Large cache: The drive has a large 256MB cache, which helps in improving the overall performance of the drive. The cache acts as a buffer between the hard drive and the host computer, and it stores frequently accessed data for faster access.
- SAS interface: The 12GBps SAS interface allows for fast data transfer rates, which can help improve the overall performance of the system in which it is installed.
- RAID support: The drive is designed for use in a RAID configuration, which can provide additional performance benefits like increased data protection and redundancy. RAID configurations like RAID 0, RAID 1, RAID 5 and RAID 6 can also improve performance by striping or mirroring data across multiple drives.
- Advanced Format 512e: The drive supports Advanced Format 512e, which is a standard for disk formatting that increases the disk's storage capacity. This feature allows for a larger number of sectors per track, which results in improved drive performance.
All these factors together contribute to the high performance of the Western Digital this model , making it a suitable hard drive for use in enterprise-level applications that require high-capacity storage and high-performance data transfer rates.
General Information about this Western Digital HUH721212AL5204
- Brand Name: Western Digital
- Model Number or SKU# HUH721212AL5204
- Product Line: Ultrastar
- Product Name: Ultrastar Dc Hc520 12TB Enterprise Hard Drive
Technical Information for 12TB Hard Drive
- Storage Capacity: 12 TB
- Enclosure: Internal
- Interface: SAS 12GBPS
- Max. Areal Density: 864 Gbits/Sq. In
- Drive Dimensions: 3.5 Inch
- Mtbf: 2.5 Million Hours
- Interface Transfer Rate: 1200 MBPS
- Sustained Transfer Rate: 243 MBPS (Read), 255 MBPS (Write)
- Seek Time (Read, Typical): 8.0 Ms
- Seek Time (Write, Typical): 8.6 Ms
- Average Latency: 4.16 Ms
- Buffer: 256 MB
- Rotational Speed: 7200 RPM
Dimension and Weight of SAS 12GBPS Hard Disk
- Width: 4 Inch
- Depth: 5.8 Inch
- Height: 1 Inch
- Weight: 1.52 Lbs
- Enterprise And Data Center Applications Where Capacity Density, Power Efficiency And Reliability Are Paramount
- Cloud & Hyperscale Storage
- Massive Scale-Out (Mso), High-Density Data Centers
- Distributed File Systems
- Bulk Storage Using Object Storage Solutions Like Ceph™ And Openstack Swift
- Primary And Secondary Storage For Hadoop® To Support Big Data Analytics
- Centralized Video Surveillance
- Ideal For All Mainstream Enterprise Capacity Applications
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model's matching features with your current system.
The Serial Attached SCSI (SAS) hard drives have become increasingly popular for their increasing use in high-end workstations and servers. These drives are employed in consumer desktops and modern servers for their speed and reliability. Enterprises have made the SAS hard drives their de-facto standard. Now, the 12Gbps speed throws the usefulness of these drives up a notch.
Most professional hosting providers now use SAS 12Gbps hard drives for data production. These drives have proven useful in high input/output operations and critical website functions. Users trust these drives because there is no risk of data loss, corruption, or downtime.
SAS 12Gbps drives read, write, and process data within split seconds. The latest 12Gbps disks use the latest RAID hardware technology to offer faster data transfer and recovery rates. They are perfect for sequential data, high workloads, and random IOPS alike.
This function allows them to be best suited for servers that have 100 percent duty cycles. They do not only work with desktops and PCs, but they can read/write data 24/7.
SAS 12Gbps HDDs have received utmost attention in the market as a result of its high performance. These performance benefits allow it to be useful for a wide variety of applications. For instance, a SAS 12Gbps connection can support up to four wide lanes per connection.
Connecting JBOD with these SAS drives can support up to 1200MB/s. These high-performance drives do not only help handle large workloads; they also offer cost-effective expansion to an already robust system.
Also, each 12Gbps high-performance SAS drives can offer users a rotational speed of up to 15000 rpm.
They provide a great bandwidth enough to perform efficiently. The robust performance of SAS 12Gbps drives clearly a worthy investment for improved performance of servers and desktops. They provide very large amounts of storage options and a cost-effective choice for users.
The flexibility is one of the best benefits of SAS 12Gbps drives. These drives have configured flexibility, which allows them to work perfectly with several devices without modification or changes. Many of them feature a Universal Serial controller for seamless system support.
SAS 12Gbps hard drives can also be partitioned in a storage pool and assigned to servers for work-intensive applications. They are a perfect fit for server systems, including reservation systems, medical imaging, and more!
Only this range of SAS hard drives can provide users with the best worlds of flexibility. This way, allowing them to support use with other drives.
12Gbps SAS-based storage systems have the benefit of dual-port capability. This allows them to provide a redundant path to the drives in case of controller failover. These drives also operate on separate point-to-point connections. That way, it is rare for drive connection loss to affect them.SAS 12Gbps HDDs are built to handle the rigors of heavy workloads and enterprise use. They also safeguard data integrity, thanks to their ability to comprehensively verify data and correct errors.
