Description
Product Overview

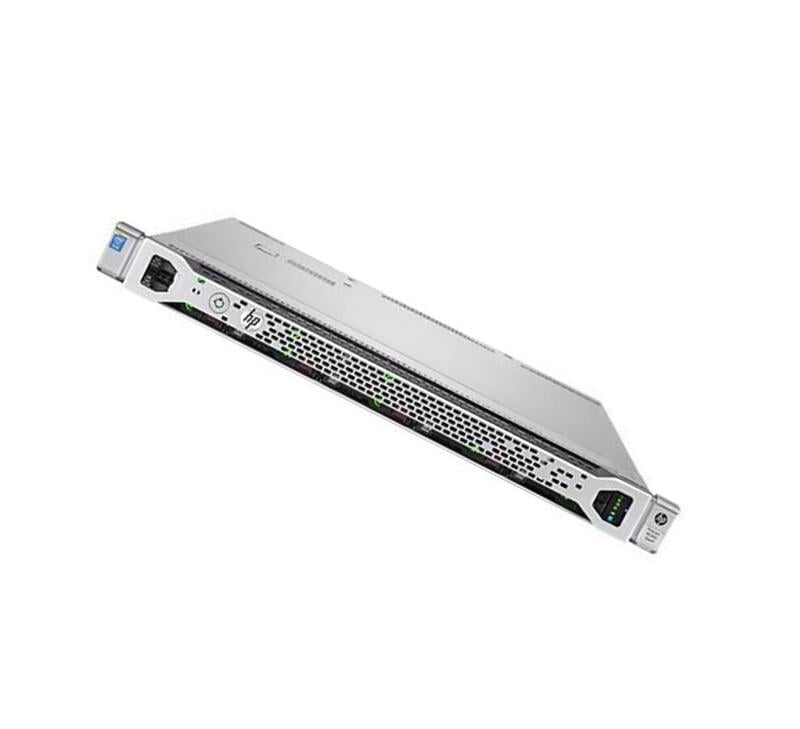

The HPE ProLiant DL360 Gen9 server is a high-performance computing machine designed for businesses and organizations that require a powerful and reliable computing solution. It is equipped with advanced features and components that make it ideal for use in a wide range of applications such as virtualization, data center operations, cloud computing, and more. In this article, we will provide a detailed explanation of the specifications of the HPE ProLiant DL360 Gen9 server with the following subheadings.
Specifications
The HPE ProLiant DL360 Gen9 server is powered by an Intel Xeon E5-2680 v3 processor, which has a base clock speed of 2.5 GHz and a maximum turbo frequency of 3.3 GHz. The server features two processors, each of which has 12 cores, resulting in a total of 24 cores. This makes the server ideal for running applications that require high processing power, such as virtual machines and data analysis tools.
The server also comes with 64GB of DDR4 memory. DDR4 memory is the latest type of memory technology available in the market, providing faster data transfer rates and lower power consumption compared to its predecessor, DDR3. With 64GB of memory, the HPE ProLiant DL360 Gen9 can handle large data sets and run multiple applications simultaneously without slowing down.
The server has eight small form factor (SFF) hard disk drive (HDD) bays. SFF HDDs are smaller and lighter than standard HDDs, making them ideal for use in compact servers such as the HPE ProLiant DL360 Gen9. The server also comes with two 500W power supplies, which provide redundancy in case of power failure.
Features
The HPE ProLiant DL360 Gen9 server is packed with features that make it a versatile and reliable computing solution. One of its key features is its modular design, which allows for easy upgrading and maintenance. The server has a tool-less chassis design, making it easy to add or remove components without the need for tools. This feature saves time and reduces the risk of damage to the server.
Another notable feature of the HPE ProLiant DL360 Gen9 server is its advanced security features. The server comes with HPE iLO (Integrated Lights-Out) technology, which provides remote management and monitoring capabilities. HPE iLO also includes features such as secure boot and firmware validation, which ensure that the server is protected against security threats.
The server also comes with HPE Smart Array technology, which provides RAID (Redundant Array of Independent Disks) functionality. RAID allows multiple hard drives to be used together to provide data redundancy and improved performance. HPE Smart Array also includes features such as automatic data migration and performance tuning, which optimize the performance of the server’s storage subsystem.
Performance
The HPE ProLiant DL360 Gen9 server delivers outstanding performance, making it ideal for use in demanding computing environments. The server’s two processors and 64GB of DDR4 memory provide the processing power and memory capacity needed to run multiple applications simultaneously. The server’s eight SFF HDD bays provide ample storage space, while its two 500W power supplies provide redundancy and ensure that the server is always up and running.
The server’s advanced features also contribute to its performance. HPE iLO technology allows for remote management and monitoring, reducing downtime and ensuring that the server is always available. HPE Smart Array technology provides RAID functionality, improving the performance of the server’s storage subsystem.
Svmmary,The HPE ProLiant DL360 Gen9 is a powerful and reliable server that is ideal for businesses and organizations that require high-performance computing solutions. It is powered by two Intel Xeon E5-2680 v3 processors and has 64GB of DDR4 memory and eight SFF HDD bays. The server also comes with two 500W power supplies.
Key Information for this HPE 784657-S01
- Manufacturer: HPE
- Model Number or SKU # 784657-S01
- Product Type: Server
- Product Name: Proliant Dl360 Gen9 – 1u Rack Mountable Server ( S-buy)
Processor & Chipset Information of Xeon 2.5GHz
- Cpu : Intel Xeon E5-2680v3 / 2.5 Ghz
- Max Turbo Speed : 3.3 Ghz
- Number Of Cores : 12-core
- Cpu Qty : 2
- Max Cpu Qty : 2
- Cpu Upgradability : Upgradable
- Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
- Cpu Socket : Fclga2011-v3 Socket
Cache Memory for Server
- Installed Size : L3 Cache – 60 Mb
- Cache Per Processor : 30 Mb
Ram
- Installed Size : 64 Gb / 768 Gb (max)
- Technology : Ddr4 Sdram – Advanced Ecc
- Effective Memory Speed : 2133 Mhz
- Rated Memory Speed : 2133 Mhz
- Memory Specification Compliance : Pc4-17000
- Form Factor : Dimm 288-pin
- Slots : 24 (total) / 20 (empty)
- Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
- Configuration Features : 4 X 16 Gb
- Ram Supported : 3 Tb Load-reduced – Advanced Ecc 768 Gb Registered – Advanced Ecc
Storage
- Hard Drive :
- Type : Ssd – Hot-swap
- Capacity : 2 X 80 Gb
- Interface Type : Sata 6gb/s
- Features : Value Endurance
- Optical Drive : None
Storage Controllers
- Storage Controller Name : Smart Array P440ar
- Buffer Size : 2 Gb
- Disk Drive : 12gb/s Sas / 6gb/s Sata
- Sas Port Link Rate : 12gb/s Per Physical Link Supported
- Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)
- Physical Drives : Up To 26 Drives
- Logical Drives Supported : Up To 64 Logical Drives
- Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Display & Graphics Controllers
- Type : Integrated
- Graphics Processor : Matrox G200
- Video Interfaces : Vga
Network & Communication
- Ethernet Controller : Hp Ethernet 1gb 4-port 331i Adapter
- Network Processor : Broadcom Bcm5719 Chipset
- Ethernet Ports : 4 X Gigabit Ethernetduplex Theoretical Bandwidth
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Integrated Lights-out 4
- Remote Management Controller : Rj-45 (two)
- Features : Wake On Lan (wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion/ Connectivity
- Expansion Bays Total (free) :
- 1 (total) / 1 (free) X External
- 8 (total) / 6 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free)
- 24 (total) / 20 (free) X Dimm 288-pin
- 2 (total) / 0 (free) X Cpu
- 1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
- 1 (total) / 0 (free) X Pcie 3.0 X8 – Low-profile
- 1 (total) / 0 (free) X Flexiblelom
- 1 (total) / 1 (free) X Microsd Card (internal)
Interfaces & Ports
- 1 X Vga
- 1 X Serial
- 8 X Lan (gigabit Ethernet)
- 1 X Hp Ilo
- 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
Miscellaneous
- Included Accessories :
- Hp Easy Install Rail Kit
Features
- Administrator Password
- Power-on Password
- Keyboard Password
- Serial Port I/o Control
- Quicklock
- Uefi Bios
Compliant Standards
- Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Ashrae, Cns 13438
Manufacturer Selling Program
- Hp Smart Buy
Power Description
- Device Type : Power Supply – Hot-plug
- Power Redundancy : Yes
- Power Redundancy Scheme : 1+1
- Installed Qty : 2
- Max Supported Qty : 2
- Nominal Voltage : Ac 120/230 V (50/60 Hz)
- 80 Plus Certification : 80 Plus Platinum
Dimensions & Weight
- Depth : 27.5 Inch
- Width : 17.1 Inch
- Height : 1.7 Inch
- Weight : 27 Lbs
