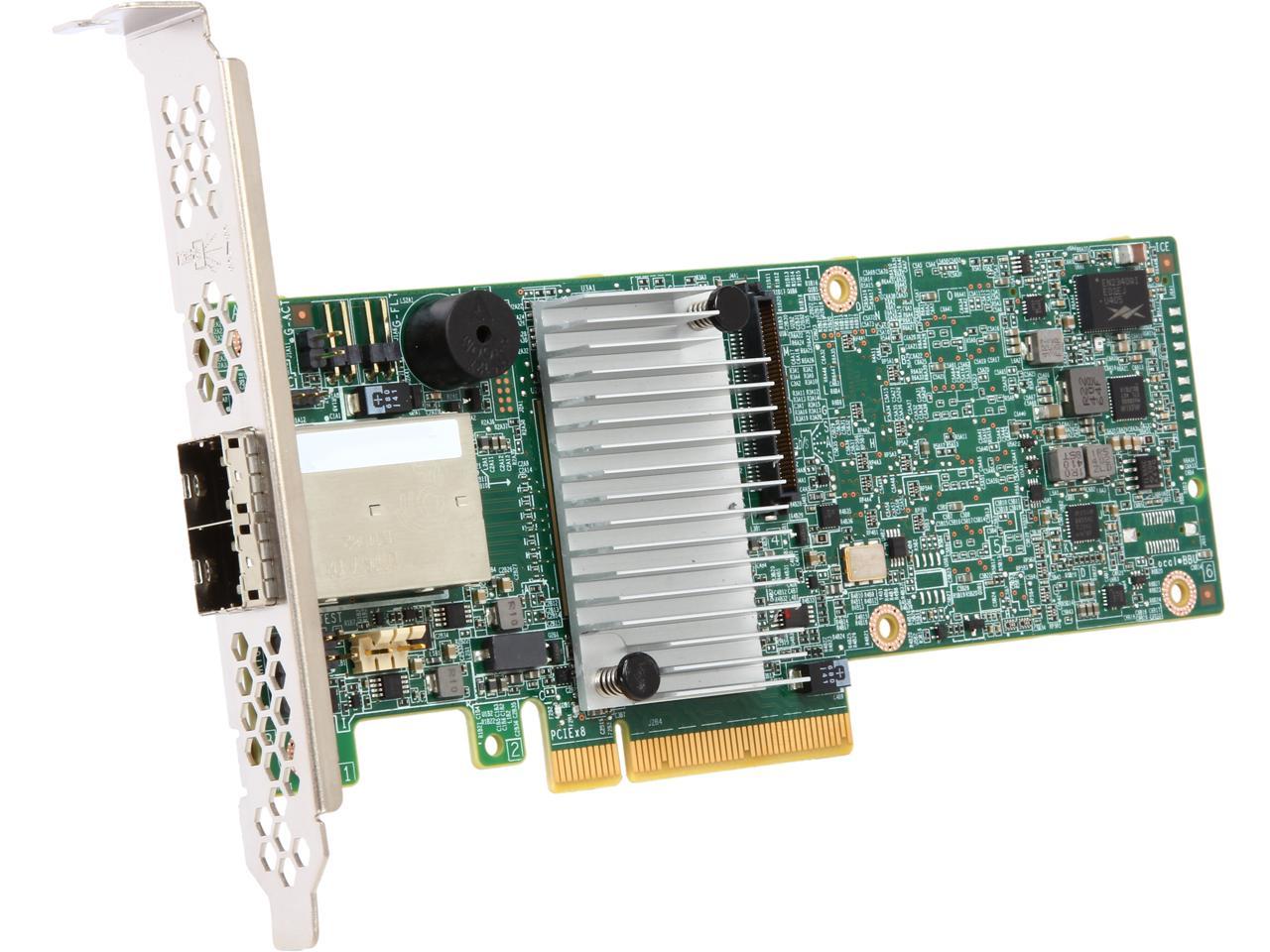

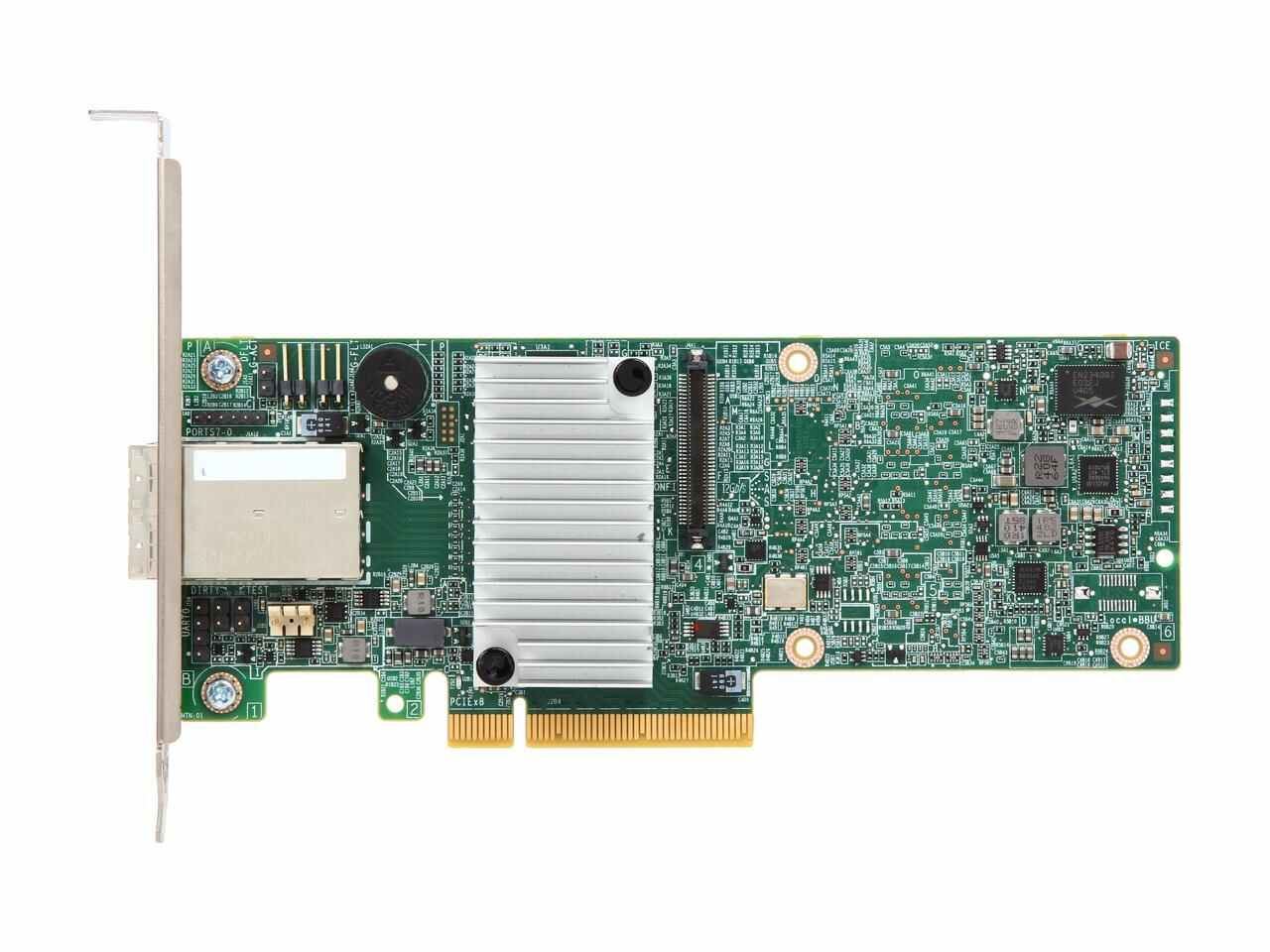

The Broadcom MegaRAID SAS 9380-8e is a high-performance SAS/SATA RAID controller that offers advanced features for data protection and scalability. Here are some of the performance benchmarks for this card:
- Data Transfer Rates: Up to 12Gb/s per port
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
- Maximum Supported Drives: 128
- Cache Memory: 1GB DDR3
- Host Bus Type: PCI Express 3.0 x8
- RAID Processor: LSISAS3108 Dual Core ROC
- Operating System Compatibility: Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, and Citrix XenServer
- Performance: Up to 700,000 IOPS (Input/Output Operations Per Second) and 6,600 MB/s sustained data transfer rates (depending on the system configuration and workload)
The MegaRAID SAS 9380-8e RAID controller is designed for high-performance storage environments that require robust data protection and scalability. With its advanced RAID features and fast data transfer rates, the controller is capable of delivering high levels of performance for a wide range of storage workloads. Note that actual performance may vary depending on the specific configuration and workload of the system.
Management and Configuration Tools
The Broadcom MegaRAID 9380-8e SAS/SATA RAID controller offers a range of management and configuration tools to help administrators monitor and optimize their storage environments. Here are some of the key tools and features:
Management Software:
- MegaRAID Storage Manager: This is a user-friendly software application that enables administrators to configure, monitor, and maintain the MegaRAID controller and attached storage devices.
- Command Line Interface (CLI): This allows administrators to manage the controller and storage devices from a command-line interface, which is useful for scripting and automating tasks.
- LSI Event Manager: This software tool provides detailed event logging and alerting capabilities, allowing administrators to track system events and proactively address issues.
Configuration Features:
- Online Capacity Expansion (OCE): This feature allows administrators to expand the capacity of a virtual disk while the system is online, without requiring downtime or data migration.
- Fast Initialization: This feature enables quick initialization of new virtual disks, reducing system downtime and improving overall system performance.
- Background Initialization: This feature enables administrators to initialize new virtual disks in the background, allowing the system to remain online and functional while initialization occurs.
RAID Features:
- RAID levels supported: 0, 1, 5, 6, 10, 50, 60
- Online RAID Level Migration (RLM): This feature allows administrators to change the RAID level of a virtual disk while the system is online, without requiring downtime or data migration.
- Auto Resume: This feature ensures that system rebuilds and consistency checks can automatically resume after an interruption, minimizing downtime and reducing manual intervention.
These tools and features enable administrators to effectively manage and configure the MegaRAID 9380-8e controller and the attached storage devices, and to proactively address issues before they become critical. Note that some of these tools may require additional licensing or installation, so it’s important to check with the manufacturer for the latest details.
Operating System Compatibility
The Broadcom MegaRAID SAS 9380-8E is a high-performance RAID controller that is designed to work with a variety of operating systems. Here are the operating systems that are compatible with this RAID controller:
- Microsoft Windows Server 2008 and 2012 (including Hyper-V)
- Red Hat Enterprise Linux and SUSE Linux Enterprise Server
- VMware ESXi and ESX
- Citrix XenServer
- Oracle Linux and Oracle VM
- FreeBSD
General Information
- Brand: Broadcom
- MPN : 9380-8E
- Type: Controller
- Sub-Type: SAS-SATA
Technical Specifications
The Broadcom MegaRAID SAS 9380-8e is a high-performance RAID controller designed for use in enterprise storage environments. Here are the technical specifications for this card:
- Data Transfer Rate: 12 Gb/s per port
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
- SAS/SATA Connectors: 8 external ports (SFF-8644)
- Cache Memory: 1GB DDRIII
- Host Bus Type: PCI Express 3.0 x8
- Operating System Compatibility: Windows Server 2003/2008, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESX/ESXi, Solaris, FreeBSD
- Dimensions: 6.6 in x 4.4 in
- Weight: 1 lb
The Broadcom MegaRAID SAS 9380-8e is a plug-in card that supports both SAS and SATA devices, including hard disk drives and solid-state drives. It offers advanced RAID features such as hot spares, automatic rebuilds, and online capacity expansion to maximize system uptime and minimize maintenance costs. With its fast data transfer rates and high port density, the 9380-8e is ideal for large-scale data center deployments that demand reliable, high-performance storage solutions.
