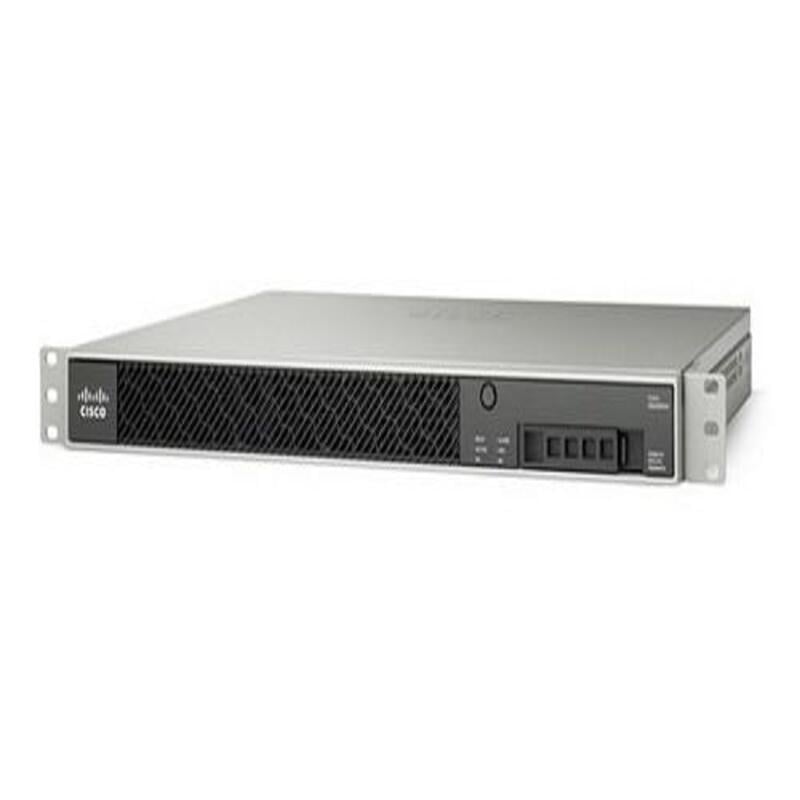

ASA5515-FPWR-K9 Cisco ASA 5515-X Firewall Appliance Factory New

High-Performance

Cisco is a leading provider of network security solutions, offering a range of products and services to help protect networks from threats such as viruses, malware, and cyber attacks. Cisco's network security offerings are designed to provide high performance and comprehensive protection for enterprise, service provider, and small business networks.

Some of the key features of Cisco's network security products and services include:

• Firewall protection: Cisco offers a range of firewall products, including hardware appliances, software solutions, and cloud-based offerings, to help protect networks from external threats.
• Intrusion prevention: Cisco's intrusion prevention systems (IPS) use advanced algorithms to detect and block attacks in real-time, helping to protect networks from malware, worms, and other types of threats.
• Content security: Cisco offers a range of content security products and services, including web security, email security, and cloud security solutions, to help protect networks from threats such as spam, phishing, and malware.
• Network access control: Cisco's network access control (NAC) solutions help to ensure that only authorized users and devices are allowed access to the network, helping to prevent unauthorized access and improve network security.
• VPN: Cisco's virtual private network (VPN) solutions provide secure, encrypted connections over the internet, helping to protect data and ensure privacy.

Troubleshooting Common Issues

Here are some common issues that can arise with the ASA5515-FPWR-K9 Cisco ASA 5515-X Security Appliance and some troubleshooting steps to address them:

• Connectivity issues: If the appliance is not able to establish a connection to the network or Internet, verify that the cables are properly connected and that the configuration settings are correct. Also, check if there are any issues with the network infrastructure, such as switches or routers.
• Performance issues: If the appliance is experiencing slow performance, check the system resources, such as CPU and memory usage. Also, check if there are any security policies that are causing excessive traffic filtering or if there are any bandwidth limitations that need to be adjusted.
• Configuration issues: If there are issues with the configuration of the appliance, check the configuration settings to ensure they are correct. Also, verify that the firmware and software versions are up to date.
• VPN issues: If there are issues with the VPN connections, verify the VPN settings, such as the authentication and encryption settings. Also, check if there are any firewall rules or NAT settings that may be interfering with the VPN traffic.
• Intrusion Prevention System (IPS) issues: If there are issues with the IPS, verify that the IPS configuration settings are correct. Also, check if there are any signature updates or patches that need to be applied.
• Content filtering issues: If there are issues with content filtering, verify that the content filtering settings are correct. Also, check if there are any issues with the web filtering databases or if there are any issues with the SSL decryption settings.
• Authentication issues: If there are issues with user authentication, verify that the authentication settings are correct. Also, check if there are any issues with the user database or if there are any issues with the authentication protocols.

Centralized Management

The ASA5515-FPWR-K9 Cisco ASA 5515-X Security Appliance can be centrally managed through Cisco's Security Manager (CSM) or Cisco Adaptive Security Device Manager (ASDM).

• Cisco Security Manager (CSM): This is a centralized management tool for Cisco security appliances that allows administrators to configure and manage multiple security devices from a single console. With CSM, administrators can define security policies, manage user access, and monitor network traffic and security events across multiple devices.
• Cisco Adaptive Security Device Manager (ASDM): This is a web-based GUI management tool that allows administrators to configure and manage individual Cisco security appliances. With ASDM, administrators can configure security policies, manage user access, and monitor network traffic and security events for a single device.

Both CSM and ASDM offer a range of management and configuration options for the ASA5515-FPWR-K9 Cisco ASA 5515-X Security Appliance, including:

• Security policy management: Administrators can define and configure security policies for the appliance, including firewall rules, VPN configurations, IPS settings, and content filtering.
• User management: Administrators can manage user accounts and access permissions, ensuring that only authorized personnel can access the appliance.
• Network monitoring: Administrators can monitor network traffic and security events in real-time, and generate reports on network usage, security threats, and other metrics.
• Firmware upgrades: Administrators can upgrade the appliance firmware using CSM or ASDM, ensuring that the device is always up-to-date with the latest security features and bug fixes.

General Information about this Cisco ASA5515-FPWR-K9

• Manufacturer: Cisco
• Part Number or SKU# ASA5515-FPWR-K9
• Product Line: ASA
• Product Series: 5500
• Product Type: Network Security/Firewall Appliance

Technical Information for Firewall Appliance

• Total Number of Ports 6
• Compatible Rack Unit 1U
• Ethernet Technology: Gigabit Ethernet
• Network Standard: 10/100/1000Base-T

Interfaces / Ports of Ethernet Security Appliance

• DSL Port No
• USB Yes
• Management Port Yes
• Number of Network (RJ-45) Ports 6

Network & Communication of 6 Ports Firewall Appliance

• Form Factor : Rack-mountable
• Connectivity Technology : Wired
• Status Indicators :Active, Alarm, HDD activity, Power
• Features :Firewall protection, VLAN support, VPN support

Virtualization

• 250 x IPsec VPN Peers
• 2 x Premium AnyConnect VPN Peers
• 250000 x Concurrent Connections
• 15000 x New Connections/Second
• 100 x Virtual Interfaces (VLANs)
• 2 x Security Contexts
• Firewall Protection Antivirus
• Firewall Protection Anti-spyware
• Firewall Protection Intrusion Prevention
• Firewall Protection Remote Access Authentication
• Firewall Protection Access Control
• Firewall Protection Content Filtering
• Firewall Protection Application Layer Filtering
• Firewall Protection Worm Scanning
• Firewall Protection Malware Protection
• Firewall Protection Deep Inspection Firewall
• Encryption Standard 3DES
• Encryption Standard AES
• Encryption Standard DES

Software

• Type :Drivers & Utilities
• Power Device
• Type :Internal power supply
• Installed Qty :1
• Max Supported Qty :1
• Nominal Voltage :AC 120/230 V
• Frequency Required :50/60 hertz

Input Voltage

• 120 Voltage AC 50 Hz
• 230 Voltage AC 60 Hz

Memory

• Standard Memory: 8GB
• Flash Memory: 8GB

Expansion Slots

• Number of Total Expansion Slots 1
• Expansion Slots :1 (total) / 1 (free) x expansion slot
• Interface Provided
• Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x management – RJ-45, 2 x USB 2.0 – Type A, 6 x 1000Base-T – RJ-45

Management & Protocols

• Manageable Yes
• Memory:
• Standard Memory 8 GB
• Flash Memory 8 GB
• Power Description:
• Input Voltage 120 V AC
• Input Voltage 230 V AC
• Power Source Power Supply

Compliant Standards

• ANSI C63.4-2009 , C-Tick , CAN/CSA C22.2 No. 60950-1-07 , CISPR 22 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC Part 15 B Class A , ICES-003 , IEC 60950-1 , UL 60950-1 , VCCI

Dimensions & Weight

• Height: 1.7 Inch
• Width: 16.7 Inch
• Depth: 15.6 Inch
• Weight (Approximate): 13.39 LBS

Miscellaneous

• Height (Rack Units) :1
• Encryption Algorithm :DES, Triple DES
