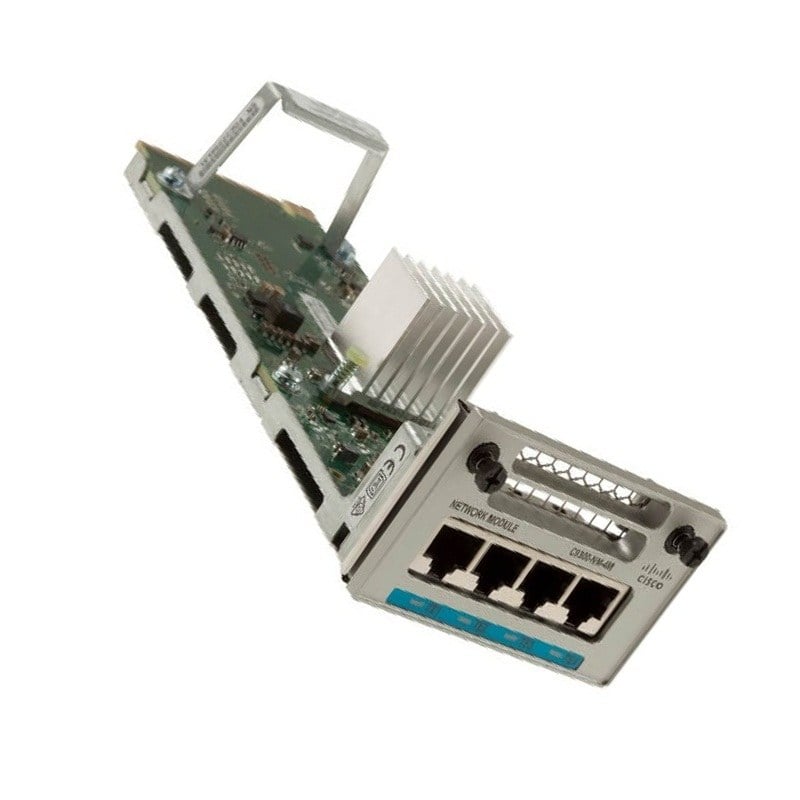

Overview of the C9300-NM-4M Catalyst 9300 4 Ports 10 GBPS Network Module
The C9300-NM-4M Catalyst 9300 Network Module is a crucial component in data networking, designed to enhance the capabilities of the Catalyst 9300 series. This module provides four ports with a remarkable 10 Gigabytes Per Second (GBPS) speed, making it an ideal solution for organizations with high-performance networking requirements. In this comprehensive guide, we’ll delve into the key features, specifications, and applications of the C9300-NM-4M Network Module.
Key Features of C9300-NM-4M Cisco Catalyst 10 Gigabit Expansion Module
- Four 10GBPS Ports: The standout feature of the C9300-NM-4M is its 4 ports Module, each capable of delivering data at a speed of 10 Gigabytes Per Second. This high-speed connectivity ensures efficient data transfer and supports the demands of modern networking applications.
- Designed for Catalyst 9300 Series: This network module is specifically designed to integrate seamlessly with the Catalyst 9300 series, a popular line of switches known for their advanced features and reliability. The compatibility ensures optimal performance and easy integration into existing network infrastructures.
- Wired Plug-in Expansion Module: The C9300-NM-4M is a wired plug-in expansion module, simplifying the installation process. Users can effortlessly plug it into the expansion slots of Catalyst 9300 switches, expanding their networking capabilities without the need for complex configurations.
- Expansion Slots: With four expansion slots, this network module provides flexibility for future upgrades. Organizations can scale their network infrastructure by adding more modules or combining them with other compatible expansion modules to meet evolving business needs.
- Power Connectivity: The C9300-NM-4M features a power connector supporting both 100 and 240-volt AC power. This flexibility ensures compatibility with various power systems, making it suitable for deployment in diverse environments.
Benefits and Advantages
Investing in the C9300-NM-4M Catalyst 9300 Network Module comes with a myriad of benefits, making it a compelling choice for businesses and organizations looking to optimize their network infrastructure.
- Scalability:
- The module’s 4 expansion slots provide a scalable platform that can grow with the evolving needs of the network.
- This scalability ensures a future-proof investment, saving costs on frequent upgrades and replacements.
- High-Speed Data Transfer:
- With 10GBPS ports, the C9300-NM-4M delivers high-speed data transfer, reducing latency and improving overall network performance.
- This is particularly crucial for applications that demand real-time data processing and low latency, such as video streaming and online gaming.
- Reliability and Redundancy:
- The redundancy provided by multiple ports enhances network reliability, reducing the risk of downtime due to a single point of failure.
- Businesses can rely on the C9300-NM-4M for mission-critical operations where uninterrupted network connectivity is imperative.
- Ease of Installation:
- The plug-in design of the module simplifies the installation process, minimizing downtime during upgrades or initial setup.
- IT professionals can appreciate the efficiency and convenience offered by the plug-and-play nature of the C9300-NM-4M.
- Versatility:
- Suitable for a variety of environments, including data centers, enterprise networks, and service provider setups, the C9300-NM-4M showcases its versatility.
- Its compatibility with different power input options adds an extra layer of adaptability to diverse networking scenarios.
Applications and Use Cases
The C9300-NM-4M Catalyst 9300 Network Module finds applications in various scenarios where high-speed and reliable networking are paramount. Some key use cases include:
- Data Centers: Deploying the C9300-NM-4M in data center environments enhances data transfer speeds, critical for applications such as virtualization, cloud computing, and large-scale data processing.
- Enterprise Networks: In enterprise settings, the module supports high-performance networking, catering to the demands of modern businesses with a large number of connected devices.
- Telecommunications: Telecommunication networks benefit from the C9300-NM-4M’s high-speed ports, ensuring seamless communication and data transfer between network nodes.
- Research and Development: Research facilities requiring robust networking capabilities for data-intensive tasks, simulations, and collaborative projects can leverage the module for efficient data transfer.
High
Performance
The C9300-NM-4M Cisco Catalyst 9300 4 Ports Network Module is a high-performance network module that provides a high-density of Gigabit Ethernet ports for the Cisco Catalyst 9300 series switches. It offers the following high-performance features:
- High port density: The module provides four Gigabit Ethernet ports, allowing for a high density of devices to be connected to the switch.
- High-speed data transfer: The module supports 10/100/1000Mbps data transfer speeds, ensuring fast and efficient data transfer.
- Quality of Service (QoS): The module supports QoS, which allows for prioritization of different types of traffic, ensuring that important data is transmitted with minimal delay.
- Energy Efficient Ethernet (EEE): The module supports EEE, which reduces power consumption during periods of low data activity.
- Link Aggregation Control Protocol (LACP): The module supports LACP, which allows for multiple physical links to be grouped together, providing redundancy and increased bandwidth.
- IEEE 802.1Q VLAN tagging: The module supports IEEE 802.1Q VLAN tagging, which allows for the creation of virtual LANs, providing increased security and network segmentation.
- Jumbo frames support: The module supports jumbo frames, which allows for larger packet sizes to be transmitted, increasing the efficiency of data transfer.
- Easy integration: The module is designed to be easily integrated into the Cisco Catalyst 9300 series switches, allowing for quick and easy deployment.
- Scalability: The module can be easily integrated into a larger network, making it easy to add new devices and expand the network as needed.
- Reliability: The module is designed to provide a high level of reliability, ensuring that the network remains up and running even in the event of a failure.
Robust Security and Dynamic Quality
- Advanced security features: The C9300-NM-4M Cisco Catalyst 9300 Expansion Module supports advanced security features such as IEEE 802.1x, MACsec, and FlexVPN, to protect against unauthorized access and ensure data integrity.
- Dynamic Quality of Service (QoS): The module supports dynamic QoS, which allows for the prioritization of different types of traffic, ensuring that important data is transmitted with minimal delay.
- Robust network management: The module supports Cisco DNA Center, which provides a centralized management platform for the entire network.
- Scalability: The module can be easily integrated into a larger network, making it easy to add new devices and expand the network as needed.
- Flexible deployment options: The module can be used as a standalone device or as part of a larger network, providing flexibility for different deployment scenarios.
- High-performance switching: The module provides high-performance switching capabilities, allowing for fast data transfer and minimal network congestion.
- Energy-efficient design: The module is designed to be energy-efficient, reducing power consumption and helping to lower operating costs.
- Compact design: The module has a compact design, making it easy to install and deploy in a variety of environments.
- Support for IPv6: The module supports IPv6, allowing for the deployment of IPv6-enabled devices and services.
- Firmware upgrades: The module supports firmware upgrades, allowing for easy maintenance and keeping the network up to date with the latest features and security enhancements.
Security Features
In the context of data networking, security is paramount. The C9300-NM-4M includes specific security features to safeguard the network from potential threats. These features may include encryption protocols, access controls, and other measures to protect sensitive data.
General Information of the Cisco C9300-NM-4M Network Expansion Module
- Manufacturer: Cisco
- Product Line: Catalyst
- Product Series: 9300
- Part Number/SKU# C9300-NM-4M
- Product Type: Expansion Module
Technical Details for 10GBPS Module
- Total Number of Ports: 4
- Application/Usage: Data Networking
- Form Factor: Plug-in module
I/O Expansions of Expansion Module
- Number of Total Expansion Slots: 4
Networking Specifications
- Connectivity Technology: Wired
- Data Link Protocol: 10 Gigabit Ethernet
- Data Transfer Rate: 10 GBPS
Connectors and Cabling Options
- 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
- Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling
- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
- SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
- SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)
- QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber)
- QSFP+ connector
- SFP+ connector
- Cisco StackWise stacking ports: Copper-based Cisco StackWise cabling
- Cisco StackPower: Cisco proprietary power stacking cables
- Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
Safety Certifications
- UL 60950-1
- CAN/CSA-C222.2 No. 60950-1
- EN 60950-1
- IEC 60950-1
- AS/NZS 60950.1
- IEEE 802.3
Miscellaneous
- Device Compatibility: Cisco Catalyst 9300 Series Switches
Finally, the C9300-NM-4M Catalyst 9300 Network Module stands as a powerful solution for organizations seeking to enhance their network infrastructure. With four high-speed ports, seamless integration with Catalyst 9300 switches, and a straightforward installation process, this network module is well-suited for a range of applications across different industries. As technology continues to evolve, having a reliable and scalable networking solution like the C9300-NM-4M becomes increasingly essential for meeting the demands of modern connectivity.
