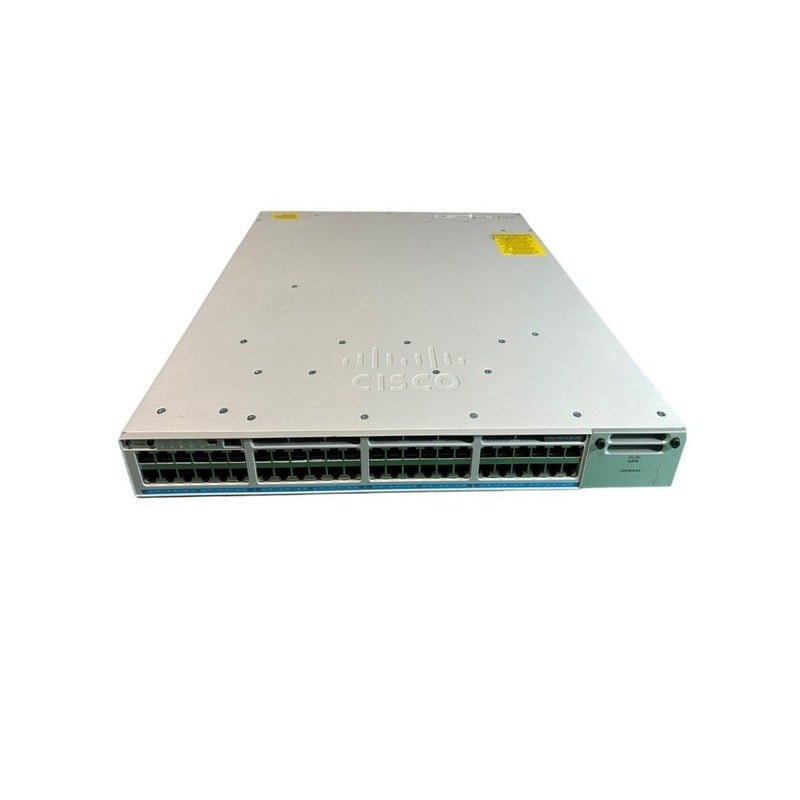

Product Overview for the Cisco C9300X-48TX-E Rack-mountable Switch
The Cisco C9300X-48TX-E Catalyst 9300X is a powerful and versatile network switch designed for modern enterprise networking needs. The Cisco C9300X-48TX-E Catalyst 9300X is part of Cisco’s
Catalyst 9000 Series, which is designed to address the evolving needs of modern networks. This particular model is equipped with features that make it a top choice for businesses and organizations that require high-performance and reliable networking solutions.
Managed Switch Capabilities
A managed switch, like the Cisco C9300X-48TX-E, provides network administrators with the ability to configure, monitor, and optimize their network. Here’s how its managed switch capabilities can be advantageous:
Network Visibility and Control
With a managed switch, you can gain deep insights into your network. This
48-port switch allows you to monitor traffic, track device connections, and detect network issues. Having this level of visibility is crucial for maintaining a healthy network environment.
Quality of Service
The Cisco C9300X-48TX-E Catalyst 9300X supports Quality of Service (QoS) settings, which enable you to prioritize certain types of traffic over others. This is especially important for businesses that rely on voice and video communication or any application that requires a high level of performance.
Security
Network security is a top concern for all businesses. This managed switch provides security features such as Access Control Lists (ACLs) and port security to restrict unauthorized access and protect your network from potential threats.
Remote Management
Managing your network remotely can be a game-changer, especially for businesses with multiple locations or for IT professionals who need to troubleshoot issues without being physically present. The Cisco C9300X-48TX-E allows for remote management, making it convenient to maintain your network from anywhere.
Key Features
The Cisco C9300X-48TX-E Catalyst 9300X comes with a range of features that make it a top choice for network administrators. Let’s take a closer look at these features:
- Managed Network Essentials: The switch is part of Cisco’s Catalyst series, known for its high-quality managed networking solutions. The “Network Essentials” label means it offers essential management features and capabilities for controlling your network effectively.
- 10 Gigabit Ethernet: This switch supports 10 Gigabit Ethernet (10 GbE) technology, allowing for high-speed data transmission, ideal for bandwidth-intensive tasks such as data center applications, video streaming, and large file transfers.
- Layer 3 (L3) Support: Layer 3, or the network layer, is crucial for routing and forwarding data between different subnets or VLANs. The support for Layer 3 in this switch means it can handle complex routing tasks in your network.
- 48 Ports: The Cisco C9300X-48TX-E offers 48 ports, providing ample connectivity options for your devices, servers, and workstations.
- Multi-Speed Ports: The switch offers a versatile range of speeds with 100/1000/2.5g/5g/10GBase-T ports. This means it can adapt to a variety of devices and applications, whether they require high-speed connectivity or operate at a lower data rate.
- Rack-Mountable: Designed to be rack-mounted, this switch fits seamlessly into standard network rack configurations, making it suitable for data center environments.
Managed Network Essentials
The Cisco C9300X-48TX-E Catalyst 9300X is a part of the Catalyst series, which is known for its extensive management capabilities. Managed switches like this one offer numerous benefits:
- Centralized Control: A managed switch allows network administrators to have centralized control over the network. This means you can configure, monitor, and manage all connected devices from a single point.
- Security: Managed switches provide better security features compared to unmanaged switches. You can implement features like VLANs, access control lists (ACLs), and port security to protect your network from unauthorized access and potential threats.
- Quality of Service (QoS): QoS features in managed switches enable you to prioritize traffic, ensuring that critical applications get the necessary bandwidth. This is crucial for applications like voice and video conferencing that require low latency and high throughput.
- Scalability: As your network grows, a managed switch can accommodate additional devices and configurations. This scalability is vital for expanding businesses and evolving network needs.
10 Gigabit Ethernet Support
The Cisco C9300X-48TX-E Catalyst 9300X is designed to support 10 Gigabit Ethernet (10 GbE). Let’s explore why this is a significant advantage for modern networks:
- High Data Throughput: 10 GbE provides data rates that are ten times faster than traditional Gigabit Ethernet (1 GbE). This high throughput is essential for applications that demand large data transfers and low latency.
- Future-Proofing: With the increasing demand for higher bandwidth in today’s networks, 10 GbE is a forward-looking technology. Investing in 10 GbE infrastructure ensures that your network can handle future data requirements.
- Data Center Applications: Data centers, where vast amounts of data are processed and stored, benefit greatly from 10 GbE. It ensures that data can move quickly within the data center environment.
- Virtualization: Virtualized environments, such as those using VMware or Hyper-V, can take full advantage of 10 GbE to support multiple virtual machines running concurrently.
Layer 3 Support
Layer 3 (L3) support in a network switch is crucial for routing data between different network segments. Let’s explore the significance of Layer 3 capabilities in the Cisco C9300X-48TX-E Catalyst 9300X:
- Inter-VLAN Routing: In a network with multiple VLANs (Virtual Local Area Networks), Layer 3 routing is necessary for data to flow between VLANs. This allows you to segment your network logically for security and traffic management.
- Routing Between Subnets: In larger networks, different subnets may be used to organize devices. Layer 3 routing enables communication between devices in different subnets, which is essential for proper network segmentation.
- Dynamic Routing Protocols: L3 switches can support dynamic routing protocols such as OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol), enabling efficient and automated route selection.
- Efficient Traffic Flow: Layer 3 routing optimizes the flow of traffic by making routing decisions based on network addresses. This leads to more efficient data transmission and minimizes network congestion.
Port and Versatility
The Cisco C9300X-48TX-E Catalyst 9300X comes with 48 ports, which provide ample connectivity for various devices and applications. Let’s discuss the versatility of these ports:
- 48 Ports: With 48 ports, this switch can accommodate a significant number of devices, including computers, printers, servers, IP phones, and other networked equipment. This is well-suited for medium to large-sized networks.
- Multi-Speed Ports: The switch offers a range of port speeds, including 100/1000/2.5g/5g/10GBase-T. This versatility means that it can adapt to the requirements of different devices.
- 100/1000/2.5G ports are suitable for devices that don’t require high-speed connections, such as IP phones and printers.
- 5G/10GBase-T ports are ideal for high-performance servers, storage devices, and switches that demand high bandwidth.
- Auto-Negotiation: The switch supports auto-negotiation, a feature that allows devices to communicate and automatically select the best available speed. This simplifies network management and ensures devices operate at their optimal speeds.
- PoE (Power over Ethernet): Some of the ports on this switch may support PoE, which allows you to power devices like IP phones, security cameras, and access points directly through the Ethernet cable. This reduces the need for separate power sources and simplifies cabling.
Rack-Mountable Design
The Cisco C9300X-48TX-E Catalyst 9300X is designed to be rack-mounted. This form factor offers several advantages for network deployment:
- Space Efficiency: Rack-mounted switches are designed to fit into standard network racks, which are commonly used in data centers and server rooms. This efficient use of space helps keep your networking infrastructure organized and compact.
- Cooling and Ventilation: Rack-mounted switches are usually designed to maximize airflow, ensuring proper cooling. This is critical for preventing overheating and maintaining the switch’s performance and reliability.
- Scalability: Rack-mounted switches are modular and allow for easy expansion of your network. As your network grows, you can add additional switches to your rack without a major overhaul of your infrastructure.
Use Cases
The Cisco C9300X-48TX-E Catalyst 9300X, with its rich set of features and capabilities, is suitable for a wide range of use cases:
- Enterprise Networks: This switch is an excellent choice for medium to large enterprises. It can handle the demands of a growing network while providing security and manageability.
- Data Centers: In data center environments, where high data throughput is critical, the 10 GbE support and Layer 3 capabilities of this switch are highly valuable.
- Multi-Tenant Environments: For businesses or organizations that require network segmentation and isolation between different departments or tenants, the Layer 3 capabilities come in handy.
- Education and Healthcare: Institutions like schools, universities, and healthcare facilities can benefit from this switch’s scalability and PoE support for devices like IP phones and security cameras.
- Hospitality: The versatility of port speeds is ideal for the hospitality industry, supporting both guest and back-end services like Wi-Fi access points and reservation systems.
- Small and Medium-Sized Businesses: While this switch may offer more capacity and features than some smaller businesses require, it provides room for growth and future-proofing.
Benefits of the Cisco C9300X-48TX-E Catalyst 9300X
Now that we’ve explored the features and use cases of the Cisco C9300X-48TX-E Catalyst 9300X, let’s summarize the key benefits of this network switch:
- High Performance: The switch offers 10 GbE support, which is essential for high-performance applications and data-intensive tasks.
- Network Management: As a managed switch, it provides centralized control and security features to ensure your network operates smoothly and securely.
- Scalability: With 48 ports and rack-mountable design, it’s easy to scale your network infrastructure as your organization grows.
- Layer 3 Routing: The Layer 3 capabilities allow for efficient routing, network segmentation, and dynamic routing protocols.
- Versatility: The switch’s multi-speed ports and PoE support make it adaptable to various devices and applications.
- Rack-Mountable: Its rack-mountable design optimizes space, cooling, and cable management.
- Future-Proofing: The switch is designed to support future network demands, ensuring that your investment remains relevant over time.
Main Specifications about this Cisco C9300X-48TX-E
- Manufacturer: Cisco
- Part Number or SKU# C9300X-48TX-E
- Product Type: Managed Switch
- Enclosure Type: Rack-mountable
Technical Information of the 48 Ports Switch
- Total Number of Ports: 48 Ports
- IPv4 Routing Table Entries: 39000
- Multicast Routes: 8000
- QoS Scale Entries: 4000
- ACL Scale Entries: 8000
- IPv6 Routing Table Entries: 19500
- Packet Buffer Size: 16 MB
- Expansion Slots: 1 (total) / 1 (free) x expansion slot
- FNF Entries: 64000
- VLAN IDs: 4094
- Switched Virtual Interfaces (SVIs): 1000
- Routing Protocol: RIP, RIP-1, RIP-2, VRRP, PIM-SM, Static IP Routing, GRE, PIM-SSM, Policy-based Routing (PBR), RIPng, MSTP, STP, LISP
- Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG
Performance
- Switching Capacity: 2000 Gbps
- Switching Capacity with Stacking: 3000 Gbps
- Forwarding Rate: 1488 Mpps
- Forwarding Rate with Stacking: 2232 Mpps
In summary, the Cisco C9300X-48TX-E Catalyst 9300X is a robust and versatile network switch that meets the demands of modern enterprise networking. With features like 10 Gigabit Ethernet, Layer 3 routing, multi-speed ports, and a rack-mountable design, it offers a comprehensive solution for various networking needs. Its scalability, manageability, and future-proofing capabilities make it an excellent investment for medium to large enterprises, data centers, and organizations with diverse connectivity requirements.
As technology continues to advance and networking demands grow, having a switch that can adapt and scale is essential. The Cisco C9300X-48TX-E Catalyst 9300X is designed to address these challenges and ensure that your network infrastructure remains reliable and efficient for years to come. If you’re in need of a powerful and feature-rich network switch, the Cisco C9300X-48TX-E Catalyst 9300X should be at the top of your consideration list.
