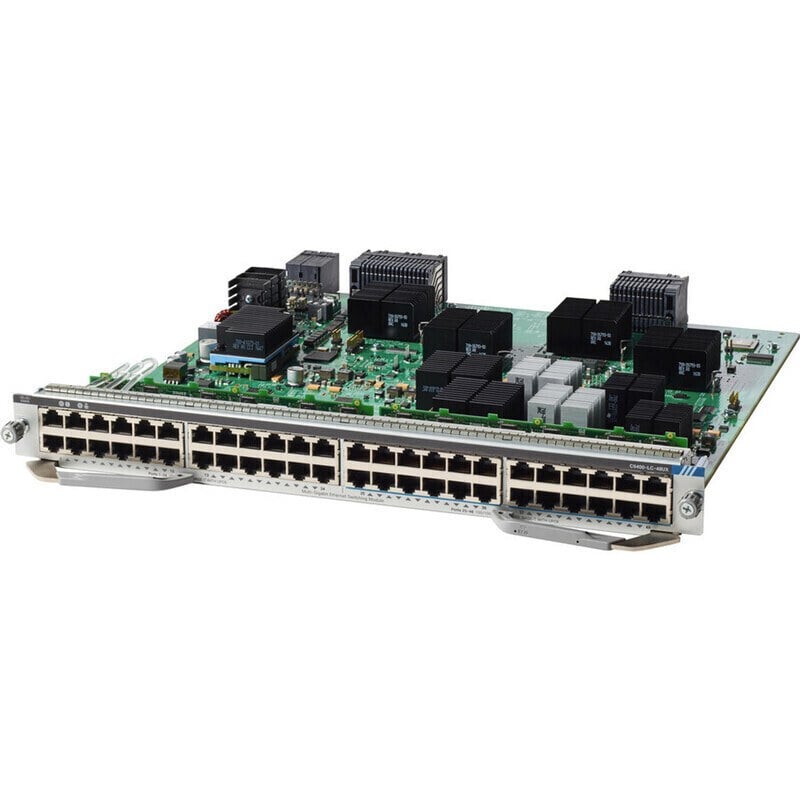

More Information for the Cisco C9400-LC-48UX 48 Ports Switch
The Cisco C9400-LC-48UX is a crucial component of the Catalyst 9400 Series, designed to enhance network efficiency and performance. This line card serves as a switch with 48 ports, operating as a plug-in module. In this comprehensive guide, we’ll delve into the features, specifications, and benefits of the Cisco C9400-LC-48UX, shedding light on its capabilities and how it contributes to building a robust network infrastructure.
Overview of Cisco Catalyst 9400 Series
The Cisco Catalyst 9400 Series is a family of modular enterprise switches that offer high performance, scalability, and advanced security features. These switches are designed to meet the evolving needs of modern networks, providing a foundation for digital transformation and supporting the latest technologies.
Introduction to Line Cards
A line card, in networking terms, is a hardware component that interfaces with network cables to transmit and receive data. Line cards play a pivotal role in switches, enabling them to connect multiple devices within a network. The Cisco C9400-LC-48UX is a specific type of line card designed for the Catalyst 9400 Series.
Key Features of Cisco C9400-LC-48UX
- Line Card Functionality: The C9400-LC-48UX operates as a line card, serving as a crucial element in the Catalyst 9400 Series. Line cards are modules that plug into the switch chassis and provide additional ports and capabilities.
- 48 Ports: One of the standout features of this line card is its 48 ports. These ports are essential for connecting various devices, such as computers, servers, and other networking equipment. The abundance of ports contributes to the switch’s ability to handle large volumes of data traffic.
- Plug-in Module: Being a plug-in module means that the C9400-LC-48UX can be easily installed or replaced within the Catalyst 9400 Series switch. This modularity enhances the switch’s flexibility, allowing users to customize and expand their network infrastructure according to their specific requirements.
Technical Specifications
- Switch Type: The Cisco C9400-LC-48UX operates as a switch, serving as a central networking device that connects various devices and manages data traffic efficiently.
- Port Density: With 48 ports, this line card offers high port density, making it suitable for deployment in environments where numerous devices need to be connected.
- Compatibility: The C9400-LC-48UX is specifically designed for use with the Catalyst 9400 Series switches, ensuring seamless integration and optimal performance.
- Data Transfer Speed: The line card supports high-speed data transfer, enabling swift and reliable communication between connected devices.
- Power over Ethernet (PoE) Support: The C9400-LC-48UX may provide Power over Ethernet (PoE) functionality, allowing it to deliver power to connected devices such as IP cameras and VoIP phones through the Ethernet cables.
Benefits of Using Cisco C9400-LC-48UX
- Scalability: The 48 ports on the C9400-LC-48UX ensure scalability, making it suitable for networks that may expand in the future. Additional line cards can be added to accommodate growing connectivity needs.
- Modular Design: The plug-in module design of the C9400-LC-48UX enhances flexibility, allowing for easy upgrades or replacements without disrupting the entire network infrastructure.
- High Performance: Leveraging the capabilities of the Catalyst 9400 Series, the C9400-LC-48UX delivers high performance, ensuring efficient data transfer and network operation.
- Simplified Management: The line card is designed to be easily managed through Cisco’s network management solutions, providing administrators with comprehensive control over the network.
Use Cases
- Enterprise Networks: The Cisco C9400-LC-48UX is well-suited for large enterprise networks where a high number of devices need to be connected and managed efficiently.
- Data Centers: In data center environments, where high-performance networking is critical, the C9400-LC-48UX can play a crucial role in ensuring seamless connectivity and data transfer.
- Campus Networks: The line card is also ideal for campus networks, providing the necessary port density and scalability to support the diverse connectivity requirements of educational institutions or corporate campuses.
Power over Ethernet Capabilities of 48 Ports Expansion Module
The C9400-LC-48UX Cisco 48 Ports UPoe 10GE Expansion Module is a line card module designed for use with the Cisco Catalyst 9400 Series switches. This module supports Power over Ethernet (PoE) capabilities, specifically the Universal Power over Ethernet (UPoE) standard.
UPoE is an extension of the standard PoE technology and provides up to 60 watts of power per port, which is more than enough to power devices such as IP phones, wireless access points, and video cameras. The C9400-LC-48UX module can deliver UPoE to all 48 ports, providing a total power budget of up to 2,940 watts.
It is important to note that the C9400-LC-48UX module requires an external power supply to deliver UPoE to connected devices. The power supply must be capable of delivering the necessary power to support all connected devices. Additionally, the module supports the IEEE 802.3at PoE+ standard, which provides up to 30 watts of power per port.
Quality of Service (QoS) Features and Configuration
The Cisco C9400-LC-48UX is a 48-port expansion module that provides high-speed connectivity for network devices. It supports both Ethernet and PoE (Power over Ethernet) and can be used to expand the connectivity of a Cisco Catalyst 9400 Series Switch.
In terms of Quality of Service (QoS) features, the C9400-LC-48UX supports several QoS mechanisms to help ensure that network traffic is prioritized appropriately. These QoS mechanisms include:
- Classification: The C9400-LC-48UX supports classification based on Layer 2 and Layer 3 information, such as MAC addresses, IP addresses, and protocols. This allows network administrators to identify and prioritize different types of traffic.
- Policing: The C9400-LC-48UX can enforce policing policies to limit the amount of traffic that is sent or received by a particular device or group of devices.
- Shaping: The C9400-LC-48UX can shape traffic to ensure that it conforms to specific bandwidth limits.
- Marking: The C9400-LC-48UX supports the marking of packets based on QoS policies. This allows network administrators to mark packets as high, medium, or low priority based on their content.
- Queuing: The C9400-LC-48UX supports multiple queues per port, which can be used to prioritize different types of traffic. This allows network administrators to ensure that high-priority traffic is sent before lower-priority traffic.
In terms of configuration, the C9400-LC-48UX can be configured using Cisco IOS software. The following are the basic steps to configure QoS on the C9400-LC-48UX:
- Enable QoS on the switch using the “mls qos” command.
- Configure QoS policies using the “policy-map” command. These policies can be used to classify, mark, and prioritize traffic.
- Apply the QoS policies to the appropriate interfaces using the “service-policy” command.
- Verify the QoS configuration using the “show policy-map interface” command.
Security Features and Configuration
The Cisco C9400-LC-48UX is a 48-port UPoE (Universal Power over Ethernet) 10GE Expansion Module designed for use with Cisco Catalyst 9400 Series switches. This expansion module supports a variety of security features and configurations that help ensure the safety and integrity of your network. Here are some of the key security features and configurations of the C9400-LC-48UX:
- Access Control Lists (ACLs): The C9400-LC-48UX supports both standard and extended ACLs, which allow you to control traffic flow based on source and destination IP addresses, protocol type, and port number. This helps to prevent unauthorized access to your network and ensures that only authorized traffic is allowed.
- DHCP snooping: This feature allows the switch to monitor DHCP messages on the network and filter out any unauthorized messages, preventing rogue DHCP servers from assigning IP addresses to devices on your network.
- Dynamic ARP Inspection (DAI): DAI validates ARP packets in a network and discards invalid packets. DAI prevents ARP spoofing attacks in the network.
- Port security: You can configure the C9400-LC-48UX to restrict access to a specific port by MAC address, limiting the number of devices that can connect to that port. This helps to prevent unauthorized devices from accessing your network.
- Secure Shell (SSH): SSH is a secure protocol for remote access to network devices. The C9400-LC-48UX supports SSH, allowing you to securely manage the switch from a remote location.
- TACACS+: TACACS+ is a protocol for controlling access to network devices. The C9400-LC-48UX supports TACACS+, allowing you to configure centralized authentication, authorization, and accounting (AAA) for user access to the switch.
- HTTPS: The C9400-LC-48UX supports HTTPS, a secure version of HTTP. HTTPS encrypts all data between the client and server, preventing unauthorized access to sensitive information.
- Secure Boot: Secure Boot is a feature that helps ensure the integrity of the software running on the switch. It checks the digital signature of the software image during the boot process to ensure that it has not been modified.
These are just a few of the many security features and configurations supported by the Cisco C9400-LC-48UX. By properly configuring these features, you can help ensure the safety and security of your network.
General Information about this Cisco C9400-LC-48UX
- Manufacturer: Cisco
- Part Number or SKU# C9400-LC-48UX
- Product Type: Ethernet Switch
- Product Name: Catalyst 9400 Series Line Card 48 Ports Switch
Technical Specifications
- Device Type: Switch with 48 Ports
- Enclosure Type: Plug-in Module
- Subtype: 10 Gigabit Ethernet
- Ports:
- 24 x 100/1000/2.5G/5G/10GBase-T (UPOE)
- 24 x 10/100/1000 (UPOE)
- Power Over Ethernet (PoE): UPOE
- Jumbo Frame Support: 9198 Bytes
- Features:
- Port Aggregation Protocol (PAGP) Support
- Link Aggregation Control Protocol (LACP)
- Energy Efficient Ethernet
- Precision Time Protocol (PTP)
- TrustSec Support
Compliance Standards
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3ad (LACP)
- IEEE 802.1ae
- IEEE 802.1as
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bz
Power Consumption (Operational): 240 Watts
Expansion/Connectivity: Interfaces
- 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE
- 24 x 1000Base-T RJ-45 UPOE
Outline, the Cisco C9400-LC-48UX Catalyst 9400 Series Line Card is a powerful and versatile component that contributes to the success of modern network infrastructures. With its 48 ports, plug-in module design, and compatibility with the Catalyst 9400 Series, this line card offers scalability, high performance, and ease of management. Whether deployed in enterprise networks, data centers, or campus environments, the C9400-LC-48UX plays a pivotal role in ensuring seamless connectivity and efficient data transfer. As technology continues to advance, the Cisco C9400-LC-48UX remains at the forefront, providing a reliable solution for the evolving needs of today’s networks.
