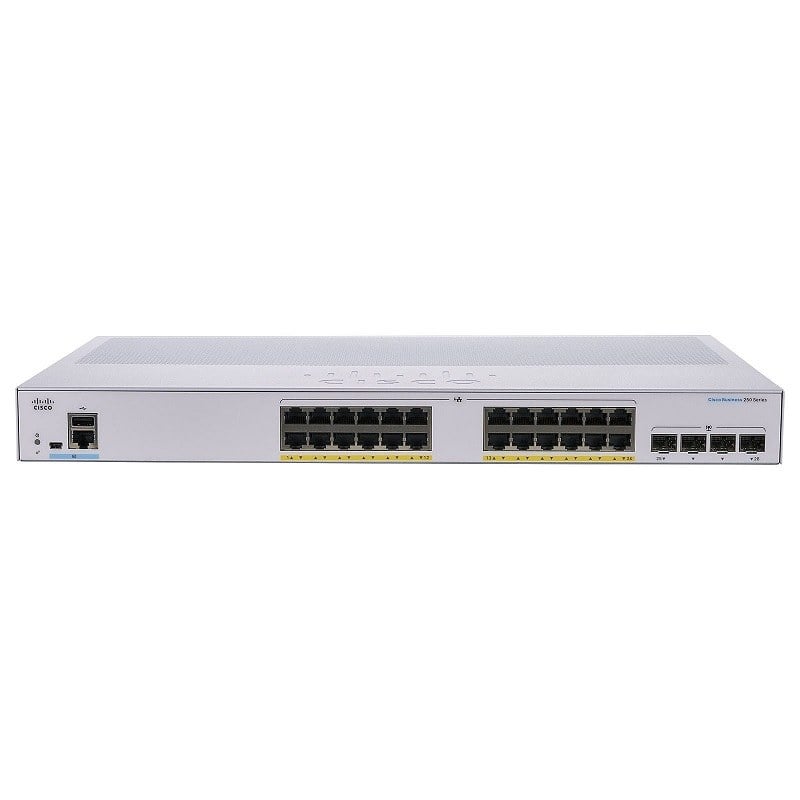

Overview of the Cisco CBS250-24P-4X 24 PoE+ Ports Smart Switch
The CBS250-24P-4X Business 250 Series Ethernet Switch is a cutting-edge networking device designed to meet the demands of modern businesses. With 24 manageable ports, support for 2-layer architecture, and modular capabilities, this 4-slot switch offers a robust solution for efficient data transfer within a network. This description aims to provide a detailed understanding of the key features, functionalities, and benefits of the CBS250-24P-4X, with a particular focus on its 195-watt power over Ethernet (PoE) budget, support for optical fiber and twisted pair Ethernet.
What is the CBS250-24P-4X Business 250 Series Ethernet Switch?
The CBS250-24P-4X is a member of the Business 250 Series of Ethernet switches manufactured by Cisco Systems. It is equipped with 24 ports for connecting various devices such as computers, printers, IP cameras, and access points. This switch supports Layer 2 networking, which enables it to forward data packets based on MAC addresses.
Key Features and Specifications
- Port Configuration: The switch offers 24 ports, which can be used for both Ethernet and Power over Ethernet (PoE) connections.
- PoE Budget: With a 195-watt PoE budget, the switch can power compatible devices such as IP phones, wireless access points, and surveillance cameras through Ethernet cables, eliminating the need for separate power sources.
- Modular Design: The CBS250-24P-4X features a modular design, allowing users to expand its capabilities by adding optional modules for additional connectivity options.
- Optical Fiber and Twisted Pair Support: The switch supports both optical fiber and twisted pair Ethernet connections, providing flexibility in network design and deployment.
- Manageability: It is a manageable switch, meaning users can configure and monitor its settings through a web-based interface or command-line interface (CLI).
Benefits of the CBS250-24P-4X Business 250 Series Ethernet Switch
- Simplified Deployment: With its plug-and-play functionality, the switch can be easily deployed in business networks without the need for extensive configuration.
- Cost Savings: The PoE capability eliminates the need for separate power outlets for connected devices, reducing installation and maintenance costs.
- Scalability: The modular design allows for future expansion, enabling businesses to scale their network infrastructure as needed.
- Reliable Performance: Cisco switches are known for their reliability and performance, ensuring uninterrupted data transmission within the network.
- Enhanced Security: The switch supports advanced security features such as Access Control Lists (ACLs) and VLANs, helping to secure the network against unauthorized access and threats.
Power over Ethernet (PoE) Capability195 Watt PoE Budget
One standout feature of the CBS250-24P-4X is its impressive 195-watt PoE budget. This capability enables the switch to deliver power to connected devices such as IP cameras, VoIP phones, and wireless access points, simplifying the deployment of networked devices without the need for additional power sources.
PoE Efficiency and Management
The PoE functionality of the CBS250-24P-4X ensures efficient power distribution, optimizing energy usage and reducing operational costs. Additionally, the switch provides advanced PoE management features, allowing administrators to monitor power consumption, prioritize critical devices, and troubleshoot potential issues.
Network ConnectivityOptical Fiber Support
The CBS250-24P-4X supports optical fiber connectivity, offering high-speed and reliable data transmission over longer distances. This is particularly beneficial for businesses with expansive office spaces or those requiring secure and fast connections between different parts of a facility.
Twisted Pair Ethernet Support
In addition to optical fiber, the switch supports twisted-pair Ethernet connections, providing compatibility with a wide range of devices. This versatility ensures that businesses can integrate the CBS250-24P-4X seamlessly into their existing network infrastructure.
Security FeaturesAdvanced Security Protocols
Security is a paramount concern in any business network. The CBS250-24P-4X addresses this by incorporating advanced security protocols such as VLAN (Virtual Local Area Network) support, Access Control Lists (ACLs), and secure management options. These features help safeguard sensitive data and prevent unauthorized access.
Secure Remote Management
The switch offers secure remote management capabilities, allowing administrators to monitor and configure the network from a remote location. This is particularly valuable for businesses with multiple locations or those embracing a hybrid work model.
Ease of Use and ManagementIntuitive Web-Based Interface
The CBS250-24P-4X features an intuitive web-based interface, making it user-friendly for administrators. The graphical interface simplifies configuration tasks, reducing the learning curve for those managing the network.
Smart Network Management Tools
Smart network management tools, such as Quality of Service (QoS) settings and network diagnostics, are integrated into the switch. These tools empower administrators to prioritize critical applications, ensure a seamless user experience, and troubleshoot network issues effectively.
Reliability and DurabilityRobust Hardware Design
The CBS250-24P-4X is built with a robust hardware design, enhancing its reliability and durability. This ensures consistent performance even in demanding business environments, contributing to the overall stability of the network.
Fanless Operation
The switch’s fanless operation not only contributes to its reliability but also ensures quiet and energy-efficient functioning. This is particularly advantageous for businesses that require a quiet office environment or have specific energy consumption goals.
Use Cases
- Small to Medium-sized Businesses (SMBs): The CBS250-24P-4X is an ideal networking solution for SMBs looking to establish or upgrade their network infrastructure. Its affordability, ease of use, and PoE capability make it suitable for powering IP phones, wireless access points, and IP cameras in office environments.
- Retail Environments: In retail settings, the switch can be used to connect point-of-sale (POS) systems, security cameras, and wireless terminals, providing a reliable and secure network for transactions and operations.
- Educational Institutions: Schools and colleges can leverage the switch to create a robust network infrastructure to support digital learning initiatives, connect computer labs, and manage IP-based communication systems.
Advanced Security and Network Management Capabilities
The CBS250-24P-4X Cisco Business 250 Smart Switch offers advanced security and network management capabilities to help protect your network from security threats and ensure optimal performance.
One key feature is the built-in Cisco Identity Services Engine (ISE), which allows you to implement network access control (NAC) and ensure that only authorized users and devices can access your network. It also allows for monitoring and controlling of endpoints, and compliance checks.
Additionally, the switch supports advanced security features such as access control lists (ACLs), port security, and DHCP snooping to help protect your network from unauthorized access and malicious attacks.
The switch also has a variety of network management capabilities, including Cisco Smartports, which simplifies switch configuration and deployment, as well as Cisco DNA Center and Meraki compatibility for easy network management and monitoring. It also supports SNMP and Syslog for remote management and monitoring, and Quality of Service (QoS) for prioritizing and managing network traffic.
General Information for the Cisco 24 Ports Manageable Switch
- Manufacturer: Cisco
- Model Number or SKU# CBS250-24P-4X
- Product Series: 250
- Product Name 250 CBS250-24P-4X Ethernet Switch
- Product Type: Ethernet Switch
Interfaces / Ports of CBS250-24P-4X Ethernet Smart Switch
- Total Number of Network Ports: 24
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 10GBase-X
I/O Expansions
- Number of Total Expansion Slots: 4
- Expansion Slot Type: SFP+
- Shared SFP Slot: No
- Number of SFP+ Slots: 4
Network & Communication
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 195 W
- Power Source:
- PoE+
- Power Supply
Finally, the CBS250-24P-4X Business 250 Series Ethernet Switch offers a comprehensive networking solution for businesses seeking reliable performance, scalability, and cost-efficiency. With its advanced features, including PoE support, modular design, and manageability, it addresses the connectivity needs of various industries and applications. By investing in this switch, businesses can enhance their network infrastructure and streamline their operations for improved productivity and competitiveness.
