Description
Technical Specifications of Services Router

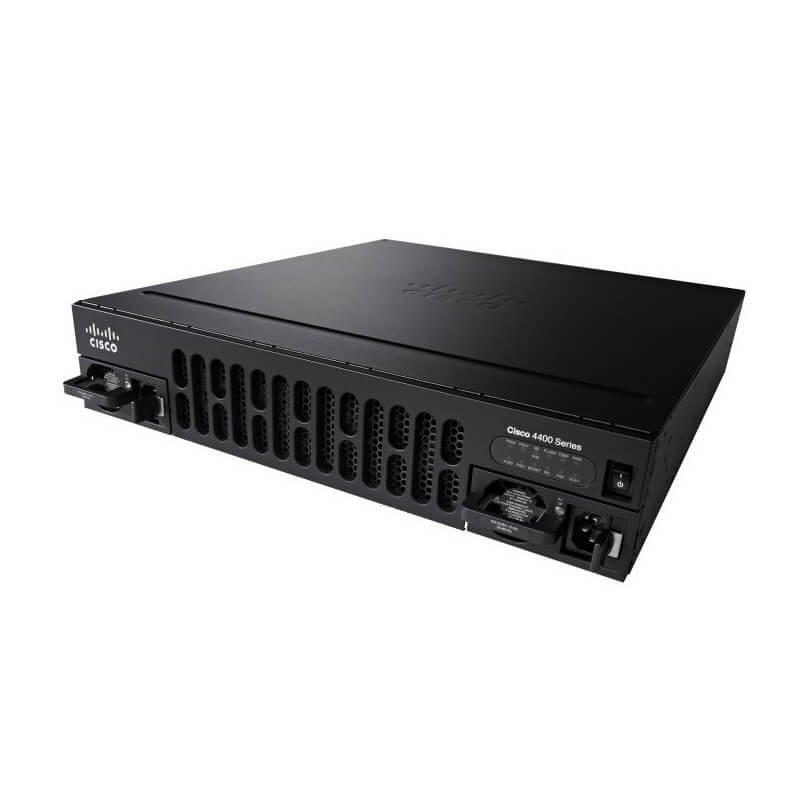

The Cisco ISR4451-X Integrated Services Router (ISR4 451-X-AXV/K9) is a high-performance router designed for enterprise branch offices, small businesses, and teleworker sites. It offers a wide range of features and capabilities, including:
- CPU: The router is powered by a quad-core 2.4 GHz Intel Xeon processor, which provides high performance and reliability.
- Memory: The router has 4 GB of DRAM and 4 GB of flash memory, which provides ample storage for the router’s operating system and configuration files.
- Interfaces: The router has 4 onboard Gigabit Ethernet interfaces, as well as 2 additional Gigabit Ethernet interfaces that can be added via a network module. It also supports various other interface options such as SFP, T1/E1, and VDSL2/ADSL2+
- Network Services: The router supports a wide range of network services, including routing, VPN, firewall, and intrusion prevention. It also supports advanced features such as Quality of Service (QoS), voice over IP (VoIP), and video conferencing.
- Security: The router includes advanced security features such as a built-in firewall, VPN, and intrusion prevention system (IPS). It also supports compliance with industry standards and regulations such as HIPAA, PCI DSS, and SOX.
- Software: The router runs Cisco IOS-XE software, which provides a wide range of features and capabilities, including network automation, analytics, and programmability.
- Power Supply: The router includes a built-in power supply, which can be powered by an AC or DC power source. It also supports PoE (Power over Ethernet)
- Chassis: The router is housed in a compact 1RU form factor and supports up to 4 network modules.
Networking and Connectivity Options
The Cisco 4451-X Integrated Services Router (ISR4 451-X-AXV/K9) is a high-performance router that provides advanced networking and connectivity options for enterprise networks. Some of the key features include:
- WAN Connectivity: The router supports multiple WAN connectivity options, including Gigabit Ethernet, VDSL2/ADSL2+, 3G/4G LTE, and serial. It also supports various WAN protocols such as PPPoE, DHCP, and static IP.
- LAN Connectivity: The router provides Gigabit Ethernet LAN connectivity with support for PoE and PoE+. It also supports various LAN protocols such as IPv4 and IPv6.
- VPN: The router supports several VPN protocols, including IPsec, SSL, and DMVPN, allowing you to securely connect remote users and branch offices to your network.
- Quality of Service (QoS): The router supports advanced QoS features to help ensure that critical applications receive the bandwidth they need.
- Application Optimization: The router includes Application Visibility and Control (AVC) and Application Experience (AX) features, which provide deep visibility into application behavior and enable optimization of application performance.
- Security: The router includes advanced security features such as firewall, VPN, intrusion prevention, and content filtering to help protect your network from a variety of threats.
- High Availability: The router supports high availability features such as redundancy, failover, and stateful failover to help ensure that your network remains up and running in the event of a failure.
Security and Compliance Features
The ISR4 451-X-AXV/K9 Cisco 4451-X Integrated Services Router (ISR) is designed to provide a wide range of security and compliance features to protect your network and data. Some of the key features include:
- Firewall: The ISR4 451-X-AXV/K9 comes with a built-in firewall that can be used to control access to your network and protect against unauthorized access.
- VPN: The ISR4 451-X-AXV/K9 supports both site-to-site and remote-access VPNs, allowing you to securely connect remote users and branch offices to your network.
- Intrusion Prevention System (IPS): The ISR4 451-X-AXV/K9 includes an IPS that can detect and block a wide range of network attacks.
- Content Filtering: The ISR4 451-X-AXV/K9 includes a content filtering feature that can be used to block access to certain websites and restrict access to specific types of content.
- Compliance: The ISR4 451-X-AXV/K9 supports compliance with a variety of regulations and standards, including PCI-DSS, HIPAA, and SOX.
- Authentication and Authorization: The ISR4 451-X-AXV/K9 supports a variety of authentication methods, including AAA, TACACS, and RADIUS, and can be configured to use these methods to control access to network resources.
General Information of this Cisco ISR4451-X-AXV/K9
- Manufacturer : Cisco
- Model Number or SKU# ISR4451-X-AXV/K9
- Device Type : Integrated Services Router
Best-fit Applications about of Cisco Router
- Network / Transport Protocol : IPSec, PPPoE, DHCP, L2TPv3
- Routing Protocol :
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
- Remote Management Protocol : SNMP, RMON
- Features :
- Firewall protection, VPN support, MPLS support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, IPSec Virtual Private Network (VPN), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS support, Bidirectional Forwarding Detection (BFD), NetFlow, IPFIX
- Compliant Standards :
- IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, VCCI V-3, EN 61000, EMI, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1
- RAM : 4 GB (installed) / 16 GB (max) DDR3 SDRAM
- Flash Memory : 8 GB (installed) / 32 GB (max)
Expansions And Connectivity for Cisco 4 Ports Router
- Interfaces
- WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Serial: 1 x console – RJ-45 Management: 1 x console – mini-USB Type B Serial: 1 x auxiliary – RJ-45 USB 2.0: 2 x 4 pin USB Type A 4 x SFP (mini-GBIC) Management: 1 x RJ-45
- Expansion Slots :
- 3 (total) / 3 (free) x NIM 1 (total) / 0 (free) x ISC 2 (total) / 2 (free) x Enhanced Service Module (SM-X) 3 (total) / 0 (free) x DIMM 240-pin 1 CompactFlash
Power of Cisco Integrated Services Router
- Power Device : Internal power supply – hot-plug – 450 Watt
- Power Redundancy : Yes
- Installed Qty : 2 (installed) / 2 (max)
- Voltage Required : AC 120/230 V (50/60 Hz)
Miscellaneous
- Included Accessories : 64-channel voice DSP module
- Rack Mounting Kit : Included
