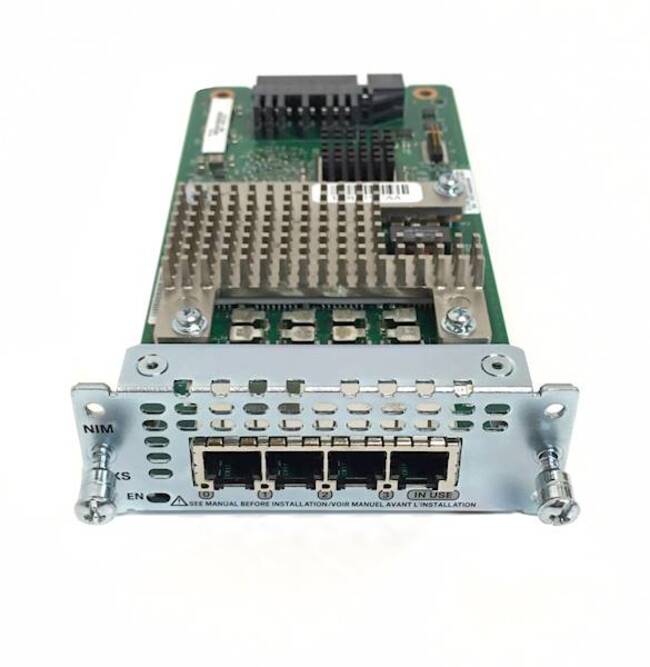

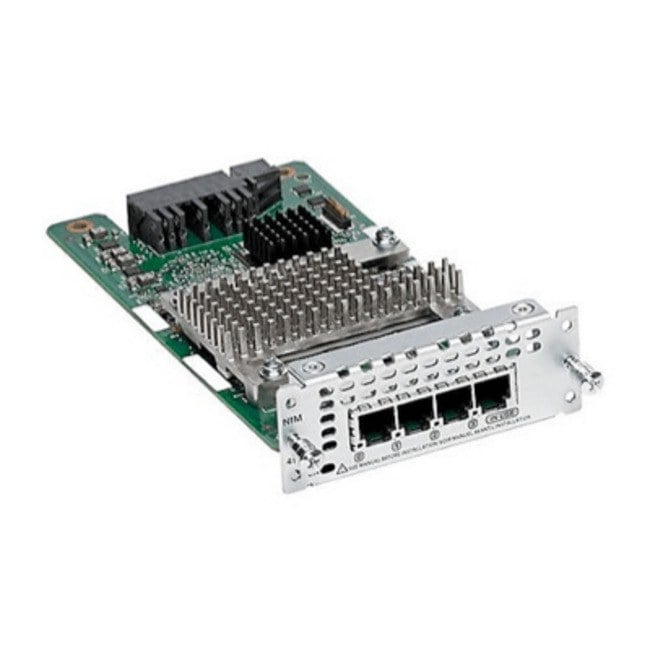

Product Overview Cisco NIM-4BRI-NT/TE
In the realm of networking and telecommunications, the Cisco NIM-4BRI-NT/TE 4 Ports Expansion Module stands out as a pivotal component. This expansion module, with its four Basic Rate Interface (BRI) ports, plays a crucial role in enhancing network connectivity and facilitating efficient communication. In this comprehensive guide, we will delve into the key features, benefits, installation process, and potential applications of the Cisco NIM-4BRI-NT/TE.
Understanding the Basics
The Cisco NIM-4BRI-NT/TE is an expansion module designed for Cisco routers, specifically catering to the integration of Basic Rate Interface (BRI) connections. BRI is a standard integrated services digital network (ISDN) interface that supports voice and data communication over existing telephone lines. This expansion module equips Cisco routers with four BRI ports, effectively expanding their capabilities and enabling a broader range of network configurations.
BRI Network Interface
The term “BRI Network Interface” refers to the Basic Rate Interface provided by the Cisco NIM-4BRI-NT/TE module. BRI is a form of ISDN that utilizes two B channels (Bearer channels) for data and one D channel (Delta channel) for signaling. This interface is widely used for voice and data services, making it a versatile choice for various networking scenarios.
Key Features
The standout feature of the Cisco NIM-4BRI-NT/TE is its provision of four BRI ports. This multi-port configuration allows for increased connectivity options, making it suitable for environments with high communication demands.
Network Termination (NT) and Terminal Equipment (TE) Support
The module supports both Network Termination (NT) and Terminal Equipment (TE) modes. This flexibility ensures compatibility with different network architectures, offering adaptability to various deployment scenarios.
ISDN Protocol Support
The Cisco NIM-4BRI-NT/TE module supports the ISDN protocol, which is vital for seamless integration into existing ISDN networks. This support enables the module to communicate effectively with other ISDN devices, enhancing interoperability.
High Data Transfer Rates
With BRI supporting data rates of up to 128 Kbps per B channel, the Cisco NIM-4BRI-NT/TE ensures efficient data transfer. This capability is essential for applications demanding reliable and high-speed data communication.
Voice and Data Integration
The module facilitates the integration of both voice and data services over BRI connections. This dual functionality is particularly advantageous for organizations requiring a unified solution for their communication needs.
Benefits of Cisco NIM-4BRI-NT/TE
The provision of four BRI ports on a single module enhances the scalability of network infrastructure. Organizations can easily scale their connectivity by adding more Cisco NIM-4BRI-NT/TE modules as the need for additional BRI interfaces arises.
Versatility deployment
Support for both NT and TE modes makes the Cisco NIM-4BRI-NT/TE versatile in deployment. Whether it’s connecting to an ISDN network as a terminal device or serving as the network termination point, this module adapts to diverse network architectures.
Cost-Efficiency
Consolidating multiple BRI ports into a single expansion module reduces the overall cost of infrastructure. Instead of investing in individual interfaces, organizations can leverage the efficiency and cost-effectiveness of the Cisco NIM-4BRI-NT/TE.
Reliability
Cisco is renowned for producing robust and reliable networking equipment. The NIM-4BRI-NT/TE module inherits this reputation, ensuring that organizations can rely on consistent performance and uptime for their communication needs.
Simplified
Centralized management of multiple BRI ports becomes more streamlined with the Cisco NIM-4BRI-NT/TE. Network administrators can efficiently configure and monitor all ports from a single interface, simplifying the overall management process.
Compatibility Check
Before installation, it’s crucial to ensure that the Cisco NIM-4BRI-NT/TE module is compatible with the router model. Refer to the product documentation and verify compatibility to avoid any issues during the installation process.
Power Off the Router
For safety and proper installation, power off the router before inserting the expansion module. This precautionary step prevents electrical mishaps and ensures a smooth installation process.
Inserting the Module
Locate the appropriate slot on the router for the NIM-4BRI-NT/TE module. Gently insert the module into the slot, ensuring proper alignment. Apply even pressure until the module is securely in place.
Securing the Module
Once inserted, secure the module using the provided screws or locking mechanisms. This step is essential to prevent any accidental dislodging of the module during operation.
Power On and
Power on the router and proceed with the configuration process. Access the router’s interface and configure the BRI ports on the NIM-4BRI-NT/TE module according to the specific requirements of the network.
Testing and Verification
After configuration, conduct thorough testing to ensure the proper functioning of the BRI ports. Verify connectivity and perform any necessary troubleshooting to address potential issues.
Applications and Use Cases
The Cisco NIM-4BRI-NT/TE finds extensive use in Voice over IP (VoIP) implementations. The integration of BRI ports allows for the efficient handling of voice traffic, making it an ideal choice for organizations transitioning to VoIP solutions.
Branch Office Connectivity
For enterprises with multiple branch offices, the NIM-4BRI-NT/TE module offers a practical solution for establishing reliable and cost-effective connectivity. The scalability of the module allows organizations to adapt their network infrastructure to varying branch office requirements.
Integrated Services Digital Network (ISDN) Connectivity
Given its BRI support, the module is well-suited for environments where ISDN connectivity is prevalent. This includes scenarios where ISDN is used for both voice and data services, such as in certain legacy systems or specific geographic regions.
Redundancy and Failover
The Cisco NIM-4BRI-NT/TE can be employed to enhance network redundancy and failover capabilities. By configuring BRI connections as backup links, organizations can ensure uninterrupted communication even in the event of a primary link failure.
Small to Medium-sized Businesses (SMBs)
SMBs looking for a compact and efficient solution for their communication needs can benefit from the Cisco NIM-4BRI-NT/TE. Its four BRI ports offer ample connectivity options for small to medium-sized networks, allowing for growth and expansion as the business evolves.
General Information about the Cisco NIM-4BRI-NT/TE
- Manufacturer: Cisco
- Model Number or SKU# NIM-4BRI-NT/TE
- Product Type: Expansion Module
Performance for the 4-Port Expansion Module
- Network Technology ISDN BRI (S/T)
- Application/Usage Data Networking
Interfaces / Ports
- Interfaces/Ports Details 4 x ISDN BRI Network
Outline, the Cisco NIM-4BRI-NT/TE 4 Ports Expansion Module is a versatile and valuable addition to Cisco routers. With its support for Basic Rate Interface (BRI) connections, high data transfer rates, and flexible deployment options, this module caters to a wide range of networking scenarios. From small businesses seeking a cost-effective communication solution to larger enterprises enhancing their branch office connectivity, the Cisco NIM-4BRI-NT/TE proves to be a reliable and scalable choice. Understanding its key features, benefits, installation process, and potential applications empowers organizations to make informed decisions about integrating this expansion module into their network infrastructure.
