Description

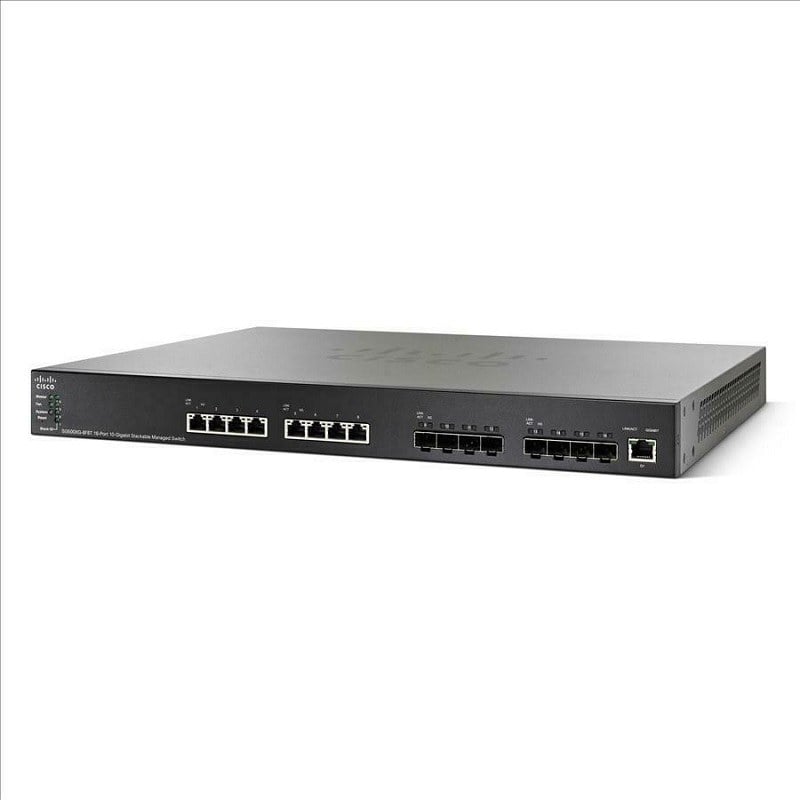

A Glance at the SG500XG-8F8T-K9 Cisco 16 Ports Stackable Switch
The SG500XG-8F8T-K9 is a high-performance network switch designed for small businesses. With 16 ports, advanced management capabilities, and a compact form factor, this switch is ideal for businesses looking to enhance their network infrastructure. In this detailed explanation, we will explore the key features and specifications of the SG500XG-8F8T-K9 ethernet switch, breaking down its functionalities, physical attributes, and benefits in simple English.
Key Features of SG500XG-8F8T Managed Layer 3 Ethernet Switch
- Port ConfigurationThe SG500XG-8F8T-K9 switch boasts a total of 16 ports, providing ample connectivity options for small businesses. These ports are further divided into two types: 8 10GBase-T ports and 8 10-Gigabit Small Form-Factor Pluggable Plus (SFP+) ports. The combination of these ports allows for versatile connections, accommodating both twisted pair and fiber-optic connections.
- Managed Layer 3One of the standout features of this switch is its managed Layer 3 capabilities. In networking, Layer 3 refers to the network layer responsible for routing and forwarding data between different subnets. The SG500XG-8F8T-K9, being a Layer 3 switch, can make intelligent routing decisions, enhancing the efficiency of data transfer within the network.
- Twisted Pair ConnectivityThe switch comes equipped with 8 10GBase-T ports, supporting twisted pair connectivity. This is particularly beneficial for businesses that rely on Ethernet cabling for their network infrastructure. The use of twisted pair cables, such as Cat6 or Cat6a, enables high-speed data transfer over short to moderate distances.
- Fiber-Optic ConnectivityIn addition to twisted pair ports, the SG500XG-8F8T-K9 features 8 10-Gigabit SFP+ ports, allowing for fiber-optic connectivity. Fiber-optic cables are known for their high bandwidth and immunity to electromagnetic interference, making them suitable for long-distance data transmission and ensuring data integrity.
Physical Design
- Rack-Mountable and Desktop StackableThe physical design of the SG500XG-8F8T-K9 are versatile, offering both rack-mountable and desktop stackable options. This flexibility enables businesses to choose the installation method that best suits their space and infrastructure requirements. Rack-mounting is ideal for data centers or network closets, while the desktop stackable option is suitable for smaller office environments.
- Compact Form FactorDespite its powerful capabilities, the switch maintains a compact form factor. This is advantageous for businesses with limited space constraints. The compact design ensures that the switch can be integrated into various environments without taking up excessive space, contributing to efficient space utilization.
Management Capabilities
- Advanced Management FeaturesThe SG500XG-8F8T-K9 switch is equipped with advanced management features that empower network administrators to have granular control over the network. This includes features such as Quality of Service (QoS) settings, VLAN (Virtual Local Area Network) support, and security protocols. QoS allows prioritization of network traffic, ensuring that critical applications receive the necessary bandwidth.
- Web-Based Management InterfaceThe switch’s management interface is accessible through a user-friendly web-based platform. This interface simplifies the configuration and monitoring of the switch, making it accessible even for users with limited networking expertise. The intuitive design of the interface contributes to efficient network management.
Performance and Efficiency
- High-Speed Data Transfer With its 10GBase-T and 10-Gigabit SFP+ ports, the SG500XG-8F8T-K9 switch delivers high-speed data transfer capabilities. This is crucial for businesses that rely on bandwidth-intensive applications or regularly transfer large volumes of data. The switch’s performance ensures a smooth and responsive network experience.
- Energy-Efficient OperationIn addition to high performance, the switch is designed with energy efficiency in mind. Energy-efficient features help businesses reduce their carbon footprint and operating costs by optimizing power consumption based on network demand. This aligns with modern sustainability practices and contributes to a greener IT infrastructure.
Security Features
- Network Security ProtocolsThe SG500XG-8F8T-K9 prioritizes network security with the implementation of various protocols. This includes support for Virtual LANs (VLANs) to logically segment the network, preventing unauthorized access to sensitive data. Additionally, the switch incorporates security features such as Access Control Lists (ACLs) for controlling traffic flow and mitigating potential security threats.
- Secure Management AccessTo ensure the security of the switch itself, secure management access is a key feature. This involves the use of secure protocols such as SSH (Secure Shell) and HTTPS (Hypertext Transfer Protocol Secure) for encrypting management traffic. This safeguards the switch’s configuration and management functions from unauthorized access.
High Availability and Redundancy Options
The SG500XG-8F8T-K9 Cisco switch offers a variety of high availability (HA) and redundancy options to help ensure that network traffic continues to flow even in the event of a switch failure. Some of these options include:
- Link Aggregation Control Protocol (LACP) and Link Aggregation Groups (LAGs): This feature allows administrators to bundle multiple physical ports together to form a single logical link, providing redundancy in case of a link failure.
- Hot Standby Router Protocol (HSRP): This protocol allows administrators to configure two or more switches to act as a virtual router, with one switch acting as the active router and the other switches acting as standby routers. In case of active router failure, the standby router takes over.
- Virtual Router Redundancy Protocol (VRRP): This protocol allows administrators to configure two or more switches to act as a virtual router, with one switch acting as the active router and the other switches acting as standby routers. In case of active router failure, the standby router takes over.
- Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP): These protocols allow administrators to create multiple spanning tree instances, providing redundancy in case of a link failure.
- Cisco StackWise-480: StackWise technology allows administrators to connect multiple switches to form a single logical switch, providing redundancy in case of a switch failure.
Switching Capabilities Stackable
The SG500XG-8F8T-K9 Cisco switch has advanced switching capabilities that are designed to handle high-bandwidth applications and secure your network. Some of these capabilities include:
- 10 Gigabit Ethernet (10 GbE) switching: The switch supports 10 GbE ports, which allows it to handle high-bandwidth applications such as video streaming, virtualization, and cloud computing.
- Quality of Service (QoS): The switch supports QoS, which allows administrators to prioritize network traffic based on the type of application or user, ensuring that critical applications receive the necessary bandwidth.
- Virtual LAN (VLAN): The switch supports VLANs, which allows administrators to segment their network into smaller virtual networks, providing better security and traffic management.
- Access Control Lists (ACLs): The switch supports ACLs, which allows administrators to restrict network access based on user or device, ensuring that only authorized users and devices can access the network.
- IEEE 802.3ad Link Aggregation: The switch supports Link Aggregation, which allows administrators to bundle multiple physical ports together to form a single logical link, providing redundancy in case of a link failure.
- IPv6 support: The switch supports IPv6, which allows administrators to deploy IPv6 in their network, ensuring that their network is ready for the future.
Ports and Connectivity Options
The SG500XG-8F8T-K9 Cisco switch has 16 ports and offers a variety of connectivity options to help administrators connect devices to the switch. Some of these options include:
- 10 Gigabit Ethernet (10 GbE) ports: The switch has 8 10 GbE ports, which can be used to connect high-bandwidth devices such as servers, storage systems, and other switches.
- SFP+ and SFP ports: The switch has 8 SFP+ ports and 8 SFP ports, which can be used to connect devices using optical fiber or copper cables.
- Stack ports: The switch has 2 stack ports, which can be used to connect multiple switches together to form a single logical switch, providing redundancy in case of a switch failure.
- USB ports: The switch has 1 USB port, which can be used to connect a USB flash drive for backup and restore, or a USB console for command-line interface (CLI) access.
- Out-of-band management port: The switch has 1 Ethernet port, which can be used to connect to the switch for out-of-band management, allowing administrators to manage the switch even if the network is down.
General Information for the Cisco 16 Ports Managed Switch
- Manufacturer: Cisco
- Part Number or SKU# SG500XG-8F8T-K9
- Product Series: 500
- Product Model: SG500XG-8F8T
- Product Type: Layer 3 Switch
- Form Factor: Rack-mountable, Desktop (1U)
Interfaces/Ports of Layer 3 Ethernet Switch
- Total Number of Ports: 16
- Management Port: Yes
- Stack Port: Yes
- Number of Network Ports: 8 (RJ-45)
- Port/Expansion Slot Details: 8 x 10 Gigabit Ethernet Expansion Slot, 8 x 10 Gigabit Ethernet Network
Performance
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 5
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10GBase-T
I/O Expansions
- Number of Total Expansion Slots: 8
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 8
Network & Communication
- Layer Supported: 3
Memory
- Standard Memory: 256 MB
- Flash Memory: 32 MB
Reliability
- MTBF (Mean Time Between Failures): 131,290 Hours
Power Description
- PoE (Power over Ethernet) Port: No
- Input Voltage: 220 V AC, 110 V AC
- Power Source: Power Supply
Miscellaneous
- Included Accessories:
- 16-Port 10 Gig Managed Switch
- Power Cord
- Mounting Kit
- Serial Cable
- CD-ROM with User Documentation (PDF)
- Quick Start Guide
In conclusion, the SG500XG-8F8T-K9-NA is a robust and versatile network switch designed to meet the demands of small businesses. With its 16 ports, managed Layer 3 capabilities, and a combination of twisted pair and fiber-optic connectivity options, the switch provides a comprehensive solution for enhancing network infrastructure. Its physical design options, advanced management features, high-performance capabilities, and security protocols make it a valuable asset for businesses aiming to optimize their networking environment. Whether deployed in a rack-mounted configuration in a data center or as a desktop stackable switch in a small office, the SG500XG-8F8T-K9-NA offers the flexibility and performance needed to support the evolving needs of modern small businesses.
