Network Management and Security

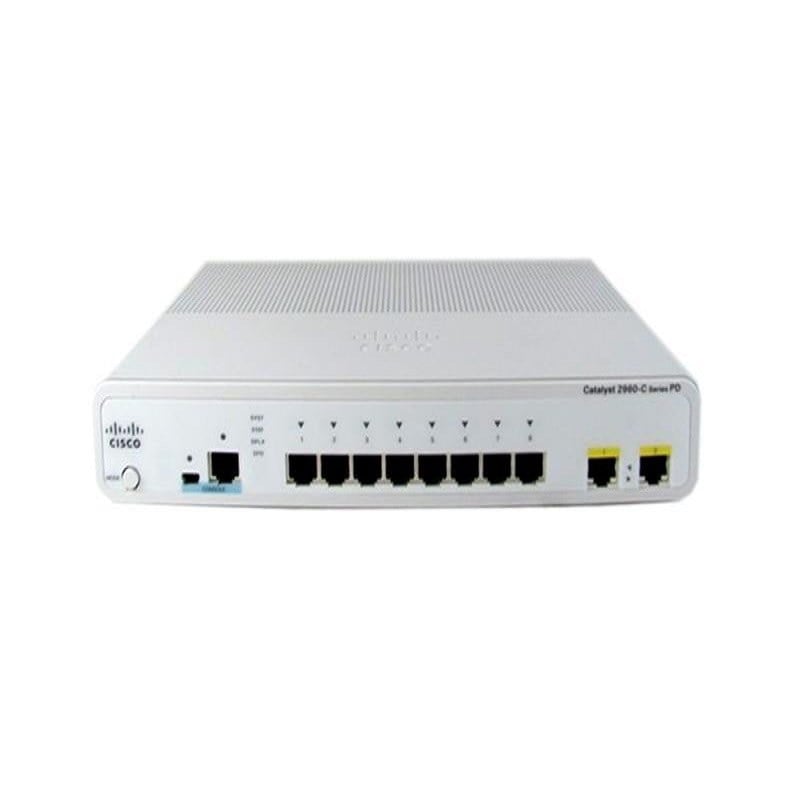

The WS-C2960CPD-8PT-L Cisco Catalyst 2960C 8 Ports Ethernet Switch provides a range of network management and security features to help ensure efficient and secure network operation. Here are some of the key features:
- Web-based management interface: The switch can be managed through a web-based interface, which provides a user-friendly and intuitive way to configure and manage the switch.
- Command-line interface: The switch can also be managed through a command-line interface (CLI), which provides more advanced configuration and management options for experienced network administrators.
- Simple Network Management Protocol (SNMP): The switch supports SNMP, which allows you to monitor and manage the switch remotely from a network management system (NMS).
- Network security: The switch provides a range of network security features, including access control lists (ACLs), port security, and 802.1X authentication. These features help to control access to the network and protect against unauthorized access and attacks.
- MAC address filtering: The switch supports MAC address filtering, which allows you to restrict access to the network based on the MAC addresses of devices.
- Storm control: The switch provides storm control capabilities, which allow you to control broadcast, multicast, and unknown unicast traffic on the network. This helps to prevent network congestion and performance issues.
- Spanning Tree Protocol (STP): The switch supports STP, which helps to prevent network loops and ensure network stability.
Remote Management and Monitoring
The WS-C2960CPD-8PT-L Cisco Catalyst 2960C 8 Ports Ethernet Switch can be remotely managed and monitored through a web-based graphical user interface (GUI) or command line interface (CLI). Here are some steps to manage and monitor the switch remotely:
- Connect to the switch: Connect to the switch using a web browser or a terminal emulation program such as PuTTY. Enter the IP address of the switch in the address bar or as the host name for the terminal emulation program.
- Login to the switch: Enter the username and password to login to the switch. The default username is "cisco" and the default password is "cisco".
- Navigate the GUI: Once you are logged in, you can use the web-based GUI to manage the switch. The GUI provides access to various configuration and monitoring tools, such as port status, VLAN configuration, and Quality of Service (QoS) settings.
- Use the CLI: Alternatively, you can use the CLI to manage the switch remotely. The CLI provides access to the same configuration and monitoring tools as the GUI, but in a command line interface. Enter the "enable" command to enter the privileged mode and access the configuration commands.
- Configure switch settings: To configure the settings of the switch, use the GUI or the CLI to modify settings such as VLANs, port configurations, and QoS settings.
- Monitor switch performance: To monitor the performance of the switch, use the GUI or the CLI to view real-time network usage data, such as traffic volume and bandwidth usage.
- Troubleshoot issues: If you encounter any issues with the switch, you can use the GUI or the CLI to troubleshoot the device. For example, you can run diagnostic tests or view log files to diagnose connectivity issues.
Features and Benefits
The WS-C2960CPD-8PT-L Cisco Catalyst 2960C 8 Ports Ethernet Switch provides a range of features and benefits to help ensure efficient and reliable network operation. Here are some of the key features and benefits of the switch:
- Fast Ethernet ports: The switch provides eight 10/100 Fast Ethernet ports, which provide reliable and efficient connectivity for a range of network devices, including computers, printers, and IP phones.
- Power over Ethernet (PoE): The switch supports PoE on four of its eight Ethernet ports, providing power to devices such as IP phones, wireless access points, and security cameras directly from the switch, without the need for separate power cables and outlets.
- Gigabit Ethernet uplink: The switch includes a single Gigabit Ethernet uplink port, which provides high-speed connectivity to other switches or network devices. This can help improve network performance and reduce bottlenecks.
- VLAN support: The switch supports VLANs, which allow you to logically separate network traffic into different virtual networks. This can help improve network performance and security by isolating traffic between different departments or user groups.
- Quality of Service (QoS): The switch provides QoS capabilities, which allow you to prioritize network traffic based on its importance or type. This can help ensure that critical traffic, such as voice or video, is given higher priority and is not delayed or dropped.
- Link aggregation: The switch supports link aggregation, which allows you to combine multiple physical links between switches into a single logical link. This can help increase bandwidth and provide redundancy in the event of a link failure.
- Network management and security features: The switch provides a range of network management and security features, including a web-based management interface, CLI, SNMP support, network security features, MAC address filtering, storm control capabilities, and STP support.
- Energy efficiency: The switch is designed to be energy-efficient, with features such as Energy Efficient Ethernet (EEE) and automatic power consumption adjustment based on cable length. This can help reduce power consumption and operating costs.
General Information
- Manufacturer Cisco
- MPN: WS-C2960CPD-8PT-L
- Product Line Catalyst
- Product Series 2960-C
- Product Name Catalyst 2960C Ethernet Switch
- Product Type Ethernet Switch
Interfaces/Ports
- Total Number of Network Ports 10
- Number of PoE (RJ-45) Ports 10
- Port/Expansion Slot Details 8 x Fast Ethernet Network
- Port/Expansion Slot Details 2 x Gigabit Ethernet Uplink
Performance
- Media Type Supported Twisted Pair
- Ethernet Technology Fast Ethernet
- Ethernet Technology Gigabit Ethernet
- Network Technology 10/100/1000Base-T
- Network Technology 10/100Base-TX
Network & Communication
- Layer Supported 2
Management & Protocols
- Manageable Yes
Power Description
- PoE (RJ-45) Port Yes
- Input Voltage 110 V AC
- Input Voltage 220 V AC
Dimensions and Weight
- Form Factor Desktop Rack-mountable Wall Mountable
- Height 1.8 Inch
- Width 10.6 Inch
- Depth 6.8 Inch
- Weight (Approximate) 2.38 Lbs
