Description
Introduction to the 24 Ports Switch

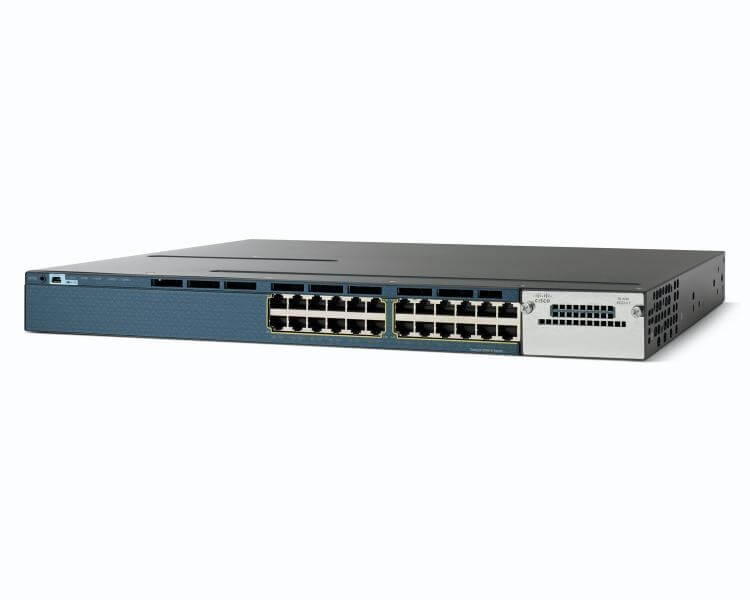

The Cisco Catalyst 3560X-24U-S is a 24-port, fixed-configuration, stackable Gigabit Ethernet switch that includes Power over Ethernet (PoE) support. It is designed for enterprise, midmarket, and branch office networks to provide scalable, secure, and energy-efficient access to data, voice, and video. The switch supports advanced security features, including access control lists (ACLs), advanced quality of service (QoS), and IPv6. The 3560X-24U-S also supports energy-efficient Ethernet (EEE) and Cisco EnergyWise technology, which can help reduce energy costs. The switch has a compact 1RU form factor and can be stacked with other 3560X switches for easy expansion and management.
Power Options and Redundancy
The WS-C3560X-24U-S Cisco Catalyst 3560X 24 Ports Layer 2 Manageable Switch is a powerful and reliable network switch that offers a variety of power options and redundancy features to ensure continuous operation of your network.
Power Options:
- The switch is equipped with an internal power supply, but it also supports the use of an external power supply, providing flexibility for different power requirements.
- It supports both AC and DC voltage inputs, so you can use the power source that best fits your needs.
Redundancy:
- The switch is equipped with a Redundant Power System (RPS) port, which allows for the use of a secondary power supply. In the event of a failure of the primary power supply, the secondary power supply will automatically take over, ensuring that the switch continues to operate.
- Additionally, the switch supports StackWise Plus technology, which allows for multiple switches to be connected in a stacked configuration. This provides increased resiliency and redundancy at the network level, as if one switch in the stack fails, the others will take over to keep the network running.
Security and Management
The WS-C3560X-24U-S Cisco Catalyst 3560X 24 Ports Manageable Switch is a powerful and versatile network switch that offers a variety of security and management features to help secure and manage your network.
Security:
- The switch supports advanced security features such as Access Control Lists (ACLs) and Virtual Private Networks (VPNs) to help secure your network against unauthorized access.
- It also supports 802.1X authentication and Radius/TACACS+ authentication, providing an additional layer of security for controlling access to your network.
- Additionally, it supports features like DHCP snooping, Dynamic ARP Inspection (DAI), and IP Source Guard to prevent malicious attacks and protect against ARP spoofing.
Management:
- The switch is equipped with a web-based management interface, allowing for easy configuration and management of the switch from any web browser.
- It also supports SNMP and RMON for remote monitoring and management of your network.
- Additionally, it supports features like Link Aggregation Control Protocol (LACP) for link aggregation and Spanning Tree Protocol (STP) for loop prevention.
General Information
Manufacturer Cisco Systems, Inc
MPN: WS-C3560X-24U-S
Product Line Catalyst
Product Series 3560-X
Product Model WS-C3560X-24U-S
Product Name Catalyst WS-C3560X-24U-S Ethernet Switch
Product Type Ethernet Switch
SKU: WS-C3560X-24U-S
Interfaces/Ports
Stack Port Yes
Total Number of Network Ports 24
Port/Expansion Slot Details 24 x Gigabit Ethernet Network
Port/Expansion Slot Details 1 x Expansion Slot
Performance
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
Network Technology 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots 1
Network & Communication
Layer Supported 2
Management & Protocols
Manageable Yes
Power Description
PoE (RJ-45) Port No
Input Voltage 110 V AC
Input Voltage 220 V AC
Dimensions and Weight:
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.8 Inch
Width 17.5 Inch
Depth 19.5 Inch
Weight (Approximate) 15.87 Lbs
