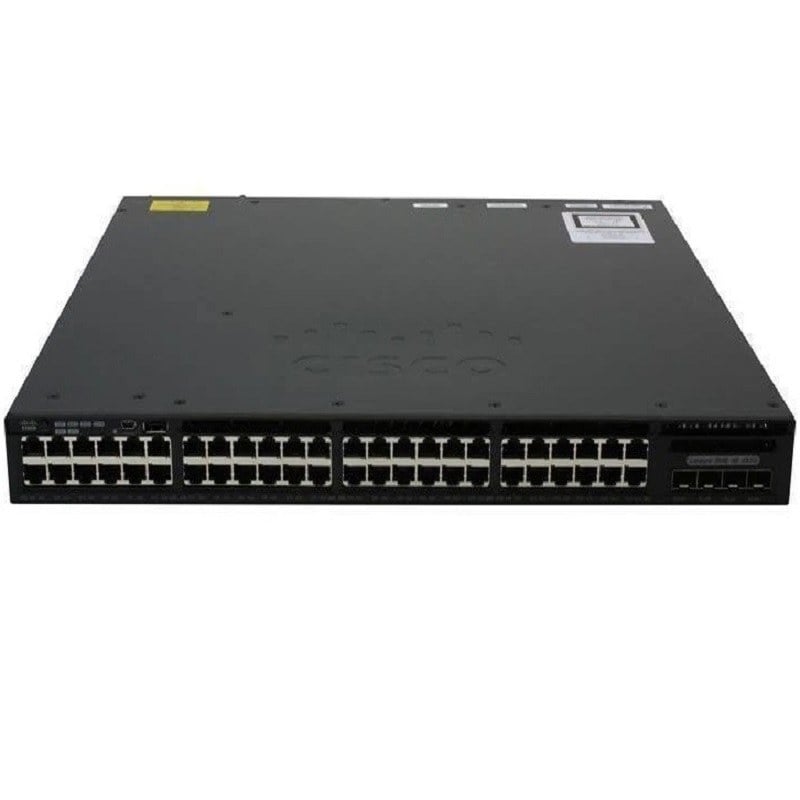

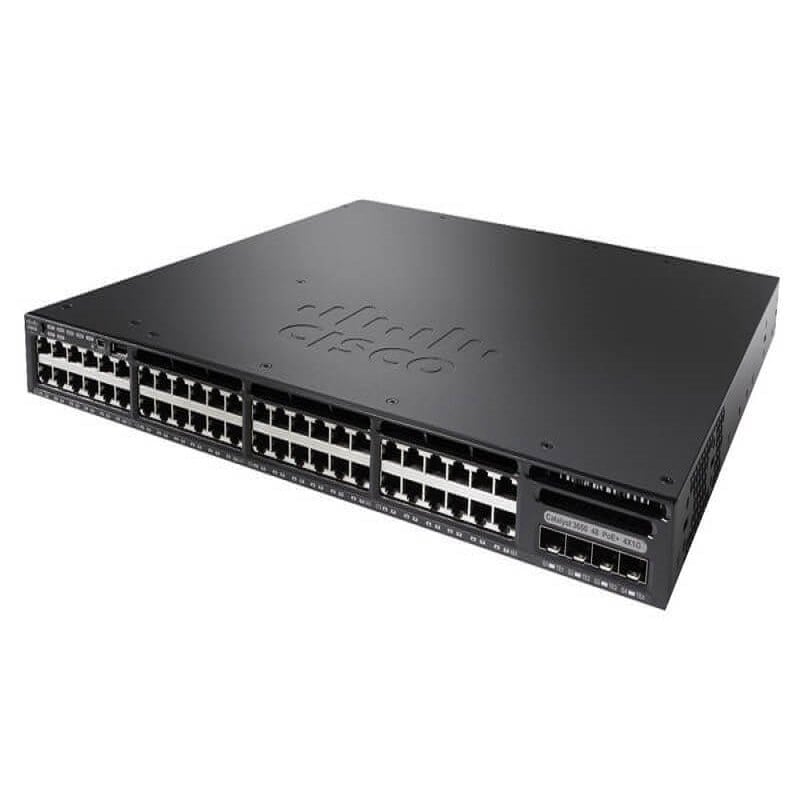

Product Outline of the Cisco WS-C3650-48TS-L Ethernet Switch
The Cisco WS-C3650-48TS-L is a powerful networking device designed to meet the demands of modern business environments. This Ethernet switch belongs to the Catalyst 3650 series and offers a range of features that make it a reliable and efficient choice for network management. The Cisco WS-C3650-48TS-L is a member of the Catalyst 3650 series, renowned for its high-performance networking solutions. As a Layer 2 manageable switch, it provides 48 ports for 10/100/1000Base-T RJ-45 connections, catering to the diverse connectivity needs of modern enterprises. The 1U rack-mountable design ensures efficient use of space in data center environments, while its stackable feature allows for scalability and flexibility in network expansion.
48 Ports for 10/100/1000Base-T RJ-45
One of the standout features of the Cisco WS-C3650-48TS-L is its extensive port availability. With 48 ports dedicated to 10/100/1000Base-T RJ-45 connections, this switch enables the seamless integration of numerous devices into the network. These ports support Gigabit Ethernet, ensuring high-speed data transfer and optimal performance for connected devices.
4x SFP Ports
In addition to the RJ-45 ports, the Cisco WS-C3650-48TS-L is equipped with 4x Small Form-Factor Pluggable (SFP) ports. These ports offer flexibility in network design, allowing for the connection of fiber optic cables and extending the reach of the network. This is particularly advantageous in scenarios where long-distance connectivity or high data transfer rates are essential.
Layer 2 Manageability
The WS-C3650-48TS-L operates at Layer 2 of the OSI model, focusing on data link layer functionalities. This layer is responsible for the efficient and error-free transfer of data between devices on the same network. Layer 2 manageability provides granular control over network traffic, enhancing the overall performance and security of the network.
Rack-Mountable 1U Design
The switch’s 1U rack-mountable design is tailored for data center environments where space optimization is crucial. The compact form factor allows for easy integration into standard server racks, minimizing the physical footprint of the networking infrastructure. This design is essential for organizations looking to maximize the use of their data center space.
Energy-Efficient Ethernet (EEE) Compliance
The Cisco WS-C3650-48TS-L aligns with modern environmental considerations by incorporating Energy-Efficient Ethernet (EEE) compliance. EEE is a set of standards designed to reduce power consumption during periods of low network activity. This feature contributes to energy efficiency, lowers operational costs, and aligns with the growing focus on sustainability in IT infrastructure.
Intelligent Power Management
To further optimize energy usage, the switch is equipped with intelligent power management capabilities. This includes features such as dynamic power allocation based on device requirements and the ability to prioritize power to critical components. These measures not only contribute to energy savings but also support a greener and more sustainable networking environment.
Performance and ReliabilityGigabit Ethernet Speeds
The switch’s support for Gigabit Ethernet across all 48 RJ-45 ports ensures high-speed data transfer within the local network. This is vital for modern businesses handling large volumes of data, video conferencing, and other bandwidth-intensive applications. The Gigabit Ethernet capability contributes to a responsive and efficient network infrastructure.
Redundancy and Resilience
Cisco is renowned for its commitment to reliability, and the WS-C3650-48TS-L is no exception. The switch is designed with redundancy features to ensure continuous operation even in the face of hardware failures. Redundant power supplies and the ability to create resilient network paths enhance the switch’s reliability, making it suitable for mission-critical applications.
Security FeaturesAccess Control Lists (ACLs)
To bolster network security, the Cisco WS-C3650-48TS-L supports Access Control Lists (ACLs). These lists enable administrators to define rules governing traffic flow within the network. By filtering packets based on specified criteria, ACLs enhance security by preventing unauthorized access and mitigating potential threats.
Secure Shell (SSH) Protocol
Secure Shell (SSH) protocol support adds an extra layer of security to the switch’s management interface. SSH provides encrypted communication between the switch and administrators, safeguarding sensitive information from potential eavesdropping or unauthorized access. This feature is crucial for securing remote management sessions and ensuring the confidentiality of networks.
Advanced Encryption Standards (AES)
In an era where data security is paramount, the Cisco WS-C3650-48TS-L incorporates Advanced Encryption Standards (AES). This cryptographic algorithm is widely recognized for its strength and effectiveness in securing data transmissions. By implementing AES, the switch enhances the confidentiality of data flowing through the network.
Reliability of Cisco 48 Ports Switch
Cisco is known for producing reliable networking equipment, and the Part Catalyst 3650 48-port switch is no exception. It has a number of redundant features that help to ensure the switch remains operational even if one of the components fails. These features include redundant power supplies and fans, which help to ensure that the switch continues to function even if one of these components fails. Additionally, the switch is powered by the Cisco Unified Access Data Plane (UADP) Application Specific Integrated Circuit (ASIC), which provides a high-bandwidth, low-latency platform for supporting a wide range of applications and workloads. Overall, the Cisco Part Catalyst 3650 48-port switch is a reliable and durable choice for enterprise networking applications.
High Availability Features of the Cisco WS-C3650-48TS-L 48 Ports Switch
The Cisco Catalyst 3650 WS-C3650-48TS-L switch is a manageable switch with 48 Ethernet ports, designed for small to mid-sized enterprise networks. It includes a range of high-availability features to help ensure reliable network operation and minimize downtime. Here are some of the high-availability features for the WS-C3650-48TS-L:
- StackWise-160: This technology enables up to nine switches to be stacked together and managed as a single entity, providing increased scalability, resiliency, and throughput.
- StackPower: This feature allows power supplies to be shared between stack members, providing additional redundancy and resiliency in case of power supply failure.
- Hot Standby Router Protocol (HSRP): HSRP allows two or more routers to work together to present the appearance of a single virtual router to the hosts on a LAN, providing redundancy in case of a router failure.
- Virtual Router Redundancy Protocol (VRRP): Similar to HSRP, VRRP provides redundancy by allowing multiple routers to participate in a virtual router group, with one router acting as the active router and the others as standby routers.
- Uninterrupted Layer 2: This feature allows for rapid switchover between active and standby supervisor engines, with no loss of Layer 2 forwarding during the switchover process.
- Nonstop Forwarding (NSF): NSF provides a mechanism for a router to continue forwarding packets during a planned or unplanned supervisor engine switchover.
- Graceful Insertion and Removal (GIR): This feature allows for the insertion and removal of a line card without disrupting traffic flow.
Main Specifications of the Cisco WS-C3650-48TS-L Ethernet Switch
- Manufacturer: Cisco
- Model Number or SKU# WS-C3650-48TS-L
- Product Line: Catalyst
- Product Series: 3650
- Product Type: Ethernet Switch
Technical Information of Manageable Switch
- Stack Port: Yes
- Total Number of Network Ports: 48
- Port/Expansion Slot Details: 48 x Gigabit Ethernet Network
- Port/Expansion Slot Details (Uplink): 4 x Gigabit Ethernet Uplink
- Uplink Interfaces: 4 x 1G SFP uplinks
- Maximum stacking number: 9
- Feature Set: LAN base
- Layer Supported: 2
Performance for 48 Ports Switch Module
- Data Transfer Rate: 40 Gbps
- Forwarding Performance: 130.95 MPPS
- Stack Bandwidth: 160 Gbps
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
Expansion / Connectivity
- Number of Total Expansion Slots: 4
- Expansion Slot Type: SFP
- Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot
Management & Protocols
- Manageable: Yes
- Routing Protocol: Static IP Routing
- Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Power Description
- PoE (RJ-45) Port: No
- Input Voltage: 220 V AC, 110 V AC
- Frequency Required: 50/60 Hz
- Power Provided: 250 Watt
- Power Redundancy: Optional
- Power Redundancy Scheme: 1+1 (with optional power supply)
- Power Device: Internal power supply
Environmental Parameters
- Min Operating Temperature: 23 °F
- Max Operating Temperature: 113 °F
- Humidity Range Operating: 5 – 96% (non-condensing)
- Min Storage Temperature: -40 °F
- Max Storage Temperature: 158 °F
In summary, the Cisco WS-C3650-48TS-L Catalyst 3650 is a powerful and versatile Ethernet switch designed to meet the demands of modern networking environments. With its 48 ports supporting various Ethernet standards, high manageability, Layer 2 functionality, rack-mountable design, stackable architecture, and SFP ports, this switch offers a comprehensive solution for organizations seeking a reliable and scalable networking infrastructure.
Whether deployed in small to medium-sized enterprises or larger data center environments, the WS-C3650-48TS-L showcases Cisco’s commitment to providing innovative and efficient networking solutions. Its blend of advanced features and user-friendly design positions it as a go-to choice for network administrators looking to optimize performance, enhance scalability, and future-proof their network infrastructure.
