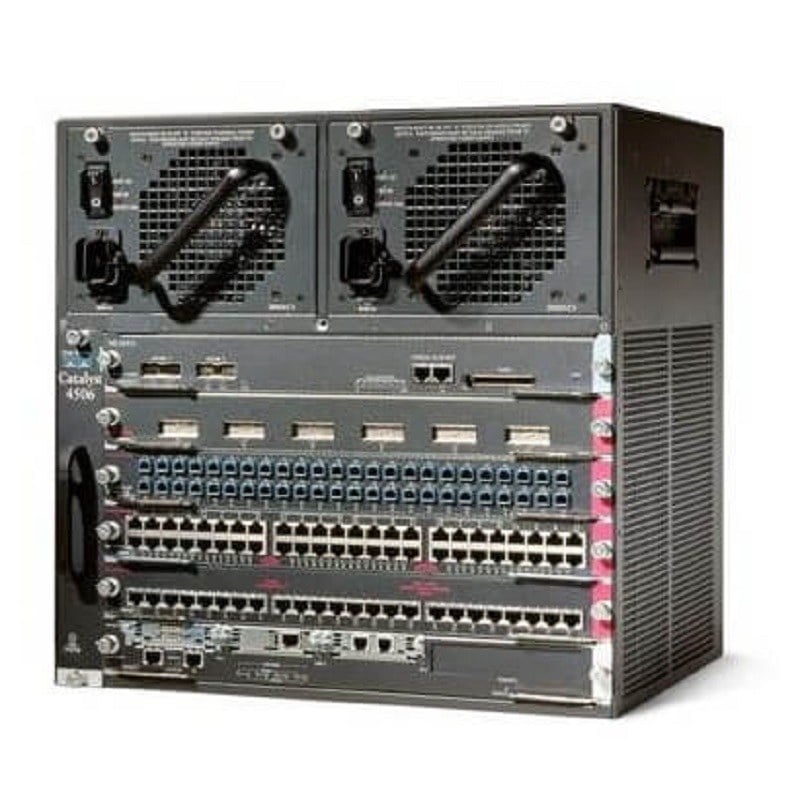

Understanding the WS-C4506-S2+96 Catalyst 4500-E Series Switch Chassis
The WS-C4506-S2+96 Catalyst 4500-E Series is a type of network switch designed for large-scale enterprise environments. It belongs to the Catalyst 4500-E Series, which is renowned for its robust performance and scalability. This particular model, the WS-C4506-S2+96, features a 6-slot chassis, Gigabit Ethernet connectivity, Layer 4 capabilities, and is rack-mountable. It is a manageable switch, meaning it can be configured and monitored to suit the specific needs of the network. However, it’s important to note that this model does not come with a power supply and requires separate fan modules for cooling.
Overview of the Catalyst Manageable 6 Slots Chassis
The Catalyst 4500-E Series switches are a family of modular chassis switches produced by Cisco Systems. They are designed to meet the demands of high-performance networking in enterprise environments. The 4500-E Series offers various chassis sizes and a wide range of line cards and supervisor engines, allowing for flexibility in configuration and scalability to accommodate evolving network needs.
Key Features of WS-C4506-S2+96
The WS-C4506-S2+96 switch comes with several key features that make it suitable for enterprise networking environments:
- 6-Slot Chassis: This switch features a 6-slot chassis, providing flexibility for expansion and accommodating additional line cards and modules as needed.
- Gigabit Ethernet Connectivity: It supports Gigabit Ethernet connectivity, enabling high-speed data transfer within the network infrastructure.
- Layer 4 Capabilities: The WS-C4506-S2+96 offers Layer 4 switching capabilities, allowing for advanced traffic management and optimization based on information in the transport layer of the OSI model.
- Rack-mountable Design: It is designed to be rack-mountable, which helps in space-saving and efficient organization of networking equipment within data center or server room environments.
- Manageable Switch: Being a manageable switch means that it can be configured, monitored, and managed remotely or locally, offering administrators greater control over network operations.
- Fan Modules for Cooling: The WS-C4506-S2+96 does not come with an integrated power supply and requires separate fan modules for cooling, ensuring optimal performance and reliability by preventing overheating.
Advanced Security Features
The WS-C4506-S2+96 Cisco Catalyst 4506 is a managed switch that provides advanced security features to help secure your network. Some of these security features include:
- Access Control Lists (ACLs): Allows you to control network access based on source and destination addresses, protocols, and port numbers.
- 802.1X Authentication: Provides network access control based on the authentication of a user or device.
- Dynamic Host Configuration Protocol (DHCP) Snooping: Helps prevent rogue DHCP servers from distributing incorrect IP addresses and subnet information.
- Port Security: Restricts unauthorized access to a specific port based on MAC addresses.
- IP Source Guard: Prevents unauthorized access by requiring that IP addresses match the IP address assigned to a specific port.
- Spanning Tree Protocol (STP) Protection: Prevents loops and ensures a loop-free network topology.
- VLAN Security: Helps secure the network by isolating traffic on different virtual LANs (VLANs).
These are just some of the advanced security features that the WS-C4506-S2+96 Cisco Catalyst 4506 provides to help secure your network.
High Availability and Redundancy Options
The WS-C4506-S2+96 Cisco Catalyst 4506 is a managed switch that provides several high availability (HA) and redundancy options to ensure that your network remains up and running in case of hardware or software failures. Some of these HA and redundancy options include:
- Hot-Standby Router Protocol (HSRP): Provides redundancy for default gateway IP addresses, allowing you to specify a secondary IP address in case the primary IP address fails.
- Virtual Router Redundancy Protocol (VRRP): Similar to HSRP, it provides redundancy for default gateway IP addresses, but it uses a different protocol.
- Link Aggregation Control Protocol (LACP): Allows you to bundle multiple physical links into a single logical link, providing redundancy and increasing bandwidth.
- Spanning Tree Protocol (STP): Ensures a loop-free network topology, providing redundancy and preventing network failures.
- Redundant Power Supplies: Allows you to use multiple power supplies, providing redundancy and ensuring that the switch continues to function even if one of the power supplies fails.
These HA and redundancy options help ensure that your network remains up and running in case of hardware or software failures, improving the overall availability and reliability of your network.
Use Cases and Applications
The WS-C4506-S2+96 Catalyst 4500-E Series switch is suitable for various networking use cases and applications, including:
- Enterprise Networks: It is ideal for large-scale enterprise networks where high performance, scalability, and reliability are essential requirements.
- Data Centers: The switch can be deployed in data center environments to support mission-critical applications and ensure seamless connectivity for servers and storage systems.
- Campus Networks: In educational institutions or corporate campuses, the WS-C4506-S2+96 can serve as a core or distribution switch, connecting multiple access switches and providing centralized network management.
- Service Provider Networks: Service providers can utilize this switch in their infrastructure to deliver high-speed connectivity and services to customers, such as internet access, VoIP, and IPTV.
Benefits of WS-C4506-S2+96
Deploying the WS-C4506-S2+96 Catalyst 4500-E Series switch offers several benefits for enterprise networks:
Scalability
With its modular design and support for various line cards, the switch can scale to accommodate growing network demands without requiring a complete overhaul of the infrastructure.
Performance
Gigabit Ethernet connectivity and advanced switching capabilities ensure high performance and low latency, supporting bandwidth-intensive applications and services.
Reliability
The switch is designed for high availability, with features such as redundant power supplies and hot-swappable components to minimize downtime and ensure continuous operation.
Flexibility
Administrators have the flexibility to customize and optimize the switch configuration to meet specific requirements, whether it’s for data center consolidation, campus network expansion, or service provider deployments.
Manageability
The switch’s manageable capabilities simplify network management tasks, allowing administrators to efficiently monitor, configure, and troubleshoot the network from a central location.
Compatibility and Integration
Interoperability with Other Networking Equipment
Networking environments often comprise a mix of devices from different manufacturers. We will explore how the WS-C4506-S2+96 ensures interoperability with a variety of networking equipment, promoting seamless integration into existing infrastructures.
Scalability Options
Scalability is vital for accommodating future growth and evolving network requirements. This section will discuss the scalability options offered by the WS-C4506-S2+96, allowing organizations to expand their networks without significant overhauls.
Future-Proofing Considerations
Investing in networking equipment involves considerations for future-proofing. We will examine how the WS-C4506-S2+96 addresses the challenges of evolving technologies and network demands, ensuring a sustainable and adaptable infrastructure.
General Information about the Cisco Manageable 6 Slots Switch Chassis
- Manufacturer: Cisco
- Part Number: WS-C4506-S2+96
- Product Line: Catalyst
- Product Series: 4500
- Product Model: 4506
- Product Name: Catalyst Switch Chassis
- Product Type: Switch Chassis
I/O Expansions of Catalyst 4506 Switch Chassis
- Number of Total Expansion Slots: 6
Network & Communication
- Layer Supported: 4
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
Outline, the WS-C4506-S2+96 Catalyst 4500-E Series switch is a versatile and reliable networking solution designed to meet the demanding requirements of modern enterprise environments. With its modular design, Gigabit Ethernet connectivity, Layer 4 capabilities, and manageability features, it provides the scalability, performance, and flexibility needed to support mission-critical applications and services. Whether deployed in data centers, campus networks, or service provider infrastructures, the WS-C4506-S2+96 switch offers a robust foundation for building scalable and resilient networks.
By understanding its key features, use cases, configuration options, and benefits, organizations can make informed decisions about incorporating the WS-C4506-S2+96 switch into their network infrastructure, ensuring optimal performance, reliability, and manageability for their evolving networking needs.
