Product Information

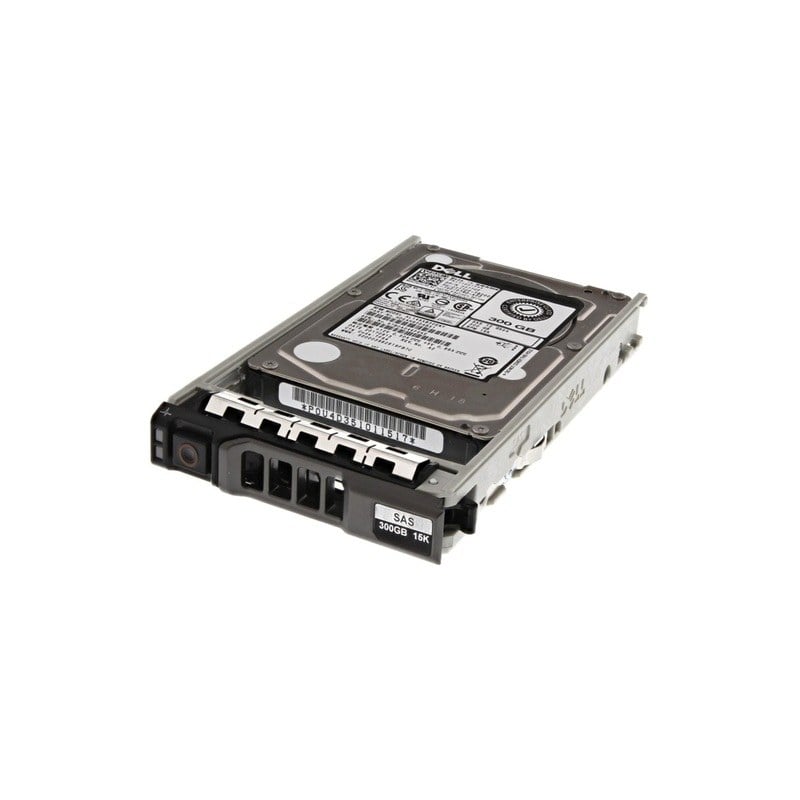

The Dell 0377CF is a hot-swap hard drive with a capacity of 300GB and a spindle speed of 15,000 revolutions per minute (RPM). It is a Serial Attached SCSI (SAS) drive that uses a 12 Gigabits per second (Gbps) interface to transfer data between the drive and the computer. In this article, we will discuss the features and specifications of the Dell 0377CF in detail.
Features of the Dell 0377CF
The Dell 0377CF hard drive is designed to provide high performance and reliability for enterprise-class servers and storage systems. It has a number of features that make it suitable for use in demanding environments:
Capacity: The Dell 0377CF has a capacity of 300GB, which is sufficient for storing large amounts of data.
Spindle speed: The hard drive has a spindle speed of 15,000 RPM, which means that it can read and write data quickly. This makes it suitable for applications that require high-speed data access, such as databases and virtualization.
Interface: The Dell 0377CF uses a SAS interface, which is a high-speed interface that allows for fast data transfer between the drive and the computer. The drive uses a 12 Gbps SAS interface, which is the latest standard for SAS drives.
Hot-swap: The Dell 0377CF is a hot-swappable drive, which means that it can be replaced while the server is still running. This allows for easy maintenance and upgrades without the need to shut down the server.
Compatibility: The Dell 0377CF is compatible with a wide range of Dell PowerEdge servers and storage systems. It is also compatible with other systems that support SAS drives.
Reliability: The Dell 0377CF is designed to be reliable and durable. It has a Mean Time Between Failures (MTBF) of 1.6 million hours, which means that it is unlikely to fail for a long time.
Specifications of the Dell 0377CF
Here are the detailed specifications of the Dell 0377CF hard drive:
Capacity: 300GB
Spindle speed: 15,000 RPM
Interface: SAS 12 Gbps
Form factor: 2.5 inch
Hot-swap: Yes
Compatible systems: Dell PowerEdge servers and storage systems
MTBF: 1.6 million hours
Power consumption: 10 watts (idle), 12 watts (operating)
Noise level: 3.3 bels (idle), 3.6 bels (operating)
The Dell 0377CF hard drive has a 2.5 inch form factor, which means that it is smaller than the standard 3.5 inch drives. This allows for more drives to be installed in the same amount of space, making it ideal for use in servers and storage systems where space is at a premium.
The hard drive has a power consumption of 10 watts when idle and 12 watts when operating. This makes it energy-efficient and helps to reduce the overall power consumption of the server or storage system.
The noise level of the Dell 0377CF is 3.3 bels when idle and 3.6 bels when operating. This is relatively quiet and should not be noticeable in most server rooms or data centers.
In summary
The Dell 0377CF 300GB 15K RPM SAS-12GBPS Hot Swap Hard Drive is a high-performance and reliable drive that is suitable for use in enterprise-class servers and storage systems. It has a capacity of 300GB, a spindle speed of 15,000 RPM, and uses a SAS 12 Gbps interface to transfer data between the drive and the computer.
General Information
- Manufacturer:-Dell
- Part Number or SKU#: 0377CF
- Product Type: Hard Drive
Technical Information
- Capacity : 300 GB
- Form Factor : 2.5 Inch
- Buffer : 128MB
- Interface Type : SAS-12GBPS
- Features : Advanced Format 512n
Performance :
- Spindle Speed : 15K RPM
- Drive Transfer Rate : 1200 MBPS (external)
Expansion / Connectivity :
- Interfaces : 1 X Sas 12GBPS
- Compatible Bays : 1 X Hot-swap - 2.5
Dimension & Weight
- Width: 2.8 Inch
- Depth: 3.9 Inch
- Height: 0.6 Inch
- Weight: 0.50 Lbs
Compatibility :
- Poweredge Fc640
- Poweredge M640
- Poweredge M640 (for Pe Vrtx)
- Poweredge M830 (for Pe Vrtx)
- Poweredge R440
- Poweredge R6415
- Poweredge R7415
- Poweredge R7425
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model's matching features with your current system.
The Serial Attached SCSI (SAS) hard drives have become increasingly popular for their increasing use in high-end workstations and servers. These drives are employed in consumer desktops and modern servers for their speed and reliability. Enterprises have made the SAS hard drives their de-facto standard. Now, the 12Gbps speed throws the usefulness of these drives up a notch.
Most professional hosting providers now use SAS 12Gbps hard drives for data production. These drives have proven useful in high input/output operations and critical website functions. Users trust these drives because there is no risk of data loss, corruption, or downtime.
Faster Throughput
SAS 12Gbps drives read, write, and process data within split seconds. The latest 12Gbps disks use the latest RAID hardware technology to offer faster data transfer and recovery rates. They are perfect for sequential data, high workloads, and random IOPS alike.
This function allows them to be best suited for servers that have 100 percent duty cycles. They do not only work with desktops and PCs, but they can read/write data 24/7.
Higher Performance
SAS 12Gbps HDDs have received the utmost attention in the market as a result of their high performance. These performance benefits allow it to be useful for a wide variety of applications. For instance, a SAS 12Gbps connection can support up to four wide lanes per connection.
Connecting JBOD with these SAS drives can support up to 1200MB/s. These high-performance drives do not only help handle large workloads; they also offer cost-effective expansion to an already robust system.
Also, each 12Gbps high-performance SAS drive can offer users a rotational speed of up to 15000 rpm.
They provide a great bandwidth enough to perform efficiently. The robust performance of SAS 12Gbps drives clearly a worthy investment for improved performance of servers and desktops. They provide very large amounts of storage options and are a cost-effective choice for users.
Utmost Flexibility
Flexibility is one of the best benefits of SAS 12Gbps drives. These drives have configured flexibility, which allows them to work perfectly with several devices without modification or changes. Many of them feature a Universal Serial controller for seamless system support.
SAS 12Gbps hard drives can also be partitioned into a storage pool and assigned to servers for work-intensive applications. They are a perfect fit for server systems, including reservation systems, medical imaging, and more!
Only this range of SAS hard drives can provide users with the best worlds of flexibility. This way, allows them to support use with other drives.
Increased Availability
12Gbps SAS-based storage systems have the benefit of dual-port capability. This allows them to provide a redundant path to the drives in case of controller failover. These drives also operate on separate point-to-point connections. That way, it is rare for drive connection loss to affect them.
SAS 12Gbps HDDs are built to handle the rigours of heavy workloads and enterprise use. They also safeguard data integrity, thanks to their ability to comprehensively verify data and correct errors.Warranty
