Description
Product Overview of the Dell 2C1WW

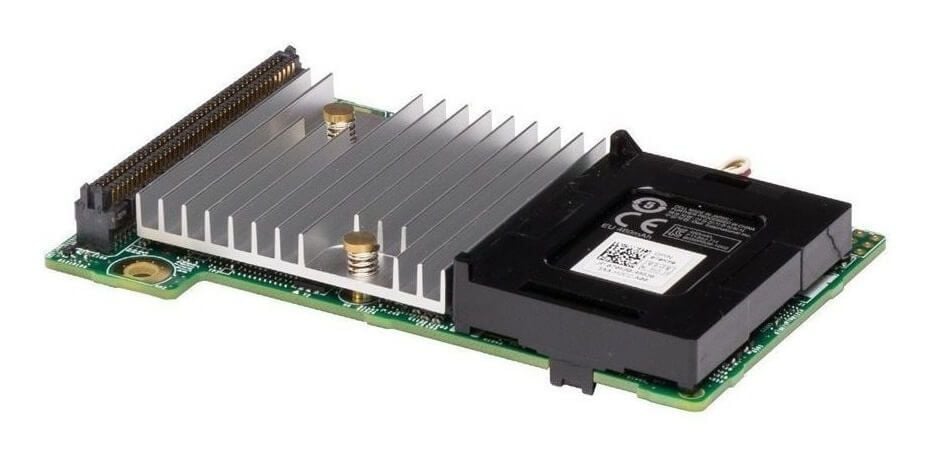

Dell 2C1WW PERC H710 Mini-Blade 6GBPS PCI-E SAS Raid Controller Card with 512MB NV Cache is a hardware component that provides data redundancy, high availability, and improved data transfer rates. It is a RAID controller card that connects to the motherboard of a server and manages multiple hard disk drives to improve storage performance and data reliability. In this article, we will discuss the features and benefits of the Dell 2C1WW PERC H710 Mini-Blade 6GBPS PCI-E SAS Raid Controller Card with 512MB NV Cache.
Features
The Dell 2C1WW PERC H710 Mini-Blade 6GBPS PCI-E SAS Raid Controller Card with 512MB NV Cache is designed to support up to 32 physical drives and up to 192 virtual drives. It uses SAS (Serial Attached SCSI) technology to transfer data between the RAID controller and the hard disk drives. SAS is a high-speed data transfer technology that offers faster data transfer rates than SATA (Serial Advanced Technology Attachment), which is used in traditional hard disk drives.
The RAID controller card has a maximum data transfer rate of 6Gbps (gigabits per second), which is twice as fast as the previous generation RAID controller cards. This means that the Dell 2C1WW PERC H710 Mini-Blade 6GBPS PCI-E SAS Raid Controller Card with 512MB NV Cache can transfer data at a much faster rate, which is beneficial for applications that require high-speed data transfer, such as video editing and data analysis.
The Dell 2C1WW PERC H710 Mini-Blade 6GBPS PCI-E SAS Raid Controller Card with 512MB NV Cache also has a built-in battery backup unit (BBU) that provides power to the card in case of a power failure. This ensures that the card can write data to the hard disk drives even during a power outage, which reduces the risk of data loss.
Another feature of the Dell 2C1WW PERC H710 Mini-Blade 6GBPS PCI-E SAS Raid Controller Card with 512MB NV Cache is its support for RAID levels 0, 1, 5, 6, 10, 50, and 60. RAID levels are different configurations of hard disk drives that offer various levels of data redundancy and performance. RAID 0 offers no redundancy but provides the highest performance, while RAID 6 offers double parity for improved data redundancy.
Benefits
The Dell 2C1WW PERC H710 Mini-Blade 6GBPS PCI-E SAS Raid Controller Card with 512MB NV Cache provides several benefits to businesses and organizations that rely on data storage and processing. Here are some of the benefits of the RAID controller card:
Improved Data Transfer Rates
The Dell 2C1WW PERC H710 Mini-Blade 6GBPS PCI-E SAS Raid Controller Card with 512MB NV Cache offers faster data transfer rates than previous generation RAID controller cards. This means that businesses and organizations can transfer data at a much faster rate, which is beneficial for applications that require high-speed data transfer, such as video editing and data analysis.
Increased Data Reliability
The RAID controller card offers support for RAID levels 0, 1, 5, 6, 10, 50, and 60. These RAID levels provide various levels of data redundancy and performance, which improves data reliability. Businesses and organizations can choose the RAID level that best suits their needs and ensure that their data is protected from hardware failures.
General Information about the Dell 2C1WW
- Manufacturer : Dell
- Part Number or SKU# 2C1WW
- Type : Controller
- Sub-Type : SAS Controller
Technical Information
- Device Type: PERC H710 MINI-Blade
- Controller Interface Type: 6GB/S SAS
- PCI Support : PCI-Express 2.0
- Data Transfer Rate: 6GB/S Throughput Per Port
- Buffer Size: 512MB NV
- Raid Levels : 0,1,5,6,10,50,60
- Raid Support: Hardware Raid
- SAS Connectors: 1×4 Internal
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
