The HP 518194-002 is an enterprise-level hard disk drive that is designed for use in servers. This particular model has a storage capacity of 300 gigabytes (GB) and operates at 10,000 revolutions per minute (RPM). The drive uses a Serial-Attached SCSI (SAS) interface and has a maximum data transfer rate of 6 gigabytes per second (GBPS). It is a 2.5-inch small form factor (SFF) drive and comes with a tray for easy installation into compatible server systems.
The HP 518194-002 has a storage capacity of 300 GB. This means that it can store up to 300 billion bytes of data. This capacity is suitable for use in servers that require high-performance storage for applications and data that are critical to the business.
The 10,000 RPM speed of the HP 518194-002 drive is considered to be high when compared to other hard drives that operate at lower speeds. The faster the drive spins, the quicker it can access data stored on the disk. This is especially important in a server environment where large amounts of data need to be accessed quickly to maintain high system performance.
Serial-Attached SCSI (SAS) Interface
The HP 518194-002 uses a Serial-Attached SCSI (SAS) interface to connect to the server. SAS is a high-speed interface that is used in enterprise-level storage systems. It is designed to provide faster data transfer rates, higher reliability, and better scalability than other storage interfaces such as SATA (Serial ATA).
Data Transfer Rate
The maximum data transfer rate of the HP 518194-002 is 6 GBPS. This means that the drive can transfer up to 6 gigabytes of data per second. This is a high transfer rate and is ideal for use in servers that need to move large amounts of data quickly. The high data transfer rate is made possible by the SAS interface and the 10,000 RPM speed of the drive.
2.5-Inch Small Form Factor (SFF)
The HP 518194-002 is a small form factor (SFF) drive that measures 2.5 inches in size. This makes it smaller and more compact than traditional 3.5-inch hard drives. The small size of the drive makes it ideal for use in servers where space is at a premium. SFF drives are also used in other applications such as laptops and other portable devices where a smaller form factor is desired.
The HP 518194-002 is an enterprise-level hard drive that is designed for use in servers. Enterprise-level drives are designed to be more reliable and durable than consumer-level drives. They are built to withstand the high demands of a server environment and are capable of running 24/7 without failure. The HP 518194-002 is no exception and is designed to deliver reliable performance for mission-critical applications.

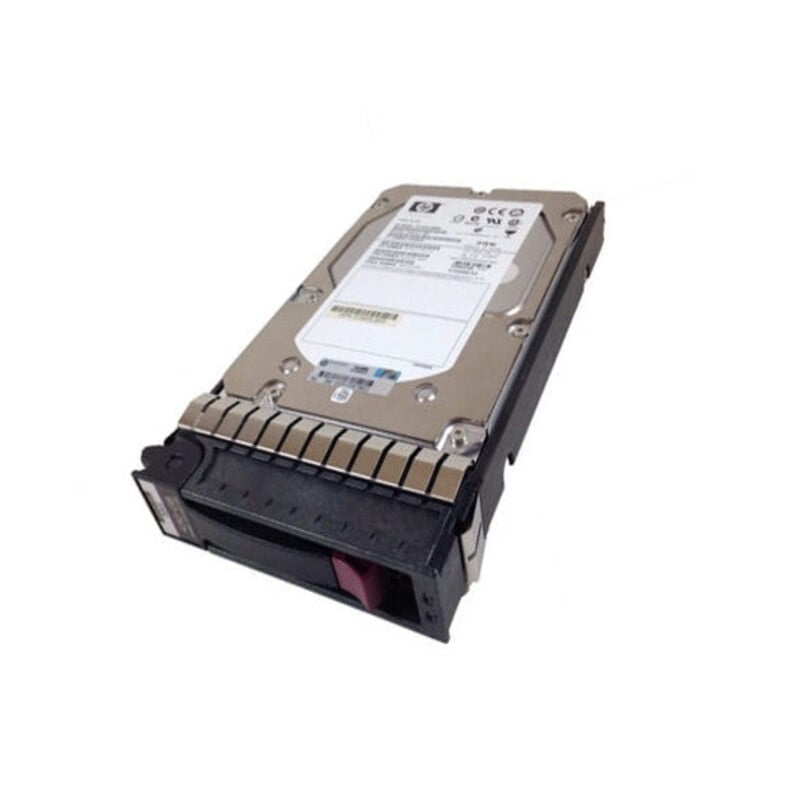

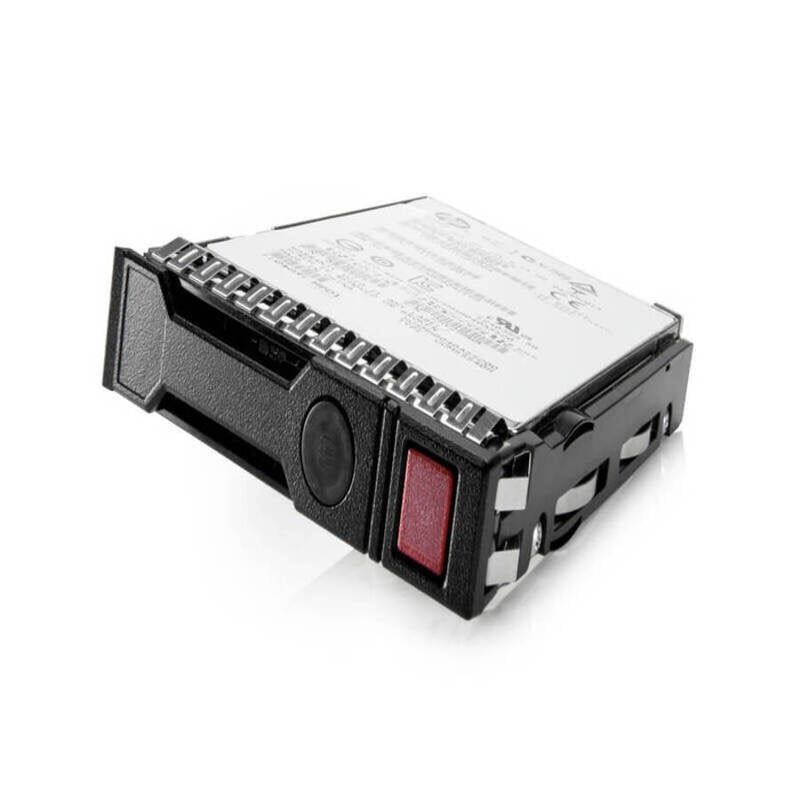

Tray for Easy Installation
The HP 518194-002 comes with a tray for easy installation into compatible server systems. The tray makes it easy to install the drive into the server and ensures that it is properly seated in the drive bay. The tray also helps to protect the drive from damage during installation and removal.
In Summary, the HP 518194-002 is a high-performance enterprise-level hard disk drive that is designed for use in servers. It has a storage capacity of 300 GB, operates at 10,000 RPM, and uses a Serial-Attached SCSI (SAS) interface. The maximum data transfer rate of the drive is 6 GBPS, and it is a 2.5-inch small form factor (SFF) drive that comes with a tray for easy installation.
General Information about the HP 518194-002
- Manufacturer Name: HP
- Part Number or SKU# 518194-002
- Type: Hard Drive - Hot-Swap
- HDD Type: SAS 6GBPS
- Option Part Number: 507127-B21
- Spare Part Number: 507284-001
- Model Number: DG0300FARVV
- HP GPN: 507129-004
- Capacity: 300 GB
- Form Factor: 2.5 Inch SFF
- Interface: SAS 6GBPS
- Bytes per Sector: 512
- Drive Technology (Fill): Air
- Carrier Type: Standard Carrier
- Workload: Enterprise
- Features: Dual Port
- Bundled with: HP Standard Carrier
- Enclosure Type: Hot-Swap
- Drive Transfer Rate: 600 MBPS (External)
- Spindle Speed: 10000 RPM
- Seek Time: 4 MS (Average) / 7.45 MS (Max)
- Track-to-Track Seek Time: 0.2 MS
- Interfaces: 1 x SAS 6GB/S (Serial Attached SCSI 2)
- Compatible Bays: 2.5 Inch SFF
Dimension and Weight
- Width: 2.8 Inch
- Depth: 3.9 Inch
- Height: 0.6 Inch
- Weight: 0.50 LBS
- Max Operating Temperature: 35 °C
- Min Operating Temperature: 10 °C
- HP Integrity BL Series: BL860c i2, BL870c i2, BL890c i2 Servers
- HP ProLiant BL Series: BL460c G6, BL460c G7, BL465c G6, BL465c G7, BL620C G7, BL680c G7, BL685c G6, BL685c G7 Servers
- HP ProLiant DL Series: DL160 G6, DL160se G6, DL165 G7, DL165 G7 Performance, DL180 G6, DL320 G6, DL360 G6, DL360 G6 Base, DL360 G6 Efficiency, DL360 G6 Entry, DL360 G6 Performance, DL360 G7, DL360 G7 Base, DL360 G7 Central Management Server, DL360 G7 Efficiency, DL360 G7 Entry, DL360 G7 Performance, DL370 G6, DL370 G6 Base, DL370 G6 High Performance, DL370 G6 Performance, DL380 G6, DL380 G6 Base, DL380 G6 Entry, DL380 G6 High Efficiency, DL380 G6 Performance, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL385 G6, DL385 G6 Base, DL385 G6 Entry, DL385 G6 High Performance, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL580 G5 Highly Serviceable Tower, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, DL585 G5 Performance, DL585 G6, DL585 G6 Base, DL585 G6 Performance, DL585 G7, DL585 G7 Base, DL585 G7 Performance, DL785 G6, DL785 G6 Base, DL785 G6 Performance, DL980 G7 Servers
- HP ProLiant ML Series: ML110 G7, ML350 G6, ML350 G6 Base, ML350 G6 Performance, ML370 G6, ML370 G6 Base, ML370 G6 Entry Servers
- HP ProLiant WS Series: WS460c G6 Workstation Blade
- HP Modular Smart Array: P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit
- HP StorageWorks D2200sb PCIe Storage Blade
- HP StorageWorks Disk Enclosure D2700
- HP StorageWorks Modular Smart Array: 2324fc G2 Dual Controller, 2324sa G2 DL380 G6 Package Cluster, 2324sa G2 Dual Controller, 70 Dual Domain, P2000 2.5-in Drive Bay Chassis and P2000 G3 FC/iSCSI Dual Combo Controller SFF Array
- HP StorageWorks Network Storage Blade X1800sb G2
- HP StorageWorks Network Storage Gateway X3800sb G2
- HP StorageWorks Network Storage System: X1600, X1600 292GB SAS Model, X1600 3TB SAS Model, X1600 5.4TB SAS Model, X1600 7.5TB SAS Model, X1600 G2, X1800, X1800 2.4TB SAS Model, X1800 292GB SAS Model, X1800 3.6TB SAS Model and X1800 G2
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model's matching features with your current system.
