Description
Introduction to HP Switch

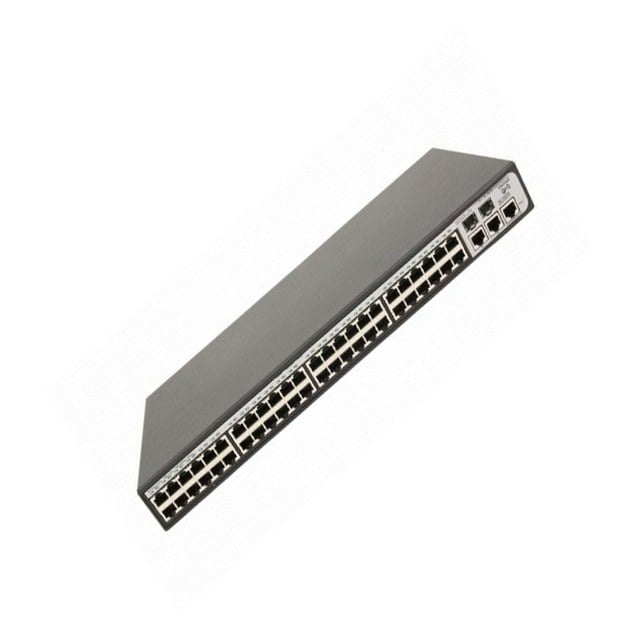

The HP 3800-48G-PoE+-4sfp+ L3 Managed switch, also known as J9574-61201, is a high-performance networking device designed for small to medium-sized enterprises. It is a rack-mountable switch with 48 10/100/1000 Ethernet ports that support Power over Ethernet (PoE) and 4 10 Gigabit Ethernet/1 Gigabit Ethernet SFP+ ports for high-speed connectivity.
The switch has advanced Layer 3 functionality and is fully managed, allowing for robust network management and monitoring. This makes it ideal for large networks with complex topologies that require dynamic routing and traffic management capabilities. The switch also supports various advanced features such as Quality of Service (QoS), Virtual LANs (VLANs), Link Aggregation Control Protocol (LACP), and Spanning Tree Protocol (STP) to ensure network reliability and security.
Network Connectivity
J9574-61201 HP 3800-48G-PoE+-4sfp+ L3 Managed Switch is a network connectivity device designed for use in a rack-mountable environment. It has 48 ports for 10/100/1000 (PoE) connectivity and 4 ports for 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ connectivity. The switch is managed, meaning it can be configured and monitored through a web-based interface or command line interface.
The PoE (Power over Ethernet) capability of the switch allows it to power compatible devices, such as phones and cameras, through the Ethernet cable, eliminating the need for additional power sources. The SFP+ ports provide high-speed connectivity for demanding network applications.
The switch also features Layer 3 (L3) management, which provides advanced network routing and management capabilities, allowing for a more efficient and scalable network.
Power over Ethernet (PoE) Support
The J9574-61201 HP 3800-48G-PoE+-4sfp+ L3 Managed Switch is a 48-port gigabit Ethernet switch with 4 additional 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ ports. It is a rack-mountable switch and supports Power over Ethernet (PoE) for powering connected devices. The switch is managed, meaning that it has the ability to configure, monitor and manage network traffic, making it ideal for use in enterprise networks. The 48 gigabit Ethernet ports support 10/100/1000 speeds and provide PoE support for connected devices, eliminating the need for separate power supplies. The 4 additional SFP+ ports provide high-speed connectivity for high-bandwidth applications such as video streaming, virtualization and storage.
General Information about the HPE J9574-61201
- Manufacturer: HP
- Model Number or SKU# J9574-61201
- Type: Networking
- Sub-Type: Switch 48 Ports
- Device Type : Switch – 48 Ports – L4 – Managed
- Enclosure Type : Rack-Mountable – 1u
- Ports : 48 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+
- Power Over Ethernet (Poe) : Yes
- Performance : Throughput : 130.9 Mpps ¦ Switching Capacity : 176 Gbps
- Capacity Routing Table Entries : 10000
- Mac Address Table Size : 65500 Entries
- Jumbo Frame Support : Yes
- Routing Protocol : Ospf, Rip-1, Rip-2, Igmp, Vrrp, Ospfv2, Pim-Sm, Static Ip Routing, Pim-Dm, Igmpv3, Ospfv3, Mldv2, Mld
- Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Https, Cli
Features
- Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Auto-Uplink (Auto Mdi/Mdi-X), Igmp Snooping, Diffserv Support, Ipv6 Support, Sflow, Virtual Route Redundancy Protocol (Vrrp) Support, Multiple Spanning Tree Protocol (Mstp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Mld Snooping, Poe+, Stp Root Guard, Uni-Directional Link Detection (Udld), Fan Tray
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.3at
POWER
- Ac 120/230 V ( 50/60 Hz )
