Description
Performance and Scalability

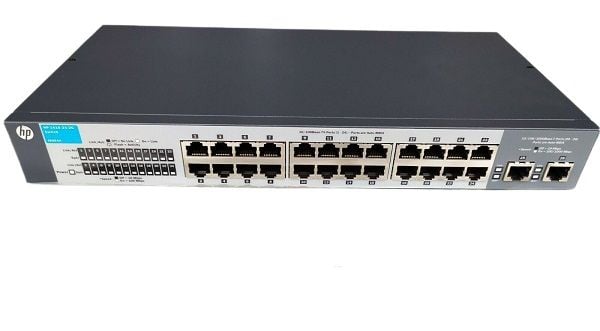

The HP J9664A V1410 24 Port L3 Unmanaged Rack-mountable Switch is a basic, cost-effective network switch designed for small and medium-sized businesses. It supports Layer 3 routing, which allows for more advanced network segmentation and traffic management.
In terms of performance, the switch offers fast data transfer speeds, with a switching capacity of up to 48 Gbps and wire-speed performance. It also supports Quality of Service (QoS) for prioritizing network traffic, and supports jumbo frames for large data transfers.
In terms of scalability, the J9664A V1410 24 Port L3 Unmanaged Rack-mountable Switch is limited in its expansion capabilities, as it only has 24 ports. It is not designed to be used as a core switch in a large network, but rather as an edge switch in a smaller network. However, multiple switches can be connected together to expand the network and increase the number of available ports.
Enhanced Network Security and Access Control
The J9664AS HP V1410 24 Ports L3 Unmanaged Rack-mountable Switch is designed with enhanced network security and access control features to ensure the security and stability of your network.
Access control: This switch provides the ability to control access to the network based on the MAC address of the devices connected to it. This means that only authorized devices can access the network, helping to prevent unauthorized access or hacking attempts.
Network security: The switch includes security features such as port security, which limits the number of devices that can be connected to a specific port. This helps to prevent unauthorized access or hacking attempts through the port. Additionally, the switch supports advanced security protocols such as 802.1X, which helps to secure user authentication and prevent unauthorized access.
Encryption: The switch supports encryption protocols such as SSL and TLS, which encrypt the data being transmitted across the network to prevent unauthorized access or eavesdropping.
Rack-mountable design: The switch’s rack-mountable design makes it easy to install and secure in a data center environment, helping to prevent unauthorized access or tampering.
Quality of Service
HP J9664AS V1410 24 Ports L3 Unmanaged Switch is a basic Layer 3 switch that provides reliable data forwarding and minimal network management features. The switch does not support Quality of Service (QoS) which is a set of technologies used to manage network traffic and prioritize certain types of data to ensure optimal network performance. QoS is important in networks where there is limited bandwidth and competing demands for network resources. In the absence of QoS in the J9664AS V1410 switch, network administrators will have to rely on other methods to manage network traffic and ensure that critical applications receive sufficient bandwidth.
Detail Description
- Manufacturer: HP
- MPN: J9664AS
- Type : Networking
- Switch-Type : Switch 24 Ports
- SKU: J9664AS
- Enclosure Type : Desktop, Rack-Mountable, Wall-Mountable
- Ports : 24 X 10/100 + 2 X 10/100/1000
- Performance : Switching Capacity : 8.8 Gbps Throughput : Up To 6.5 Mpps
- Mac Address Table Size : 8k Entries
- Jumbo Frame Support : 9216
- Features : Flow Control, Auto-Negotiation, Auto-Uplink (Auto Mdi/Mdi-X), Half Duplex Mode, Full Duplex Mode, Quality Of Service (Qos), Jumbo Frames Support, Fanless
- Compliant Standards : Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3az
Expansion / Connectivity:
- Interfaces : 24 X 10base-T/100base-Tx – Rj-45 2 X 10base-T/100base-Tx/1000base-T – Rj-45
- Power:
- Power Device : Power Adapter
- Voltage Required : Ac 120/230 V ( 50/60 Hz )
- Power Consumption Operational : 10.8 Watt
Dimension and Weight
- Width: 13.23inch
- Depth: 6.65inch
- Height: 1.73inch
- Weight: 3 Lbs
