Network Connectivity and Expansion Slots

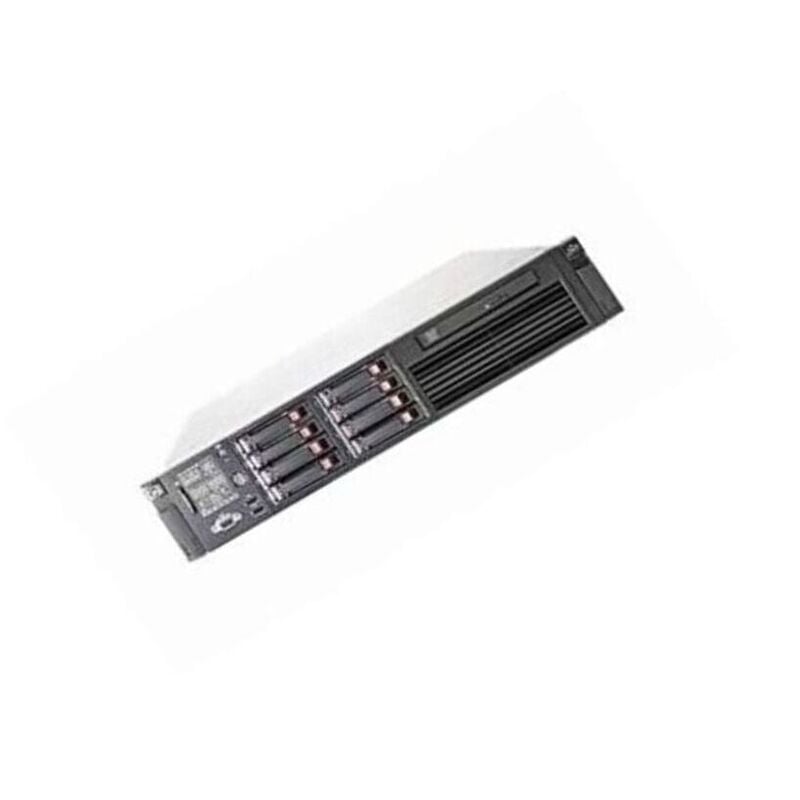

The HPE Proliant DL380 G6 8SFF-2p Intel Xeon Quad-core 2.8GHz, 2x 750w Ps 2-way 2u Rack Server comes with the following network connectivity and expansion slots:
- Network Connectivity: The server comes with two embedded NC382i Dual Port Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing kit. It also has an optional FlexibleLOM (LAN-on-Motherboard) port for added network connectivity options.
- Expansion Slots: The server has three PCI-Express Gen 2 expansion slots as follows:
- One full-length, full-height x16 slot (PCIe 2.0)
- One low-profile x8 slot (PCIe 2.0)
- One low-profile x4 slot (PCIe 2.0)
Additionally, the server has two PCI-X slots (one 64-bit/133MHz, and one 64-bit/100MHz), which can be used with optional PCI-X riser cards.
RAID Support and Configuration Options
The HPE Proliant DL380 G6 8SFF-2p Intel Xeon Quad-core 2.8GHz server supports a variety of RAID configurations using the embedded Smart Array P410i RAID controller. The available RAID levels include:
- RAID 0 - This level provides striping across multiple disks without parity or mirroring, providing improved performance but no data redundancy.
- RAID 1 - This level provides mirroring across two disks, offering data redundancy but no performance benefits.
- RAID 5 - This level provides striping with distributed parity across multiple disks, offering both improved performance and data redundancy.
- RAID 6 - This level provides striping with dual distributed parity across multiple disks, offering improved performance and even greater data redundancy.
- RAID 10 - This level provides a combination of mirroring and striping, providing both improved performance and data redundancy.
To configure RAID on the HPE Proliant DL380 G6, you can use the Smart Array Configuration Utility (ACU) that is available during server boot-up. You can also use the HPE Smart Storage Administrator (SSA) tool to configure and manage the RAID controller after the operating system has been installed.
It's important to note that the specific RAID configuration options available to you may depend on the number and type of hard drives installed in the server. It's recommended to refer to the server documentation or consult with an expert before configuring RAID on the server to ensure the best performance and data protection for your specific needs.
Operating System Support and Compatibility
The HPE 491315-001 Proliant DL380 G6 server supports a variety of operating systems. Here are the supported operating systems for this server:
- Microsoft Windows Server 2019
- Microsoft Windows Server 2016
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2
- Microsoft Windows Server 2008
- Red Hat Enterprise Linux 8
- Red Hat Enterprise Linux 7
- SUSE Linux Enterprise Server 15
- SUSE Linux Enterprise Server 12
General Information About this HPE 491315-001
- Manufacturer Part Number: 491315-001
- Brand Name: HPE
- Product Type: Server
- Server Type: Proliant DL380
Key Feature of Intel Xeon Quad-core 2.8GHz
- Number of Processors Supported 2
- Number of Processors Installed 2
- Processor Manufacturer Intel
- Processor Type Xeon
- Processor Model X5560
- Processor Core Quad-core (4 Core)
- Processor Speed 2.80 GHz
Memory for Proliant DL380 8SFF Server
- Standard Memory 12 GB
- Maximum Memory 144 GB
- Memory Technology DDR3 SDRAM
- Number of Total Memory Slots 18
Storage of HPE Rack Server
- Optical Drive Type DVD-Writer
- Controllers
- Controller Type Serial Attached SCSI (SAS)
- RAID Supported Yes
- RAID Levels 0, 1, 5, 6, 10, 50
Display & Graphics
- Graphics Controller Manufacturer ATI
- Graphics Controller Model ES1000
- Graphics Memory Capacity Up to 32 MB
- Network & Communication
- Ethernet Technology Gigabit Ethernet
Power Description
- Input Voltage 110 V AC
- 220 V AC
- Number of Power Supplies Installed 2
- Maximum Power Supply Wattage 1500 W
Miscellaneous
- Environmentally Friendly Yes
- Environmental Certification WEEE
- Physical Characteristics
- Form Factor Rack
- Rack Height 2U
Weight & Dimension
- Height: 3.38 Inch
- Width: 17.54 Inch
- Depth: 27.25 Inch
- Weight: 47.18 Lbs
About Refurbished Products
Server - ProLiant DL380
Updated looks, better design, advanced bezel, and scalable processors are all features for the HP ProLiant DL380. This DL380 listened to every tech-savvy's needs who dreamt of having the performance, expandability, and scalability in a single server. That's where this ProLiant Server fits in! This versatile model features plenty of configurations that offer flexible operations and diversify the workload using containers, clouds, and virtualization.
We, at ALLHDD, have got you covered with a range of HPE ProLiant DL380 servers from Xeon or Xeon 1.90GHz to Xeon 3.9GHz. Within this range, plenty of models fall in to let the users get what they have dreamt of for years. Here's what you need to know more about the ProLiant DL380 Gen10 Server.
Intel Xeon's Scalable Processor Chipset Support:
Performance and accuracy are what a user craves in small or large-scale businesses! Worry not, as this HPE ProLiant is equipped with Intel's new C621 chipset, which falls in the scalable family. This chipset made this HP ProLiant DL380 compatible with the Platinum 8100 series, 6100 and 5100 Gold series, and the Bronze 3100 series. All in all, you can get up to 28 cores as per your need or demand. This way, your server will manage more workload in a single chassis with more containers. The flexible power slots enable the users to integrate the right-size PSUs, enhancing their overall efficiency by 14 to 16%.
HPE Persistent Memory:
HP ProLiant DL380 can achieve a faster and quicker response with each processor backed up by the six memory slots. The two more memory modules further support these six memory channels. Total 14 DDR4 memory modules can raise the speed values to 2666 MT/s which is more than enough by a Gen10 ProLiant server. Moreover, multiple configuration support has provided the storage solution to many tech-savvies as the server is compatible with UDIMM, LRDIMM, and RDIMM.
Flexible Storage and Configuration:
HPE Proliant DL380 supports the flexible storage option, which can even support up to 190 TB via the front-mounted drives. Moreover, 4 LLF drives can sit the processors and CPUs above to extract performance and speed. This HPE server is equipped with an 8 LFF drive with Universal Media Bay and can support 24 SFF drives with optional mid-plane and rear-mount.
We, at ALLHDD, have covered you with the whole range of DL380, including Xeon 1.90GHz, Xeon 2.13GHz, Xeon 2.26GHz, Xeon 2.3GHz, Xeon 2.4GHz, Xeon 2.5GHz, Xeon 2.53GHz, Xeon 2.66GHz, Xeon 2.67GHz, and more Xeon 2.8GHz.
HPE iLO5- Latest Management System:
This Gen10 Server can be managed via the latest iLO5 by the HPE ILO. Not only can it enable remote access, but it delivers the simplified operation ability.
