Description
Easy Installation and Compatibility

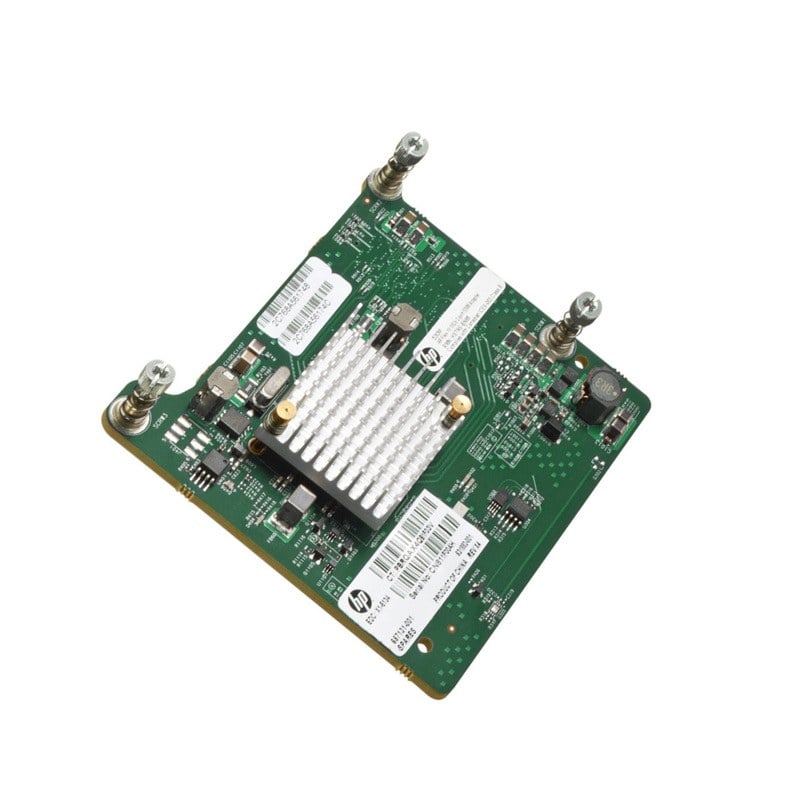

- Easy installation: The 631884-B21 HPE 530M Wired 10GBPS PCI Express Ethernet 2 Ports Network Adapter is designed to be easy to install, with simple plug-and-play functionality.
- Compatibility: The adapter is compatible with a wide range of HPE servers, ensuring seamless integration and compatibility with existing infrastructure.
- High-speed data transfer: The adapter supports 10 Gbps data transfer speeds, providing fast and reliable performance for data-intensive applications.
- Dual ports: The adapter has two ports, providing increased connectivity and flexibility for the network.
- Improved network efficiency: The adapter supports advanced features such as flow control, jumbo frames and VLAN tagging, which can help to improve network efficiency and performance.
- Reduced latency: The adapter uses advanced technologies such as TCP/IP offload engine (TOE) and Receive Side Scaling (RSS) to reduce latency and improve overall performance.
- Energy-efficient: The adapter is designed to be energy-efficient, helping to reduce power consumption and lower energy costs.
- Easy to manage: The adapter can be easily managed and configured using HPE’s network management software, making it simple to monitor and troubleshoot network issues.
- Cost-effective: The 631884-B21 HPE 530M Wired 10GBPS PCI Express Ethernet 2 Ports Network Adapter is a cost-effective solution for upgrading network performance and connectivity.
- Warranty: The adapter comes with a limited lifetime warranty, providing added peace of mind and protection for the investment.
Improved Latency and Network Performance
The HPE 530M Wired 10GBPS PCI Express Ethernet 2 Ports Network Adapter (part number 631884-B21) is a high-performance network adapter that provides improved latency and network performance. This adapter is designed to deliver high-speed data transfer rates of up to 10 Gbps, which is ideal for high-bandwidth applications such as video streaming, data backup, and data replication.
The adapter features advanced networking features such as support for TCP/IP offload engine (TOE), Receive Side Scaling (RSS), and Large Send Offload (LSO) to improve network performance and reduce CPU utilization. It also supports advanced features such as VLAN tagging and Quality of Service (QoS) to help prioritize network traffic and ensure that critical applications receive the bandwidth they need.
The HPE 530M Wired 10GBPS PCI Express Ethernet 2 Ports Network Adapter also features a low-profile design that is ideal for use in small form factor (SFF) and ultra-small form factor (USFF) servers. It is compatible with a wide range of operating systems, including Windows, Linux, and VMware, and can be easily installed using the included driver and software.
High-speed data transfer
The HPE 530M Wired 10GBPS PCI Express Ethernet 2 Ports Network Adapter (631884-B21) is designed for high-speed data transfer, with a maximum data transfer rate of 10 Gbps per port. This allows for faster data transfer between devices and networks, making it ideal for use in high-performance computing environments, data centers, and other applications that require fast data transfer. The adapter is also designed to be compatible with a wide range of operating systems and servers, making it easy to integrate into existing IT infrastructure.
General Information
Manufacturer: HPE
MPN: 631884-B21
Type: Networking
SKU: 631884-B21
Spare Part: 657131-001
Adapter Type : Network Adapter – 2 Ports
Interface (Bus) Type : Pci Express 2.0 X8
Networking
Connectivity Technology : Wired
Data Link Protocol : Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate : 10 GBPS
Features : Vlan Support, Tcp/Ip Offloading, Quality Of Service (Qos), Jumbo Frames Support, Pxe Support, Receive Side Scaling (Rss)
Compliant Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (Lacp), IEEE 802.3ae, IEEE 802.3ap
Processor/Memory:
Processor: 1 x BCM57810S – Broadcom
RAM: 900 MB
Miscellaneous
Compliant Standards: FCC Class A certified, VCCI, EN55022, ICES-003, IEC 60950, EN55024, UL 60950, CSA 22.2 No. 60950, MIC, AS/NZS 3548, FCC CFR47 Part 15, WEEE, RoHS, ACA
System Requirements:
OS Required: SunSoft Solaris 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 11 SP1, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, SuSE Linux Enterprise Server 10 SP4
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 – 90% (non-condensing)
Compatibility Information
HPE ProLiant BL420c G8 G9 (Gen8 Gen9) HPE ProLiant BL460c G8 G9 (Gen8 Gen9) HPE ProLiant BL465c G8 G9 (Gen8 Gen9) HPE ProLiant BL660c G8 G9 (Gen8 Gen9)
