Description
Performance features

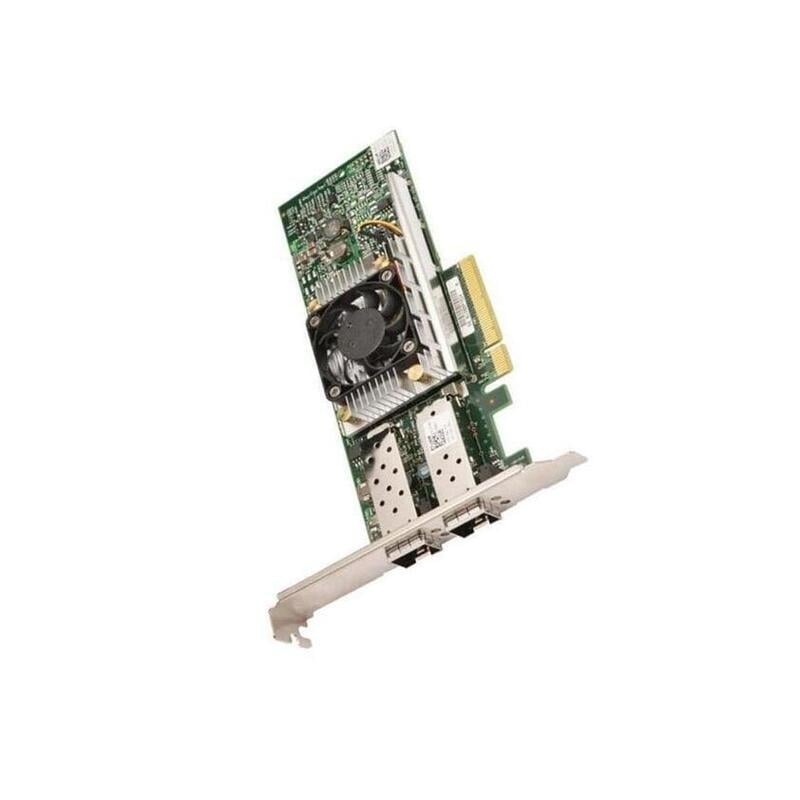

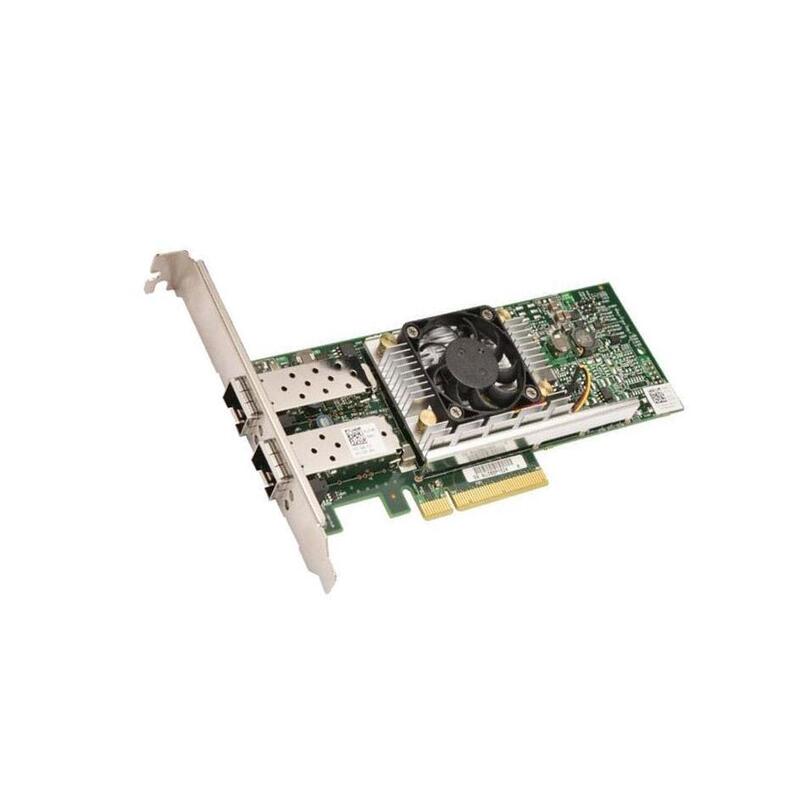

- High-speed connectivity: The HPE Ethernet 10GBPS PCI-E 10GB 2-Ports 560SFP+ Network Adapter offers a 10 Gbps data transfer rate, providing fast and efficient communication between devices.
- Dual-port design: The adapter features two SFP+ ports, which allows for the connection of two devices simultaneously, increasing the number of available connections.
- PCI Express interface: The adapter utilizes a PCI Express interface, which is a high-speed bus that allows for faster data transfer and better performance than traditional PCI interfaces.
- SFP+ transceiver support: The adapter supports SFP+ transceivers, which are small form-factor pluggable modules that provide a high-speed connection for fiber-optic and copper cables.
- Low-profile design: The adapter has a low-profile design, making it easy to install in small form factor servers and workstations.
- Advanced features: The adapter supports advanced features such as Jumbo Frames, Flow Control, and VLAN tagging, which can help optimize network performance and increase security.
- Enhanced security: The adapter supports features such as Advanced Encryption Standard (AES) and Secure Hash Algorithm (SHA) to provide enhanced security for data transmission.
Connectivity Options
The 669279-001 HPE Ethernet 10GBPS PCI-E 10GB 2-Ports 560SFP+ Network Adapter is a high-performance network adapter that provides connectivity options for 10 Gigabit Ethernet (10 GbE) networks. It has two ports that support the use of Small Form-Factor Pluggable (SFP+) transceivers, which are high-speed optical modules used for data transfer over fiber optic cables. These transceivers can support a wide variety of data rates, distances, and wavelength options, making the adapter suitable for a variety of networking environments.
The adapter also has a PCI Express (PCI-E) interface, which is a high-speed bus that connects the adapter to the host computer. This interface supports a wide range of data transfer rates, making it suitable for use in servers and other high-performance computing applications.
Additionally, the adapter supports advanced features such as Virtual Machine Device Queues (VMDq), which improves the performance of virtualized environments by reducing CPU overhead, and Single Root I/O Virtualization (SR-IOV), which allows multiple virtual machines to share a single physical network interface.
Operating system support
The 669279-001 HPE Ethernet 10GBPS PCI-E 10GB 2-Ports 560SFP+ Network Adapter is supported by a variety of operating systems, including Windows, Linux, and VMware. Windows support includes Windows Server 2008 R2, Windows Server 2012 R2, and Windows Server 2016. Linux support includes Red Hat Enterprise Linux (RHEL) 6 and 7, SUSE Linux Enterprise Server (SLES) 11 and 12, and Ubuntu 14.04 and 16.04. VMware support includes VMware vSphere 5.5, 6.0, and 6.5. Additionally, this network adapter is also compatible with other operating systems that support the standard 10 Gigabit Ethernet (10 GbE) driver. This allows for a wide range of compatibility and easy integration into various server environments.
Main Specifications:
Manufacturer: HPE
MPN: 669279-001
Option Part Number: 665249-B21
Type: Networking
Adapter Type: Network Adapter (HPE Ethernet 10Gb 2-port 560SFP+ Adapter)
Form Factor: Stand Up – Plug-in Card
Interface (Bus) Type: PCI Express 2.0 x8
SKU: 669279-001
PCI Specification Revision: PCI 2.0
Bundled with: Low Profile Bracket
Networking:
Connectivity Technology: Wired
Data Link Protocol: 10 Gigabit Ethernet
Data Rate: 2 port, each at 10Gbps
Features: VLAN support, IPv6 support, Jumbo Frames support, IPv4 support, PXE support, TCP Segmentation Offload (TSO)
Network / Transport Protocol: TCP/IP, UDP/IP
Ports: 10Gb Ethernet x 2
Status Indicators: Port status, link/activity
IEEE Compliance: 802.3, 802.1ab, 802.3x, 802.3ad, 802.1p/ 802.1q, 802.3ae, 802.1Qau, 1588
Expansion / Connectivity
Compatible Slots: 1 x PCI Express 2.0 x8
Interfaces: 2 x 10Gb Ethernet – SFP+
Processor / Memory:
Network Processor: Intel® 82599 Controller (Intel® Ethernet Converged Network Adapter X520-DA2)
RAM: 256 MB
Power:
Power Consumption Operational: 10 Watt
Miscellaneous
Compliant Standards: FCC Class A certified, UL, BSMI, VCCI Class B ITE, BSMI CNS 13438 Class B, ICES-003, EN55024, CISPR 22, EN55022 Class B, FCC Part 15, WEEE, RoHS, EN 61000-3-2:2006, EN 61000-3-3:2008
Environmental Parameters
Operating Temperature: 0° to 55°C (32° to 131°F)
Non-Operating Temperature: -65° to 85° C (-85° to 185° F)
Operating Humidity: 10% to 90% non-condensing
Non-operating Humidity: 5% to 95% non-condensing
Compatibility:
HPE ProLiant DL Series: DL160 Gen8, DL160 Gen8 Base, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 CMS, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL80 Gen9 Entry
HPE ProLiant ML Series: ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML30 Gen9, ML30 Gen9 Base, ML30 Gen9 Entry, ML30 Gen9 Performance, ML30 Gen9 Solution, ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Special Server
HPE ProLiant XL Series: XL170r Gen9, XL190r Gen9, XL270d Gen9
HPE SimpliVity 380 Gen9 Node
HPE StoreEasy 1450, 1850, 3850 Gateway Single Node
