Description
Power Consumption and Reliability

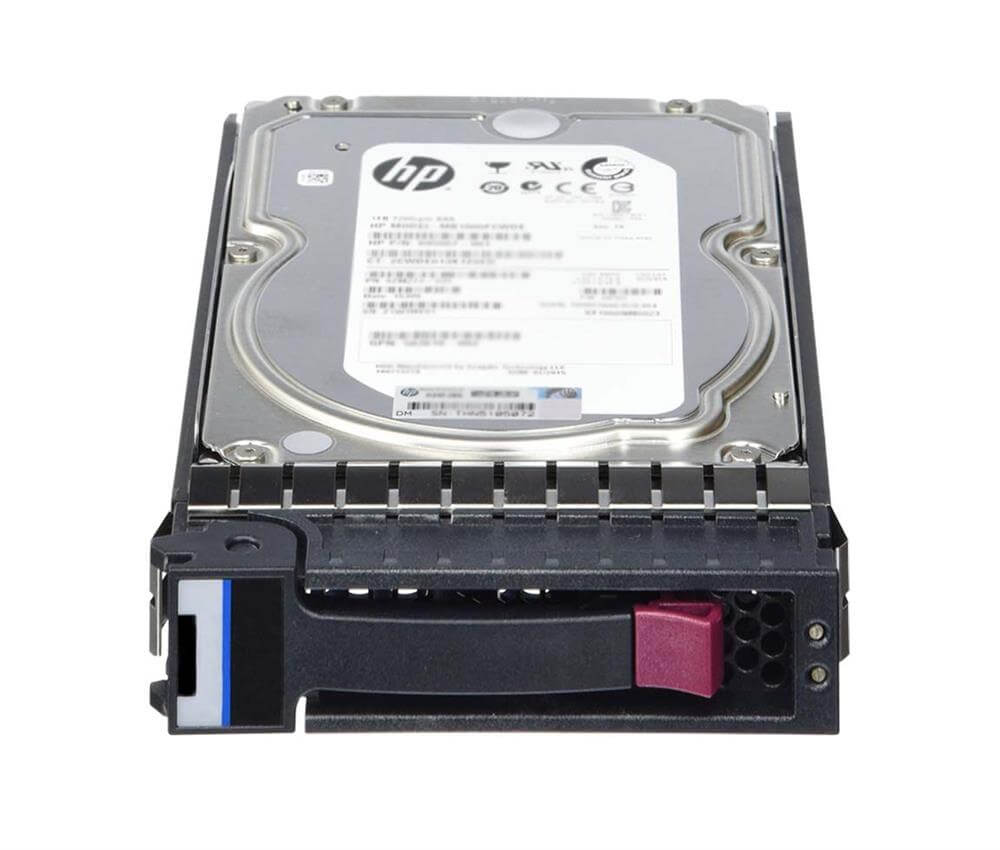

The HPE 695507-008 hard drive is designed for reliability and performance in enterprise-level storage systems and servers. It utilizes a 7200 RPM spindle speed, which allows for faster data access and improved performance.
In terms of power consumption, this hard drive uses the standard 12V and 5V power connectors and it requires an average of 8.5W during idle and 10.9W during seek operations. The drive also supports advanced power management features that allow it to conserve power when not in use, reducing the overall power consumption and helping to lower operating costs.
Additionally, this drive has a MTBF (Mean Time Between Failure) rating of 1.4 million hours, which means that it has been designed and tested to operate continuously for a very long time without failure. This high MTBF rating, along with its advanced power management features, makes this hard drive a reliable and efficient storage solution for enterprise-level systems.
It also has features like Error Correction Code (ECC), which can detect and correct errors in the data, providing increased data integrity and reliability. Additionally, the hot-swap capability allows for easy maintenance and upgrades, which can further improve the drive’s reliability and uptime. Hot-Swap Capabilities
The HPE 695507-008 hard drive has hot-swap capabilities. This means that it can be removed and replaced while the system is still running, without having to power down the system. This feature is particularly useful in enterprise-level servers, storage systems, and workstations, where downtime needs to be minimized.
Hot-swap drives have a specific type of tray called a “sled” or “caddy” which allows them to be inserted and removed from the system without the need for tools or cables. The sled also provides power and data connectors for the drive, so it can be easily connected to the system.
Hot-swap capability also allows for easy maintenance and upgrades. For example, if a drive fails, it can be quickly replaced with a new one without having to shut down the system. This can save valuable time and resources, and it can help to minimize the impact of drive failures on the system.
It’s also worth mentioning that not all servers, storage systems, and workstations have the ability to hot-swap hard drives, so it’s important to check the compatibility of the system before installing a hot-swap hard drive. Form Factor
The HPE 695507-008 hard drive has a Large Form Factor (LFF) form factor. The LFF form factor is also known as a 3.5-inch form factor, which refers to the physical size of the hard drive. This form factor is larger than the Small Form Factor (SFF) or 2.5-inch form factor, and it is typically used in enterprise-level servers, storage systems, and workstations.
The LFF form factor is designed to fit into larger drive bays, and it provides a higher storage capacity than the SFF form factor. It also has a larger platter size, which allows for more data to be stored on the disk. This makes the LFF form factor ideal for high-capacity storage needs such as data archiving, backup, and video surveillance.
Also, LFF hard drives are designed for hot-swap capability, which means that they can be replaced without shutting down the system. This can be useful in situations where a drive needs to be replaced due to failure or for capacity expansion, allowing for minimal downtime and interruption to the system.
Product Information:Part Number : 695507-008
Type : Hard Drive (HDD)
Sub-Type : 4TB 7.2K RPM SAS 6GBPS
Manufacturer : Hewlett Packard Enterprise
Brand Name : HPE
Technical InformationCapacity : 4 TB
Form Factor : 3.5 LFF
Interface : SAS 6GB/S
Data Transfer Rate : 600 MBPS
Spindle Speed : 7200 RPM
Dimensions (wxdxh) : 4.2 In X 6.7 In X 1.1 In
Weight : 3 LBS
Bundled With : HPE Smartdrive Carrier
Desingned For:Proliant Bl420c Gen8, Bl460c Gen8, Bl465c Gen8, Bl660c Gen8, Dl160 Gen8, Dl180 Gen9, Dl20 Gen9, Dl320e Gen8, Dl360 Gen9, Dl360e Gen8, Dl360p Gen8, Dl380 Gen9, Dl380e Gen8, Dl380p Gen8, Dl385p Gen8, Dl560 Gen8, Dl80 Gen9, Microserver Gen8, Ml110 Gen9, Ml110e Gen8, Ml30 Gen9, Ml310e Gen8, Ml350 Gen9, Ml350e Gen8, Ml350p Gen8, Sl210t Gen8, Sl230s Gen8, Sl250s Gen8, Sl270s Gen8, Sl4540 Gen8, Sl4545 G7, Ws460c Gen8
Extended Specifications:Device Type : Hard Drive – Hot-swap
Capacity : 4 TB
Form Factor : 3.5 LFF
Interface : SAS 6GB/S
Bytes Per Sector : 512
Physical Specifications:Width : 4.2 In
Depth : 6.7 In
Height : 1.1 In
Weight : 3 LBS
Bundled With : HPE Smartdrive Carrier
PerformanceDrive Transfer Rate : 600 MBPS (external)
Spindle Speed : 7200 RPM
Expansion & Connectivity:
Interfaces : 1 X SAS 6GB/S
Compatible Bays : 3.5 LFF
Environmental ParametersMin Operating Temperature : 50 °F
Max Operating Temperature : 95 °F
