Introduction of the HPE 745915-S01

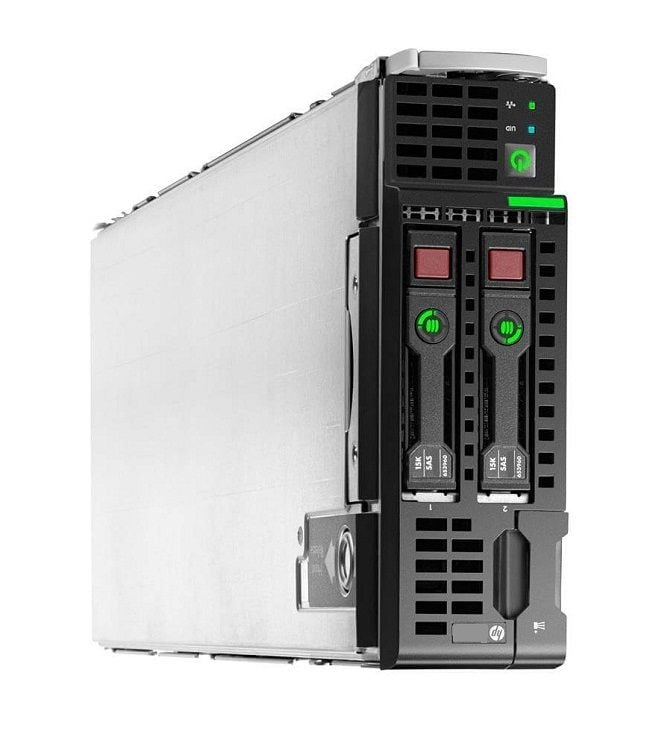

The HPE 745915-S01 Proliant BL460c G8 S-Buy Blade Server is a powerful computing solution designed by Hewlett Packard Enterprise (HPE) to meet the demands of modern businesses. This comprehensive guide will provide an in-depth exploration of the key features and specifications of this blade server, from its processors and memory to storage solutions and networking capabilities.
Processing Power: 2x Intel Xeon 10-Core E5-2670v2 2.5GHzDual Intel Xeon Processors
At the core of the HPE 745915-S01 lies the processing prowess of not one but two Intel Xeon 10-Core E5-2670v2 processors. With a clock speed of 2.5GHz, these processors deliver high-performance computing, making the server adept at handling a variety of tasks simultaneously.
Cache Memory: 50MB L3 CacheAccelerating Data Access
The server boasts a substantial L3 cache of 50MB, with each processor having 25. This cache plays a crucial role in speeding up data access, allowing the server to retrieve and process information more swiftly. The sizable cache contributes significantly to the overall efficiency of the server.
Memory Marvel: 64GB DDR3 RAMRobust Memory
Equipped with 64GB (gigabytes) of DDR3 RAM, the HPE 745915-S01 strikes a balance between capacity and speed. DDR3 technology ensures efficient data transfer and processing, with a memory speed of 1866MHz. The server supports a variety of RAM configurations, enhancing its flexibility to meet diverse computing needs.
Supported RAM
- PC3-14900 – 256GB – Registered
- PC3-12800 – 384GB – Low Voltage – Registered
- PC3-10600 – 384GB – Low Voltage – Registered
- PC3-14900 – 512GB – Load-Reduced
- PC3-14900 – 128GB – Unbuffered – Advanced ECC
- PC3-12800 – 128GB – Low Voltage – Unbuffered – Advanced ECC
Storage Solutions: Smart Array P220i FBWCFlexible Storage Options
While the HPE 745915-S01 does not come with pre-installed hard or optical drives, it supports a range of internal storage options. The Smart Array P220i controller with 512MB Flash Backed Write Cache (FBWC) provides RAID support (RAID 0 and RAID 1) for enhanced data protection and performance.
Networking Excellence: 534FLB FlexFabric AdapterIntegrated Networking Capabilities
The server features an integrated 534FLB FlexFabric Adapter, providing advanced networking capabilities. With support for Gigabit Ethernet and 10 Gigabit Ethernet, this adapter ensures high-speed data transfer and connectivity. The inclusion of Wake On LAN (WOL) further enhances remote management capabilities.
Blade Server Design
Blade server design refers to a type of server architecture that utilizes a blade form factor. This means that the server hardware is housed in a thin, modular “blade” that can be easily inserted and removed from a shared chassis or enclosure. The enclosure provides power, cooling, and networking connections to the blades, allowing for maximum space efficiency and scalability.
One of the main advantages of blade server design is that it allows for a high density of servers in a single rack. Because the blades are thin and compact, they take up less space than traditional rack-mounted servers. This allows for more servers to be packed into a smaller footprint, making it ideal for data centers and other high-density environments.
Another advantage of blade server design is that it allows for easy expansion and maintenance. Because the blades can be easily inserted and removed, adding or replacing a server is a relatively simple process. This also allows for easier access to the internal components of the server for maintenance and upgrades.
Blade server design also enables shared resources, such as power and cooling, which can lead to energy efficiency and cost savings. Additionally, many blade servers come with built-in management features, such as remote management capabilities, which can help to simplify server management and reduce downtime.
Power and Cooling System
The Power and Cooling Systems for the HPE Proliant Bl460c G8 Blade Server are designed to provide reliable and efficient power delivery and cooling to the server components.
The server is equipped with redundant power supplies that can provide power to the server even in the event of a single power supply failure. This helps to ensure that the server stays up and running, even in the event of a power outage.
The server also features a cooling system that is designed to keep the server components at optimal temperatures. This helps to ensure that the server runs at peak performance and can also help to extend the life of the server components. The Cooling system is designed to pull air in through the front of the server and exhaust it out the back, which helps to keep the internal components cool.
Additionally, the server also has a temperature sensor, which helps to monitor the temperature of the server and can trigger an alarm if the temperature exceeds a certain threshold. This can alert the administrator to take action, such as adding additional cooling or replacing failed components.
Compatibility and Scalability
Compatibility refers to the ability of a server, such as the HPE Proliant Bl460c G8, to work seamlessly with other hardware and software components in a given environment. This includes compatibility with operating systems, storage devices, and other peripherals.
Scalability, on the other hand, refers to the ability of the server to adapt to changing workloads and demands and to expand its resources as needed. This includes the ability to add more memory, storage, or processing power as the needs of the environment change. In the case of the HPE Proliant Bl460c G8, it is a blade server, which allows for the easy addition or replacement of blades within the chassis, allowing for increased processing power, memory, and storage capacity.
When thinking about compatibility and scalability together, it is important to ensure that the server is compatible with the existing hardware and software in the environment and that it can be easily scaled as the needs of the environment change. The HPE Proliant Bl460c G8 has been designed to be compatible with a wide range of hardware and software, and its blade design makes it easy to scale as needed.
General Information about this HPE 745915-S01
- Manufacturer: HPE
- Part Number or SKU# 745915-S01
- Product Type: Server
- Sub-Type: Proliant Bl460C
Processor & Chipset
- Processor Type: Intel Xeon E5-2670 / 2.5 GHz
- Number Of Cores: 10-Core
- 64-Bit Computing: Yes
- Installed Qty: 2
- Max Supported Qty: 2
- Upgradability: Upgradable
- Chipset Type: Intel C600
Memory
- Cache Memory Type: L3 Cache
- Installed Size: 50 MB
- Cache Per Processor: 25 MB
- Installed Size: 64 GB
- Maximum Size: 512 GB
- Technology: DDR3 SDRAM
- Memory Speed: 1866 MHz
- Memory Specification Compliance: PC3-14900
- Form Factor: DIMM 240-Pin
- Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, HP SmartMemory
- Configuration Features: 4 x 16 GB
Supported RAM Configurations
- PC3-14900 – 256 GB – Registered
- PC3-12800 – 384 GB – Low Voltage – Registered
- PC3-10600 – 384 GB – Low Voltage – Registered
- PC3-14900 – 512 GB – Load-Reduced
- PC3-14900 – 128 GB – Unbuffered – Advanced ECC
- PC3-12800 – 128 GB – Low Voltage – Unbuffered – Advanced ECC
Storage & Storage Controller
- Hard Drive: None
- Optical Drive: None
- Internal Storage: SAS: 2.0TB, SATA: 2.0TB, SAS SSD: 1.6TB
- Storage Controller Type: 1 x Serial Attached SCSI 2 Integrated – PCI Express x4
- Controller Interface Type: Serial ATA-300 / SAS 2.0
- Storage Controller Name: Smart Array P220i with 512MB FBWC
- RAID Level: RAID 0, RAID 1
- Buffer Size: 512 MB
Display & Graphics Controller
- Graphics Controller Type: Integrated
- Graphics Processor: Matrox G200
- Graphics Regulation:
- 1280 x 1024 (32 BPP)
- 1920 x 1200 (16 BPP)
Network & Communication
- Networking: Network Adapter – PCI Express 2.0 x8 – Integrated
- Ethernet Ports: 2 x 10 Gigabit Ethernet
- Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
- Remote Management Protocol: SNMP, IPMI 2.0, SMASH CLP
- Remote Management Controller: Integrated Lights-Out 4
- Features: Wake On LAN (WOL)
- Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1AB (LLDP), IEEE 802.3ap, IEEE 802.1Qau
In summary, the HPE 745915-S01 Proliant BL460c G8 S-Buy Blade Server stands as a robust and versatile solution for businesses seeking high-performance computing. With dual Intel Xeon processors, substantial cache memory, ample DDR3 RAM, flexible storage options, and advanced networking capabilities, this blade server is well-equipped to handle a variety of workloads.
Consider this guide your comprehensive resource for understanding the features and specifications of the HPE 745915-S01. As businesses evolve and demand more from their computing infrastructure, this blade server remains a reliable and efficient choice, providing a solid foundation for diverse computing needs.
