Description
SAS 12 GBps Interface for High-Speed Data Transfer

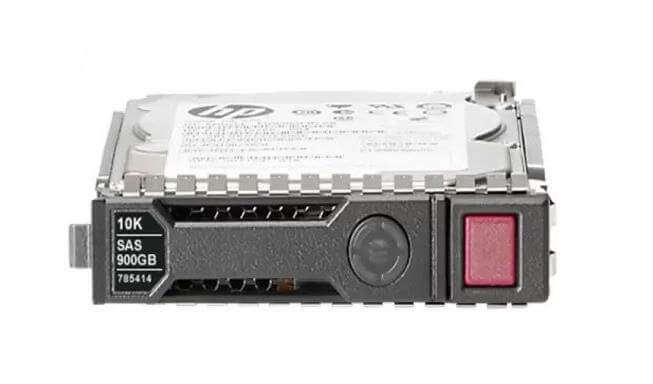

The HPE 785414-001 hard drive features a SAS 12 Gbps interface, providing high-speed data transfer capabilities for quick and efficient data transfer. This interface allows for fast data access and transfer rates, making it ideal for use in high-performance enterprise storage systems.
Subheadings:
- SAS 12 GBps Interface Overview
- Advantages of a SAS 12 Gbps Interface
- Benefits of High-Speed Data Transfer
- SAS 12 Gbps vs Other Interfaces
- Compatibility with Enterprise Storage Systems
- Reliable Data Transfer
- Improved Performance with SAS 12 Gbps Interface
- Increased Bandwidth with SAS 12 Gbps
- Enhanced Data Transfer Speeds.
10K RPM Spindle Speed for Fast Data Access
The HPE 785414-001 hard drive features a spindle speed of 10K RPM, which means that the disk rotates at 10,000 revolutions per minute. This results in faster data access and improved performance, as the drive can quickly access data from the disk platters.
Subheadings:
- 10K RPM Overview
- Benefits of 10K RPM Spindle Speed
- Faster Data Access with 10K RPM
- Improved Performance with 10K RPM
- Increased Throughput with 10K RPM
- Enhanced Storage System Responsiveness
- Quicker Data Retrieval with 10K RPM
- Higher I/O Performance with 10K RPM
- Enhanced Data Access Speed
- Faster Disk Access with 10K RPM.
Enterprise-Grade Reliability and Data Integrity
The HPE 785414-001 Hard Drive is designed with enterprise-grade reliability and data integrity in mind. This means that the drive has been tested and validated to meet the rigorous demands of data centers and other mission-critical environments. The drive features advanced error correction code (ECC) to detect and correct data errors, as well as high-quality components for durability and longevity. Additionally, the drive has been engineered to withstand the high temperatures, vibrations, and shock that can occur in demanding storage environments, helping to ensure that your data remains safe and secure.
Product Description
- Manufacturer Name: HPE
- MPN: 785414-001
- Type: Internal Hard Drive
- HDD Type: SAS-12GBPS
- SKU: 785414-001
- Option Part Number: 785075-B21
- Model Number: EG0900JEHMB
- Assembly Number: 768788-003
- Assembly Number: 781514-004
- Assembly Number: 796365-003
Specialized Information
- Capacity: 900GB
- Form Factor: 2.5 inch SFF
- Bytes per Sector: 512
- Drive Technology (Fill): Air
- Plug Type: Hot Pluggable
- Format Type: 512e
- Carrier Type: Standard Carrier (SC)
- Workload Type: Enterprise
Product Features
- Drive Transfer Rate: 1.2 GBps (External)
- Seek Time: 3.5 ms (average) / 7 ms (Max)
- Track-to-Track Seek Time: 0.1 MS
- Spindle Speed: 10000 RPM
Environmental Parameters
- Min Operating Temperature: 50 °F
- Max Operating Temperature: 95 °F
Dimension and Weight
- Width : 2.8 Inch
- Depth : 3.9 Inch
- Height : 0.6 Inch
- Weight : 0.50 lbs
Compatibility Information
- HPE Integrity BL Series: BL860c i4 (2.5 inch), BL860c i4 Base (2.5 inch)
- HPE ProLiant BL Series: BL20p G4 (2.5 inch), BL45p G2 (2.5 inch), BL460c G6 G7 (2.5 inch), BL465c G1 G5 G6 G7 (2.5 inch), BL480c G7 (2.5 inch), BL620c G7 (2.5 inch), BL680c G5 G6 G7 (2.5 inch), BL685c G6 G7 (2.5 inch)
- HPE ProLiant DL Series: DL120 G6 G7 (2.5 inch), DL160 G6 G7 (2.5 inch), DL160se G6 G7 (2.5 inch), DL165 G6 G7 (2.5 inch), DL170e G6 G7 (2.5 inch), DL170h G6 G7 (2.5 inch), DL180 G6 G7 (2.5 inch), DL320 G6 G7 (2.5 inch), DL360 G4p G5 G6 G7 (2.5 inch), DL365 G1 G5 G6 G7 (2.5 inch), DL370 G6 G7 (2.5 inch), DL380 G4 G5 G6 G7 (2.5 inch), DL385 G1 G2 G3 G4 G5/G5p G6 G7 (2.5 inch), DL580 G3 G4 G5 G6 G7 (2.5 inch), DL580 G7 Base (2.5 inch), DL580 G7 High Performance (2.5 inch), DL585 G2 G3 G4 G6 G7 (2.5 inch), DL585 G7 Base (2.5 inch), DL585 G7 Performance (2.5 inch), DL785 G6 (2.5 inch), DL980 G7 (2.5 inch)
- HPE ProLiant ML Series: ML110 G7 (2.5 inch), ML350 G5 G6 G7 (2.5 inch), ML370 G5 G6 G7 (2.5 inch), ML570 G3 G4 G5 (2.5 inch)
- HPE ProLiant SL Series: SL390s G6 G7 (2.5 inch)
- HPE ProLiant WS Series: WS460c G6 G7 (2.5 inch)
- HPE Storage arrays: D2700 SFF, MSA 1040 SFF, MSA70 SFF, P2000 G3 SFF, X1500 G2 SFF, X16000 G2 SFF, X1800 G2 SFF, X3400 G2 SFF, X3800 G2 SFF, 2000i G2 SFF, 2000sa G2 SFF
