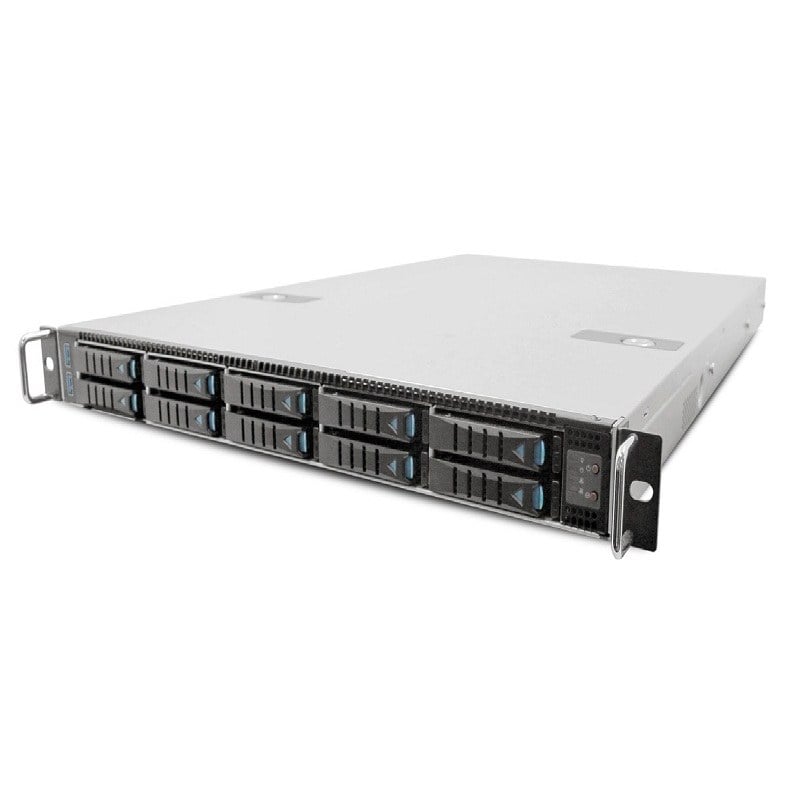

HPE 850366-S01 ProLiant DL360 Overview
The HPE 850366-S01 ProLiant DL360 is a 2-processor server that features 64GB DDR4 DIMMs, eight small form factor SATA/SAS bays, and two 800W power supplies. This Gen9 server is designed for high-performance computing and can handle demanding workloads with ease. It is ideal for businesses that require a high level of processing power, such as virtualization, database management, and cloud computing.
The HPE 850366-S01 ProLiant DL360 Gen9 Server is powered by two Intel Xeon E5-2680 v4 processors. These processors are part of the Broadwell-EP family and feature 14 cores per socket. The clock speed of these processors is 2.4GHz, and they have a maximum turbo frequency of 3.3GHz. The Intel Xeon E5-2680 v4 processors are designed for high-performance computing and can handle demanding workloads with ease.
The HPE 850366-S01 ProLiant DL360 Gen9 Server features 64GB DDR4 DIMMs. DDR4 is the latest generation of double data rate synchronous dynamic random-access memory (SDRAM). DDR4 DIMMs provide faster data transfer rates, improved reliability, and lower power consumption than their predecessors. The HPE 850366-S01 ProLiant DL360 Gen9 Server can support up to 24 DDR4 DIMMs, allowing for a maximum memory capacity of 3TB.
The HPE 850366-S01 ProLiant DL360 Gen9 Server features eight small form factor (SFF) SATA/SAS bays. These bays can accommodate up to eight 2.5-inch SATA or SAS hard disk drives (HDDs) or solid-state drives (SSDs). The server also features an embedded HPE Dynamic Smart Array B140i Controller for RAID support. Additionally, the HPE 850366-S01 ProLiant DL360 Gen9 Server supports HPE Smart Array Controllers for increased storage flexibility and performance.
The HPE 850366-S01 ProLiant DL360 Gen9 Server features two 800W power supplies. These power supplies are hot-pluggable and redundant, providing increased system uptime and availability. The server also features HPE's Intelligent Provisioning technology, which allows for easy server setup and deployment.
In summary, the HPE 850366-S01 ProLiant DL360 Gen9 Server features HPE's iLO4 (Integrated Lights-Out 4) management technology. iLO4 is an integrated hardware and software solution that provides remote server management capabilities. With iLO4, administrators can remotely manage the server's power, firmware, and operating system. They can also monitor the server's health, performance, and security.
- Brand Name : HPE
- Part Number or SKU# 850366-S01
- Number Of Cores: 14-core
- CPU Qty: 2
- Max CPU Qty: 2
- CPU Upgradability: Upgradable
- Max Turbo Speed: 3.3 GHz
- Processor Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
Memory of this E5- 2680 v4 2.3 Ghz Processors
- Installed Size: 64 GB / 384 GB (max)
- Technology: Ddr4 SDRAM - Advanced ECC
- Memory Specification Compliance: Pc4-17000
- Form Factor: DIMM 288-pin
- Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
- Configuration Features: 4 X 16 GB
- Ram Supported: Pc4-17000 - 768 GB - Load-reduced ¦ Pc4-17000 - 384 GB - Registered
- Type: 1 X Raid - PCIE 3.0 X8
- Controller Interface Type: SATA 6gb/s / SAS 12gb/s
- Storage Controller Name: Smart Array P440ar With 2gb Fbwc
- Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
- Buffer Size: 2 GB
Display & Graphics Controllers
- Graphics Processor: Matrix G200
- Video Interfaces: VGA
Network & Communication
- Ethernet Ports: 4 X Gigabit Ethernet
- Ethernet Controller: Hp 331i
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller: Integrated Lights-out 4
- Features: Wake On LAN (WOL), PXE Support
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- 1 (total) / 1 (free) X External
- 8 (total) / 8 (free) X Hot-swap 2.5 SFF
- 24 (total) / 20 (free) X DIMM 288-pin
- 2 (total) / 0 (free) X CPU
- 1 (total) / 1 (free) X PCIE 3.0 X16 - Three-quarter-length, Full-height
- 1 PCIE 3.0 X8 - Low-profile
- 1 (total) / 0 (free) X Flexible
- 1 (total) / 1 (free) X Micros Card (internal)
Interfaces & Ports
- 1 X VGA
- 1 X Serial
- 4 X LAN (gigabit Ethernet)
- 1 X Hp Ill
- 5 X USB 3.0 (1 Front, 2 Rear, 2 Internal)
- Compliant Standards
- CPI 2.0b, FCC Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, CISP 22, FCC Cfr47 Part 15, IEC 60950-1, En 60950-1, WEEE, GB 9254, CNS 13438
- Device Type: Power Supply - Hot-plug
- Power Redundancy: Yes
- Power Redundancy Scheme: 1+1
- Installed Qty: 2
- Max Supported Qty: 2
- Nominal Voltage: Ac 120/230 V (50/60 Hz)
- Power Provided: 800 Watt
- 80 Plus Certification: 80 Plus Platinum
Dimensions & Weight
- Width: 17.1 Inch
- Depth: 27.5 Inch
- Height: 1.7 Inch
- Weight: 27.01 Lbs
About Refurbished Products
Server - ProLiant DL360
1U design, along with the powerful performance and extraordinary speed, is a dream of many! But the wait for every tech-savvy is over now as the Generation 9 HP ProLiant DL360 is here. Not only it supports virtualization but high-performance computing and super-fast data loading speed. Thus, amongst the generation family, HP DL360 tops the list. Moreover, this rack server's compatibility with Intel Xeon E5 V3 and V4 series processors has outclassed all other related servers. We, at ALLHDD, have got you covered with multiple variants of HP DL360 compatible with Xeon with a range of speed. The categories range from Xeon or Quad 1.6GHz to Xeon 3.9GHz. All in all, you'll love the overall performance of this ProLiant DL360.
HPE DL360 is a Performance Booster:
Intel's C610 chip makes this ProLiant DL360 compatible with the E5 2600 V3 and V4 series. Apart from the processor, the HPE DD4 memory module increases its performance by 14%. Moreover, the Smart One View 2.0 Management System is handled by the management system, which reduces the complications and guides you to the next step.
Smart Memory Technology by Hewlett Packard:
Hewlett Packard ProLiant DL360 is loaded with the DDR4 memory module, which not only supports up to 1.5TB of memory capacity but the 24 DDR4 DIMM slots as well. This way, a significant increase of 14% can be seen in the output with less power consumption and better accuracy. The ProLiant DL360 smart array offers compatibility with both the RDIMMS and LRDIMMs utilizing the V4 type processor. ALLHDD has got you covered with the DL360, including the following sub-categories in this regard: Xeon 1.6GHz, Xeon 2.0GHz, Xeon 2.2GHz, Xeon 2.3GHz, Xeon 2.4Ghz, Xeon 2.33GHz, Xeon 2.5GHz, Xeon 2.66GHz, and more.
Smart Array P440 Adds to the Storage Capacity:
There are three basic storage configurations that an administrator or users can choose from while selecting the system. However, the HP ProLiant DL360 is powered with the Smart Array P440 manages to achieve the ten 3.84 TB hot-plug SATA SSDs. In turn, it'll make an overall storage capacity of 38.4 TB in the all-configuration storage category. You can choose from the following to get the maximized storage support from the HPE DL360: Xeon 2.6GHz, Xeon 2.80GHz, Xeon 3.40GHz, Xeon 3.06GHz, and Xeon 3.0GHz.
Expansion Slots are Available:
The technology never stops! Thus, HP DL360 will also not confine you to the exact number of processors and memory capacity as there are two expansion slots available for you to upgrade the system. You can install a secondary processor with the riser. Also, an additional PCIe slot is available that features the 3.0 version for the latest NICs and HBAs. However, keep in mind that the additional graphics card support is not a part of DL360.
