Description
Reliability of 6GBPS HDD
The HPE 857967-001 hard drive is designed to be a reliable storage solution for enterprise-level storage systems and servers. It is a midline drive, which is a class of hard drives that are designed for use in applications that require a balance of capacity, performance, and reliability.
The drive features a 7.2K RPM spindle speed, which is designed to provide fast data access and transfer speeds. The drive also features a large cache buffer, which helps to improve performance and reliability by reducing the number of disk I/O operations required to access data.
In terms of MTBF (Mean Time Between Failures) which is a measure of a drive’s reliability, the HPE 857967-001 hard drive has a MTBF of 1.2 million hours, that means the drive is expected to run for approximately 137 years before failure.
It is also important to note that the drive is built to meet the demands of high-performance, high-availability storage environments and is rigorously tested and qualified by HPE to ensure that it can withstand the rigors of enterprise-level use.
Comparison of SATA Hard Drive
When comparing the HPE 857967-001 hard drive to similar products, it is important to consider several key factors such as capacity, speed, interface, form factor, and reliability.
In terms of capacity, the HPE 857967-001 hard drive offers 10TB of storage space, which is a large amount of storage and can be compared with other hard drives of similar capacity.
In terms of speed, the HPE 857967-001 has a 7.2K RPM spindle speed, which is a standard speed for enterprise-class hard drives. This speed is suitable for applications that require fast data access and transfer.
The HPE 857967-001 hard drive uses a 6 Gb/s SATA interface and LFF (Large Form Factor) form factor, which are commonly used in enterprise-level storage systems and servers.
In terms of reliability, the HPE 857967-001 hard drive has a MTBF of 1.2 million hours, which is a measure of the drive’s reliability and is a standard for enterprise-class hard drives.
When comparing the HPE 857967-001 hard drive to similar products, it is important to keep these factors in mind and consider how they match up to the specific needs of your application or storage environment. Additionally, it is also important to check the vendor’s specification, warranty, and support services.
Recommendation
Based on its technical specifications and features, the HPE 857967-001 hard drive is a reliable and suitable storage solution for enterprise-level storage systems and servers. With a large 10TB capacity and 7.2K RPM spindle speed, it offers ample storage space and fast data access and transfer speeds. The LFF (Large Form Factor) and 6 Gb/s SATA interface make it compatible with a wide range of hardware, and its MTBF of 1.2 million hours is a standard for enterprise-class hard drives.
Additionally, the drive is qualified by HPE to ensure that it can withstand the rigors of enterprise-level use, and HPE also offers support and warranty services that can provide additional peace of mind and protection for users.
However, it is important to note that the suitability of the drive will depend on the specific needs of your application or storage environment. It is recommended to consult with the vendor’s documentation and consult with their technical support team to ensure that the drive is compatible with your system and meets the requirements of your use case.

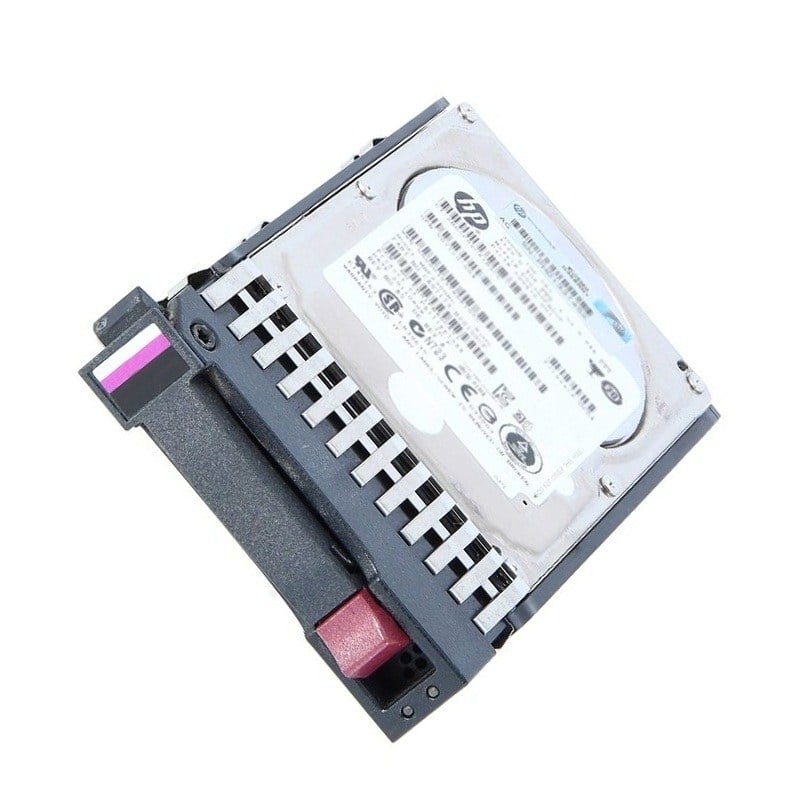

Product Information 857967-001:
Manufacturer Name: HPE
MPN: 857967-001
Type: Hard Drive – Hot-Swap
HDD Type: SATA-6GBPS
SKU: 857967-001
Option Part Number: 857648-B21
Model Number: MB010000GWAYN
Assembly Number: 857643-002
Technical Information 857967-001
Capacity: 10 TB
Form Factor: 3.5 inch LFF
Interface: SATA 6GBPS
Bytes per Sector: 512
Drive Technology (Fill): Helium
Plug Type: Hot Plug
Format Type: 512E
Carrier Type: Smart Carrier (SC)
Workload: Midline
Features: Advanced format 512E, Digitally Signed Firmware
Bundled with: HPE SmartDrive Carrier
Performance
Rotational Speed: 7200 RPM
Transfer Rate Synchronous (Max): 6 GB/Sec
Single Track Seek Time: 0.22 MS
Average Seek Time: 8.00 MS
Full Stroke Seek Time: 16.00 MS
Dimension and Weight
Width: 4 Inch
Depth: 5.8 Inch
Height: 1 Inch
Weight: 1.52 LBS
Expansion & Connectivity
Interfaces: 1 x SATA 6 GB/S – 7 Pin Serial ATA
Compatible Bay: 3.5 Inch LFF Low Profile
Environmental Parameters
Min Operating Temperature: 50 °F (10°C)
Max Operating Temperature: 95 °F (35°C)
Compatibility
HPE ProLiant DL Series: DL120 Gen9 (3.5 inch), DL120 Gen9 Entry (3.5 inch), DL180 Gen9 (3.5 inch), DL180 Gen9 Base (3.5 inch), DL180 Gen9 Entry (3.5 inch), DL180 Gen9 Storage (3.5 inch), DL20 Gen9 (3.5 inch), DL20 Gen9 Entry (3.5 inch), DL20 Gen9 Performance (3.5 inch), DL20 Gen9 Solution (3.5 inch), DL360 Gen10 (3.5 inch), DL360 Gen10 Base (3.5 inch), DL360 Gen10 Entry (3.5 inch), DL360 Gen10 High Performance (3.5 inch), DL360 Gen10 Low (3.5 inch), DL360 Gen10 Performance (3.5 inch), DL360 Gen10 Solution (3.5 inch), DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch), DL388 Gen9 (3.5 inch), DL388 Gen9 Base (3.5 inch), DL60 Gen9 (3.5 inch), DL60 Gen9 Base (3.5 inch), DL60 Gen9 Entry (3.5 inch), DL80 Gen9 (3.5 inch), DL80 Gen9 Base (3.5 inch), DL80 Gen9 Entry (3.5 inch) Servers
HPE ProLiant ML Series: ML150 Gen9 (3.5 inch), ML150 Gen9 Base (3.5 inch), ML150 Gen9 Entry (3.5 inch), ML150 Gen9 Performance (3.5 inch), ML30 Gen9 Entry (3.5 inch), ML30 Gen9 Solution (3.5 inch) Servers
HPE StoreEasy 1450
