Description
Enterprise Reliability

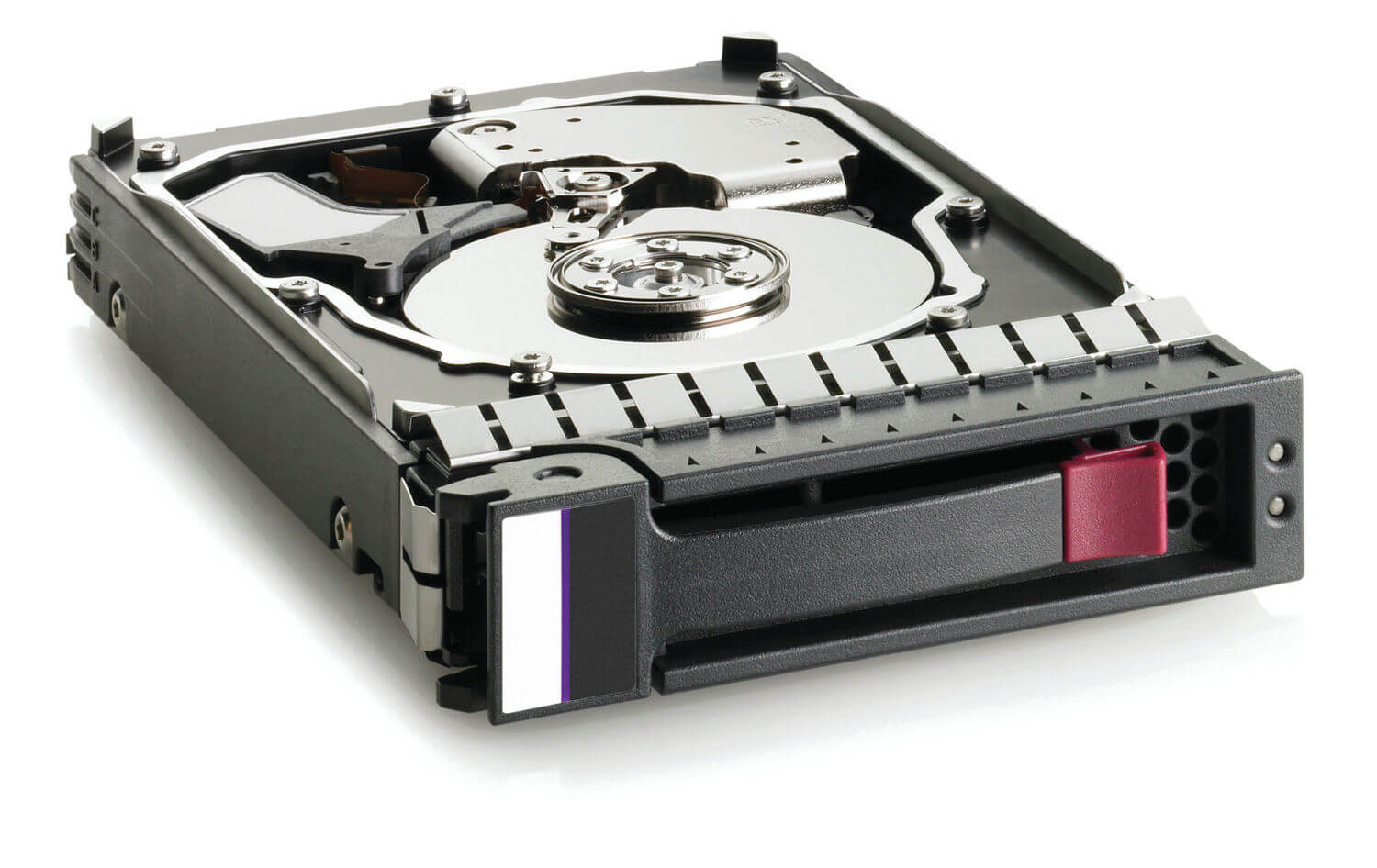

The HPE 882399-001 12TB 7.2K RPM SAS-12GBPS Midline Internal Hard Drive is a highly reliable storage solution for your enterprise. It features a SAS-12GBPS interface, which provides fast data transfer speeds and a high level of compatibility with existing SAS infrastructure. The 7.2K RPM spindle speed ensures quick access to stored data, while the 12TB capacity provides ample storage space for large amounts of data. Additionally, the midline internal design ensures that the drive is built to withstand the rigors of a 24/7 enterprise environment.
General Compatibility
The HPE 882399-001 12TB 7.2K RPM SAS-12GBPS internal hard drive is compatible with servers and storage systems that use SAS-12GBPS interfaces. It is specifically designed for use with HPE ProLiant servers, HPE StoreEasy Storage, and HPE MSA Storage systems. However, it can also be used with other servers and storage systems that are compatible with SAS-12GBPS interfaces.
It is important to check the compatibility of the hard drive with your specific server or storage system before purchasing to ensure proper installation and operation. It is also recommended to consult the system’s documentation or contact the manufacturer for compatibility information.
It’s worth mentioning also that this drive is compatible with HPE’s Smart Carrier, which allows for hot-swap drive replacement without disrupting the operation of the server or storage system.
Performance of Internal HDD
The HPE 882399-001 12TB 7.2K RPM SAS-12GBPS internal hard drive offers high performance for demanding workloads. Its 7.2K RPM speed allows for fast data access and transfer, enabling quick and efficient data retrieval. The SAS-12GBPS interface provides high-speed data transfer rates, which can reach up to 12GBps, allowing for fast data transfer and reducing the time it takes to complete large data transfers.
Additionally, the hard drive’s 12TB capacity allows for ample storage space for large data sets and files, making it suitable for businesses and organizations that need to store and manage large amounts of data. The hard drive also features advanced error correction, ensuring that data is protected and that data integrity is maintained.
SPECIFICATIONS
Brand Name: HPE
Manufacture Part Number: 882399-001
Option Part Number: 881779-B21
Spare Part Number: 882397-001
Model Number: MB012000JWDFD
Assembly Number: 868210-001
Device Type: Hard Drive – Hot-Swap
Capacity: 12 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Helium
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Workload Type: Midline
Features: Dual Port, Advanced Format 512e, Digitally Signed Firmware
Bundled with: HPE SmartDrive Carrier
PERFORMANCE
Rotational Speed: 7200 rpm
Transfer Rate Synchronous (Max): 12Gb/sec
OD Media Rate, Max Sequential Throughput (MiB/s): 235
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 115
128Kib Random 50% RD/ 50% WT (IOPs): 125
EXPANSION & CONNECTIVITY
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5″ LFF
POWER CONSUMPTION
Idle Time: 5.5 Watt
Random R/W: 6.1 Watt
Sequential Read: 7.0 Watt
Sequential Write: 6.8 Watt
ENVIRONMENTAL PARAMETERS
Minimum Operating Temperature: 50° F (10°C)
Maximum Operating Temperature: 95° F (35°C)
COMPATIBILITY INFORMATION
Designed for
HPE ProLiant DL Series: DL20 Gen9 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Perferformance (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch) Servers
