Introduction to HPE Procurve Switch

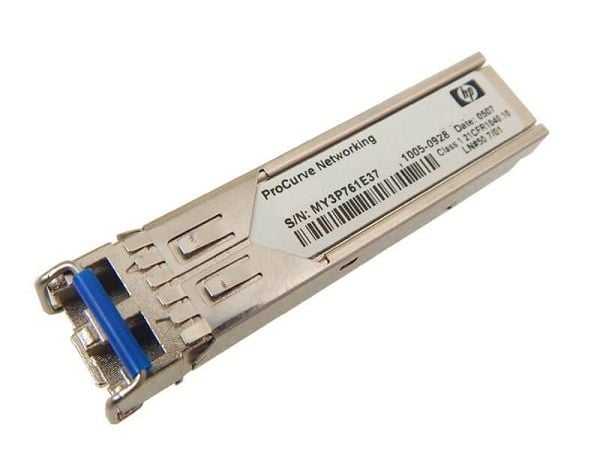

The J4859-69201 is a Gigabit-Lx-Lc transceiver module designed for use with HPE (Hewlett Packard Enterprise) Procurve switches. It is a type of Mini-GBIC (Gigabit Interface Converter) module that allows for the extension of Ethernet connections beyond the typical 100-meter distance limitation of copper cabling.
The 1000BASE-LX standard is used for the transmission of Ethernet signals over single-mode fiber optic cable, and the J4859-69201 transceiver is compatible with this standard. The "LX" in the name stands for "long wavelength," which refers to the specific wavelength of light used for transmission. The "Lc" in the name stands for "Lucent Connector," which is a type of fiber optic connector commonly used in enterprise networking.
The J4859-69201 transceiver provides a data transfer rate of up to 1 Gbps (Gigabits per second) and supports a maximum transmission distance of up to 10 kilometers (6.2 miles). It is hot-swappable, meaning it can be installed or removed from a switch while the switch is still operational.
Troubleshooting and Maintenance
J4859-69201 is a small form-factor pluggable (SFP) transceiver module designed for use with HPE Procurve switches to provide Gigabit Ethernet connectivity over fiber-optic cabling. This module uses the LC connector type and supports a maximum cable distance of up to 10 kilometers.
When it comes to troubleshooting and maintenance of J4859-69201 transceivers, there are a few things to keep in mind:
- Check the compatibility: First, ensure that the transceiver is compatible with your HPE Procurve switch model. Check the HPE website for compatibility information and make sure the transceiver is correctly inserted into the switch's SFP slot.
- Verify the link status: Check if the link between the switch and the transceiver is active. If not, try re-seating the transceiver, swapping the fiber-optic cables, or replacing the transceiver if it's faulty.
- Check the cable: If the link status is still not active, inspect the fiber-optic cable for any signs of damage or disconnection. Make sure that both ends of the cable are firmly connected to the switch and the transceiver.
- Check the switch configuration: Verify that the switch's configuration is correct, specifically regarding the SFP slot that the transceiver is plugged into. Ensure that the correct interface is enabled and that the correct VLAN is configured.
- Monitor the transceiver: Finally, monitor the transceiver's performance and health regularly. Use HPE's switch management software to check the transceiver's temperature, voltage, and other diagnostic parameters. Replace the transceiver if it shows any signs of failure or performance degradation.
In terms of maintenance, it's essential to handle the transceiver with care and avoid physical damage. Clean the transceiver periodically with a lint-free cloth and an alcohol-based cleaner. Avoid using any harsh chemicals or abrasive materials that could damage the transceiver's optical components.
Compatibility and Interoperability
The J4859-69201 is a small form-factor pluggable (SFP) transceiver module designed for use with HPE Procurve switches. It is specifically designed for use with Gigabit Ethernet networks and provides a 1000BASE-LX/LH interface with LC connector.
In terms of compatibility, the J4859-69201 is designed to work with HPE Procurve switches that have an SFP interface. This means that it is compatible with a wide range of HPE Procurve switches, including the 3500, 5400, 6200, and 6600 series switches, among others.
In terms of interoperability, the J4859-69201 is also designed to work with other devices that support the 1000BASE-LX/LH interface. This means that it can be used to connect HPE Procurve switches to other networking devices such as routers, switches, and servers from other vendors, as long as they support the same interface.
It is worth noting that while the J4859-69201 is designed for use with HPE Procurve switches, it is not exclusively limited to these devices. It can also be used with other networking devices that support the same interface and form factor. However, it is always recommended to check the compatibility and interoperability of any transceiver module before purchasing and installing it in a network.
Main Information about the HPE J4859-69201
- Manufacturer: HPE
- Part Number or SKU# J4859-69201
- Device Type: Transceiver Module GBIC-SFP
- Form Factor : Plug-In Module
- Max. Data Transfer Rate : 1000 MBPS
- Cabling Type : Ethernet 1000base-Lx
- Data Link Protocol : Gigabit Ethernet
- Status Indicators : Link Ok, Link Activity
- Networking Standards : IEEE 802.3z
- Networking Interface Type : Sfp (Mini-Gbic)
- Features : Full Duplex Capability
About Refurbished Products
Building a fibre-optic network calls for a lot of planning and consideration of many factors. Transceivers are part of the many devices used to build optical fibre systems. A transceiver serves the combined roles of a transmitter and a receiver in that it transmits and receives signals. They are most common in communication equipment such as cellular phones, cordless telephone sets, and radios. Small form factors are required as networks become dense and space is limited, which sees transceivers included in chipsets.
In local area networks (LAN), a transceiver is used to connect a computer to printers and other devices on the network. Usually, the transceiver is integrated into the Network Interface Card (NIC)
Typical Roles of a Transceiver
- Used to convert frequencies from IF to RF.
- Widespread use in wireless communication to transmit data – voice, data, and video.
- RF transceivers are used in communication devices to support radio and TV signal transmission, digital signals transmission, and satellite communication.
- Collision detection – detection of simultaneous signals on the network.
- Transceivers can be deployed to provide a jabber function to interrupt the transmission of long data stream outputs.
Look no further for all types of transceivers including fibre optic transceivers, wireless transceivers, Ethernet transceivers, and RF transceivers. All these transceivers have different characteristics and support full-duplex communication, but the principle behind their work remains the same. Different types of transceivers will have varying numbers of ports used in the transceiver networking connections.
RF Transceivers: these devices are used to transmit video or voice data over a wireless medium. Commonly used for satellite communication, radio transmission, and ITE/WiMax/WLAN networks. The radio transceiver works by silencing the receiver when it is transmitting. There is an electronic switch that facilitates the connection of both the receiver and transmitter on the same antenna. The switch protects the receiver from damage that may be caused by the transmitter output.
Fiber Optic Transceivers: Also referred to as optical modules or fibre optical transceivers. Used to transmit data in fibre optic technology. The network must also have electronic components to encode or decode data into light signals.
Ethernet Transceivers: Basically used to connect electronic devices in a network so that they are able to transmit and receive data. It is also referred to as a media access unit (MAU). The best application of these transceivers is in the specification of IEEE 802.3 and Ethernet. Ethernet transceivers will detect a collision, provide Ethernet interface processing, convert digital data, and provide access to the network.
Wireless Transceivers: Wireless transceivers are a fundamental component necessary for data delivery in wireless networks. These transceivers have two layers. The physical layer has a baseband processor and RF front end. The processor converts a bitstream to a collection symbol flow for data transmission. The second layer is a MAC layer for link traffic control in contacting wireless links, improving data throughput, and preventing collisions.
We guarantee our customers high quality and reliability for all our transceiver networking solutions, irrespective of the type and size of your network.
Here, you can check more available conditions of your desired product J4859-69201 at a competitive price. We are trying our best to meet your needs on the enterprise-level computer, server, data centre, and networking hardware. You are welcome to ask our live chat or get live representative support over the phone.
