Description
More Information for 10GbE SR Transceiver

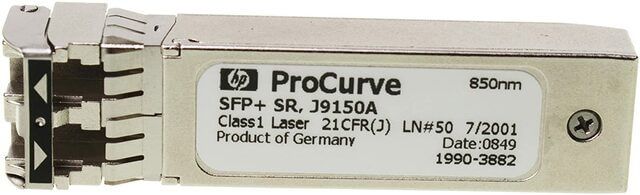

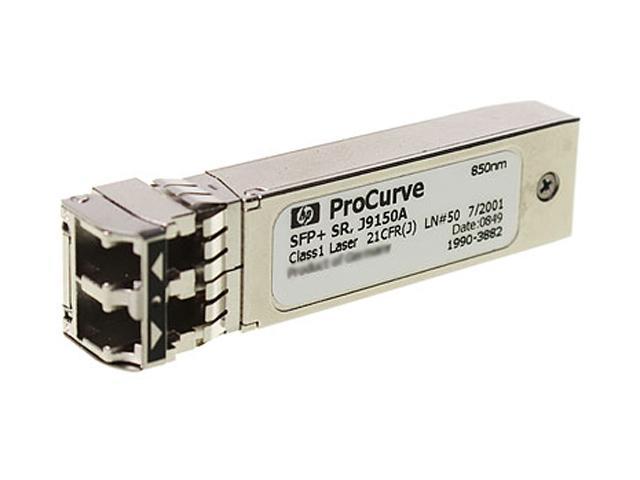

The HPE J9150A#ABA ProCurve X132 is a high-performance networking component designed to meet the demands of modern data centers and enterprise networks. This transceiver module, labeled as 10GBase-Short Reach (SR), operates at Gigabit Per Second (10Gbps) speeds over Multi-mode Fiber, making it a crucial element for high-speed and reliable data transmission. In this detailed explanation, we’ll delve into the various aspects of the HPE J9150A#ABA transceiver module, covering its specifications, functionality, and significance in networking environments.
Overview of HPE J9150A#ABA
The HPE J9150A#ABA ProCurve X132 is an advanced Small Form Factor Pluggable Plus (SFP+) transceiver module designed for 10Gbps Ethernet connectivity. Its primary function is to enable high-speed data transfer over short distances using Multi-mode Fiber optic cables. This module operates on the 10GBase-Short Reach (SR) standard, ensuring efficient and reliable communication within a network.
Functionality and Use Cases
The HPE J9150A#ABA ProCurve X132 transceiver module plays a crucial role in facilitating high-speed data transmission in networking environments. Let’s explore its functionality and potential use cases:
- High-Speed Data Transfer: The primary function of this module is to enable Gigabit Per Second (10Gbps) data transfer. This is essential for applications and services that require rapid and efficient communication between networked devices.
- Data Center Connectivity: The short-range capabilities of the 10GBase-SR standard, coupled with the 300-meter transmission distance of the HPE J9150A#ABA, make it an ideal choice for connecting devices within a data center. This includes linking servers, storage systems, and networking equipment.
- Enterprise Networking: In large enterprises where high-speed connectivity is paramount, this transceiver module can be used to establish fast and reliable links between switches, routers, and other networking devices.
- Multimedia Streaming: Applications involving high-definition multimedia streaming, such as video conferencing and online collaboration tools, benefit from the high data transfer rates provided by the HPE J9150A#ABA.
Advantages of HPE J9150A#ABA
Understanding the advantages of the HPE J9150A#ABA ProCurve X132 is essential for decision-makers and network administrators. Here are some notable benefits:
- High Performance: The module’s 10Gbps speed ensures a high level of performance, meeting the requirements of bandwidth-intensive applications.
- Reliable Connectivity: With a Duplex LC Connector and support for Multi-mode Fiber, the HPE J9150A#ABA offers reliable connectivity, minimizing the risk of signal loss and interruptions.
- Short-Range Optimization: Designed for short-range transmissions, this module is well-suited for scenarios where devices are in close proximity, such as within the same rack or data center.
- Compatibility: The Small Form Factor Pluggable Plus (SFP+) design ensures compatibility with a wide range of networking equipment that supports this industry-standard form factor.
Key Features for SFP+ Transceiver
The HPE J9150A#ABA X132 10GbE SFP+ LC SR 10GBPS Transceiver Module is designed to provide high-speed connectivity for a range of applications, including data center networking, server connectivity, and storage area networks. Some of the key features of this transceiver module include:
- High-Speed Connectivity: The HPE J9150A#ABA X132 10GbE SFP+ LC SR 10GBPS Transceiver Module supports data transfer rates of up to 10Gbps, making it ideal for high-bandwidth applications such as video streaming, data backup, and cloud computing.
- Multimode Fiber Support: This transceiver module supports multimode fiber optic cables, which are commonly used in short-distance networking applications. Multimode fiber optic cables are less expensive than single-mode cables and can transmit data over shorter distances.
- Hot-Pluggable Design: The HPE J9150A#ABA X132 10GbE SFP+ LC SR 10GBPS Transceiver Module features a hot-pluggable design, which means it can be inserted and removed from a networking device without shutting down the device. This feature allows for easy installation and maintenance of network equipment.
- Digital Diagnostics Monitoring (DDM): The HPE J9150A#ABA X132 10GbE SFP+ LC SR 10GBPS Transceiver Module supports DDM, which is a feature that allows network administrators to monitor the performance of the transceiver module. DDM provides real-time information on parameters such as temperature, voltage, and transmit/receive power, which can help to identify potential issues before they become major problems.
- Low Power Consumption: The HPE J9150A#ABA X132 10GbE SFP+ LC SR 10GBPS Transceiver Module is designed to be energy-efficient, with a low power consumption of less than 1 watt. This feature can help to reduce the overall energy consumption of a data center or network operation center.
Main Specification about this HPE J9150A#ABA
- Manufacturer: HPE
- Part Number or SKU # J9150A#ABA
- Device Type: Transceiver Module
Technical Information
- Connectivity Technology: Wired
- Cabling Type: 10GBase-SR
- Data Link Protocol: 10 GigE
- Ports: 1 LC 10-GbE Port(IEEE 802.3ae Type 10Gbase-SR), Duplex: Full Only
- Optical Wave Length: 850 nm
- Max Transfer Distance: 984 ft
- Compliant Standards: IEEE 802.3ae
Expansion / Connectivity
- Interfaces: 1 x Ethernet 10GBase-SR – LC multi-mode
- Compatible Slots: 1 x SFP+
- Cabling Distance (Maximum): 62.5 µm Multimode Cable @ 160 MHz*km = 2-26 m, 62.5 µm Multimode Cable @ 200 MHz*km = 2-33 m, 50 µm Multimode Cable @ 400 MHz*km = 2-66 m, 50 µm Multimode Cable @ 500 MHz*km = 2-82 m, 50 µm Multimode Cable @ 2000 MHz*km = 2-300 m
Environmental Parameters
- Min Operating Temperature: 32 °F (0 °C)
- Max Operating Temperature: 158 °F (70 °C)
- Operating Altitude: up to 10000 ft.
- Operating Humidity Range: 0 to 85% (noncondensing)
Compatibility
- HPE 6120XG Blade Switch, 6600-24G-4XG Switch, 6600-48G-4XG Switch
In summary, the HPE J9150A#ABA ProCurve X132 transceiver module stands as a testament to the advancements in networking technology, offering high-speed connectivity over short distances. Its compatibility, reliability, and high-performance capabilities make it a valuable component in modern data centers and enterprise networks. As technology continues to evolve, the demand for efficient and rapid data transfer will persist, and modules like the HPE J9150A#ABA will play a crucial role in meeting these demands.
The HPE J9150A#ABA ProCurve X132 is a reliable and high-performance solution for organizations seeking to enhance their network capabilities. Whether used in data centers, enterprise networks, or multimedia streaming applications, this transceiver module contributes to a seamless and efficient networking experience.
