Description
Advanced Security Features

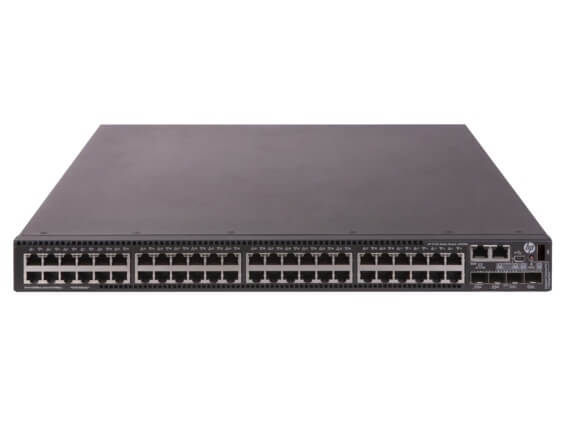

JG941A HPE 5130-48G-PoE+-2SFP+-2XGT (370W) EI 48 Ports Managed Switch is a high-performance switch designed for use in large-scale enterprise networks. It provides advanced security features to ensure that your network is protected from threats and unauthorized access.
The switch features 48 Gigabit Ethernet ports, two SFP+ ports for fiber connectivity, and two XGT (extra gigabit) ports for high-speed connectivity. It also supports Power over Ethernet Plus (PoE+) which allows you to power your network devices directly through the switch, eliminating the need for additional power sources.
The switch supports advanced security features such as Access Control Lists (ACLs) which restrict access to specific parts of the network based on criteria such as IP address or MAC address. The switch also supports VLANs (Virtual Local Area Networks) which allow you to create multiple isolated network segments within the same physical network.
The switch also supports advanced security protocols such as 802.1X for port-based authentication, RADIUS for centralized user authentication, and SSL/TLS for encrypted communication. The switch also supports advanced Quality of Service (QoS) features to prioritize network traffic, ensuring that mission-critical applications receive the bandwidth they need.
Network Management and Monitoring
The JG941A HPE 5130-48G-PoE+-2SFP+-2XGT (370W) EI 48 Ports Managed Switch is a network switch designed for network management and monitoring. It is a high-performance, secure and reliable switch that provides 48 Gigabit Ethernet ports, two SFP+ ports, and two 10GBASE-T ports for high-speed connectivity. The switch is also equipped with Power over Ethernet Plus (PoE+) capabilities, allowing for the power supply of network devices such as IP phones and wireless access points.
The switch supports network management through a web-based graphical user interface and the Simple Network Management Protocol (SNMP), making it easy to monitor and manage the network. The switch also supports advanced security features, including access control lists (ACLs) and Quality of Service (QoS), to ensure secure and reliable network traffic.
In addition, the JG941A HPE 5130-48G-PoE+-2SFP+-2XGT (370W) EI 48 Ports Managed Switch provides redundancy and high availability through its dual power supplies and redundant management functions. The switch is also designed for energy efficiency, with a maximum power supply of 370W and support for Energy Efficient Ethernet (EEE) standards.
Energy Efficiency and Power Management
The JG941A HPE 5130-48G-PoE+-2SFP+-2XGT (370W) EI 48 Ports Managed Switch is designed to be energy efficient and to provide power management capabilities. This switch uses Energy Efficient Ethernet (EEE) technology, which reduces energy consumption by monitoring network activity and adjusting power usage accordingly. This results in a reduction of electricity costs and a decrease in the environmental impact of the switch.
The switch also has power management capabilities, including the ability to set power output for different ports and to configure power-saving modes for inactive devices. This allows for more precise control of energy usage and helps to ensure that the switch is only consuming the necessary amount of energy.
Additionally, the switch is equipped with Power over Ethernet (PoE+) capabilities, which enables it to provide power to devices connected to the switch through Ethernet cables, further reducing the need for additional power supplies.
Main Specification about the HPE JG941A
- Manufacturer: HPE
- Part Number or SKU # JG941A
- Device Type: Managed Switch
Technical Information
- Enclosure Type : Rack-Mountable – 1u
- Ports : 48 X 10/100/1000 (Poe+) + 2 X 10 Gigabit Ethernet Sfp+ / 1 Gigabit Ethernet Sfp+ + 2 X 10 Gigabit Power Over Ethernet (Poe) : Poe+
- Poe Budget : 370 W
Performance
- Throughput : Up To 130.9 Mpps ¦ Routing/Switching Capacity : 176 Gbps
- Capacity : Mstp Instances : Up To 64 ¦ Simultaneous Vlans : 4094 ¦ Ipv4 Routing Table Entries : 512 ¦ Ipv6 Routing Table Entries : 256
- Mac Address Table Size : 16384 Entries
- Jumbo Frame Support : 9kb
- Routing Protocol : Rip-1, Rip-2, Igmp, Static Ipv4 Routing, Static Ipv6 Routing
- Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh-2, Scp
- Encryption Algorithm : Ssl
- Authentication Method : Secure Shell (Ssh), Radius, Tacacs, Tacacs+, Secure Shell V.2 (Ssh2), Hwtacacs
Features
- Flow Control, Dhcp Support, Arp Support, Vlan Support, Auto-Uplink (Auto Mdi/Mdi-X), Syslog Support, Weighted Round Robin (Wrr) Queuing, Ipv6 Support, Sflow, Spanning Tree Protocol (Stp) Support, Rapid Spanning Tree Protocol (Rstp) Support, Virtual Route Redundancy Protocol (Vrrp) Support, Multiple Spanning Tree Protocol (Mstp) Support, Port Aggregation Protocol (Pagp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Committed Access Rate.
- Ram : 1 GB – SDRAM
- Flash Memory : 512 MB
Expansion / Connectivity
- 48 X 1000base-T – Rj-45 – Poe+
- 2 X Gigabit / 10gbit Lan – Sfp+
- 2 X Gigabit / 10gbit Lan – Rj-45
- 1 X Serial (Console) – Rj-45
Power
- Power Device : External Power Adapter
- Voltage Required : Ac 120/230
