Description
Power and Energy Efficiency

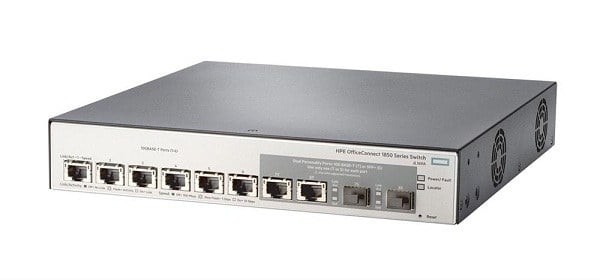

The JL169-61001 HPE OfficeConnect 1850 Switch is a managed switch designed for small to medium-sized businesses. It has 6x Gigabit Ethernet (GT) ports and 2x Gigabit Ethernet (GT) and/or Small Form-Factor Pluggable Plus (SFP+) ports, providing high-speed connectivity for both copper and fiber-optic networks.
In terms of power efficiency, the JL169-61001 switch is designed to be energy-efficient, reducing power consumption and operational costs. It supports Energy Efficient Ethernet (EEE), a technology that reduces power consumption during periods of low network utilization, and also includes an Energy Detect feature that automatically adjusts power usage based on cable length and device connectivity.
In terms of performance, the switch provides high-speed data transfer rates and low latency, making it suitable for applications such as video conferencing, data backup and restore, and virtualized environments. Additionally, it supports advanced network management features such as Quality of Service (QoS), Link Aggregation Control Protocol (LACP), and Spanning Tree Protocol (STP), allowing administrators to optimize network performance and ensure high availability.
Troubleshooting and Maintenance
Troubleshooting:
- Connectivity Issues: If there are connectivity issues with the switch, try to restart the switch and check if it resolves the issue. If not, check the cables and make sure they are securely connected and not damaged.
- Port Configuration Problems: If a particular port is not functioning properly, check the configuration of that port. If it is set to a different VLAN, try to reset it to the default settings.
- Power Problems: If the switch is not turning on, check the power cable and ensure it is securely connected. If the issue persists, try using a different power cable.
- Software Issues: If the switch is not functioning properly, try to upgrade the software to the latest version. If the issue persists, try resetting the switch to the default settings.
Maintenance:
- Regular Maintenance: It is important to perform regular maintenance on the switch, such as checking the temperature, checking the power supply, and checking the connectivity of the cables.
- Cleaning: Clean the switch regularly to ensure proper functioning. Use a damp cloth to clean the surface of the switch.
- Upgrading Software: Regularly upgrade the software to the latest version to ensure the switch functions properly and has the latest security features.
- Backups: Regularly backup the configuration settings of the switch to ensure that all settings are retained in case of a hardware failure.
- Storage: Store the switch in a cool and dry place to prevent any damage. Avoid storing the switch in direct sunlight or in an area with high humidity.
Management and Configuration
The JL169-61001 HPE 1850 6XGT And 2XGT/SPF+6 Ports Managed Switch is a compact and versatile networking solution that provides reliable connectivity and management capabilities for small to medium-sized businesses. This switch is designed to be used either as a desktop device or mounted in a rack or on a wall, making it an ideal solution for a variety of environments.
The switch features 6 Gigabit Ethernet (GT) ports and 2 10-Gigabit Ethernet (GT/SPF+) ports, which provide high-speed connectivity for servers, storage devices, and other network-connected devices. The switch also has a comprehensive set of management features, including Web GUI, command line interface (CLI), and Simple Network Management Protocol (SNMP), which allow for easy setup and configuration.
In terms of management, the switch allows for easy configuration of basic network settings, such as IP addresses, subnets, and VLANs. It also supports advanced features such as Quality of Service (QoS), Link Aggregation Control Protocol (LACP), and Spanning Tree Protocol (STP). These features ensure that network traffic is managed effectively, reducing the risk of network congestion and ensuring reliable connectivity for all devices.
Finally, the JL169-61001 HPE 1850 6XGT And 2XGT/SPF+6 Ports Managed Switch has several security features, including Access Control Lists (ACLs), port security, and dynamic ARP inspection, which protect against unauthorized access to the network and prevent network-borne attacks.
In Summary, the JL169-61001 HPE 1850 6XGT And 2XGT/SPF+6 Ports Managed Switch is a versatile and reliable networking solution that offers a range of features to meet the needs of small to medium-sized businesses. Its compact design, versatile mounting options, and comprehensive management and security features make it an ideal choice for those looking for an effective and cost-effective networking solution.
Main Specification about the HPE JL169-61001
- Manufacturer: HPE
- Part Number or SKU# JL169-61001
- Device Type: Managed Switch
Technical Information
- Network Type: 10 Gigabit Ethernet Switch
- Enclosure Type : Desktop, Rack-Mountable, Wall-Mountable 1U
- Ports : 6 X 1 Gigabit / 10 Gigabit Ethernet + 2 X 10 Gigabit Ethernet / 10 Gigabit Ethernet Sfp+
Performance
- Throughput: 119 Mpps
- Switching Capacity: 160 Gbps
- Latency (100 Mbps): 6.8 µs
- Latency (1000base-T): 2.9 µs
- Latency (10 Gbps): 6.8 µs
- Mac Address Table Size : 16000 Entries
- Jumbo Frame Support : 9220 Bytes
- Remote Management Protocol : Snmp 1, Snmp 2c, Https
- Encryption Algorithm : Ssl
Features
- Full Duplex Capability, Layer 2 Switching, Auto-Negotiation, Auto-Uplink (Auto Mdi/Mdi-X), Port Mirroring, Half Duplex Mode, Full Duplex Mode, Quality Of Service (Qos), Dhcp Server, 2mb Packet Buffer, Network Timing Protocol (Ntp)
- Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.1w, Ieee 802.3at, Ieee 802.3az
Memory Specification
- Processor : 1 X Arm Cortex-A9 : 600 Mhz
- Ram : 128 Mb – DDR3 SDRAM
Expansion / Connectivity
- Interfaces : 6 X 1000base-T – Rj-45 ¦ 2 X 10 Gigabit Ethernet / 10 Gigabit Ethernet Sfp+ – Rj-45/Sfp+
Power
- Power Device : Internal Power Supply
- Voltage Required : Ac 120/230 V ( 50/60 Hz )
- Power Consumption Operational : 42.8 Watt
