Description
Endurance Management and Extended Life

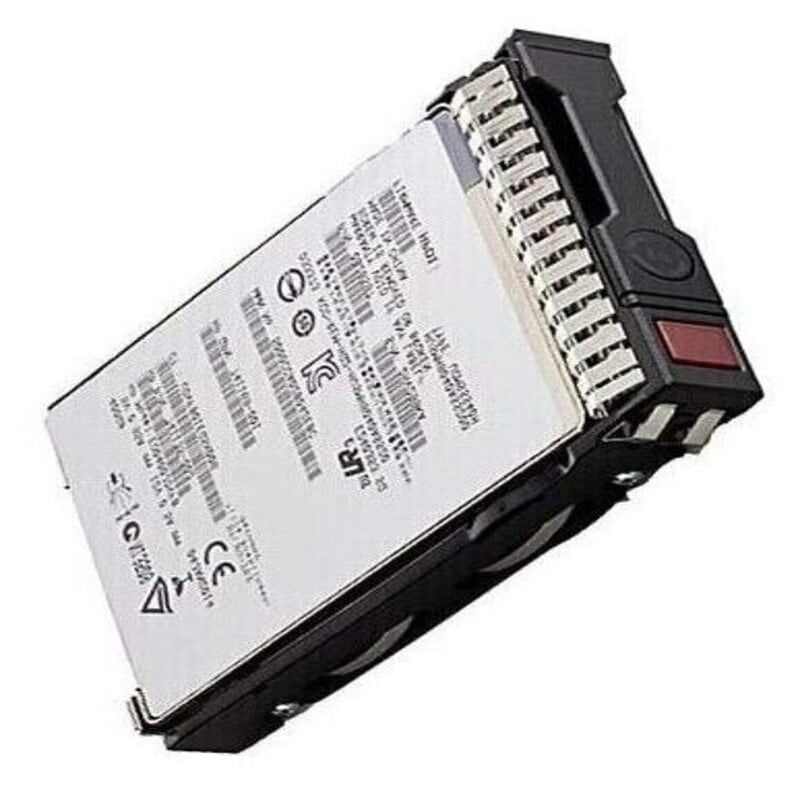

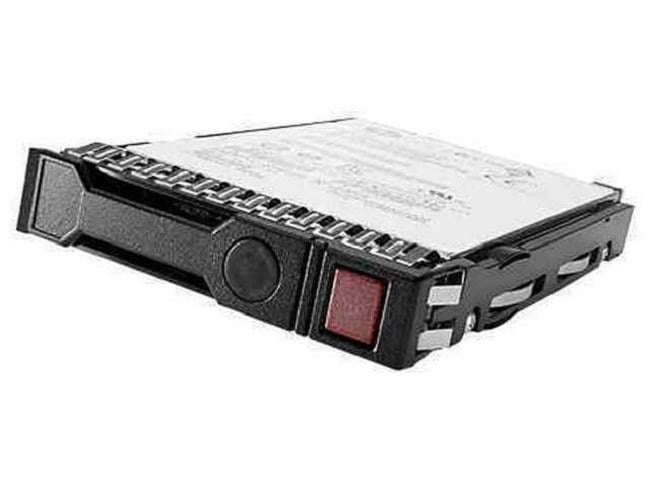

The P22268-X21 HPE 1.6TB PCI-Express NVMe Smart Carrier SSD is designed to provide reliable and long-lasting performance for data center environments. The SSD is built with high-quality NAND flash memory, which provides high endurance and a long lifespan.
The endurance of the SSD is managed through a variety of techniques, including wear leveling and bad block management. Wear leveling helps to distribute write operations evenly across the NAND flash memory, reducing the impact of write-intensive workloads and extending the lifespan of the SSD. Bad block management helps to identify and replace bad blocks in the NAND flash memory, ensuring that the SSD remains reliable and functional over time.
In addition to the built-in endurance management features, the P22268-X21 HPE 1.6TB PCI-Express NVMe Smart Carrier SSD also supports hardware-based encryption and power-loss protection. These features help to ensure data security and prevent data loss in the event of a power interruption, contributing to the overall reliability and extended lifespan of the SSD.
The SSD also features a built-in smart carrier, which provides a range of monitoring and management features for the SSD. The smart carrier provides information on the health and performance of the SSD, helping administrators to monitor and optimize the performance of the SSD.
Operating System and Driver Support
The HPE P22268-X21 1.6TB PCI-Express NVMe Mixed Use SSD is compatible with a variety of operating systems and supports a range of drivers to ensure easy integration into your computing environment.
The drive is compatible with the following operating systems:
- Microsoft Windows Server 2012 R2 and later
- Red Hat Enterprise Linux (RHEL) 7.4 and later
- SUSE Linux Enterprise Server (SLES) 12 SP3 and later
- VMware vSphere 6.5 and later
In terms of driver support, the P22268-X21 supports the NVMe 1.3 driver, which is included with most modern operating systems. This makes it easy to integrate the drive into your computing environment and ensures compatibility with the latest NVMe features and performance optimizations.
Additionally, HPE provides drivers and firmware updates for the P22268-X21 on its support website, ensuring that the drive is always up-to-date with the latest performance optimizations and bug fixes.
Troubleshooting and Maintenance
Troubleshooting and maintenance of the P22268-X21 HPE 1.6TB PCI-Express NVMe Smart Carrier SSD can generally be performed through the use of software tools and the built-in smart carrier. The smart carrier provides a range of information on the health and performance of the SSD, helping administrators to diagnose and troubleshoot issues.
If the SSD is experiencing issues, the first step in troubleshooting should be to check the smart carrier for any error messages or warning indicators. The smart carrier provides detailed information on the status of the SSD, including the temperature, power consumption, and the number of read/write operations performed. This information can be used to diagnose issues and determine the appropriate course of action.
In the event of a hardware issue with the SSD, such as a failed component, the SSD may need to be replaced. The smart carrier provides information on the warranty status of the SSD, helping administrators to determine if the SSD is still covered under warranty.
In terms of maintenance, the P22268-X21 HPE 1.6TB PCI-Express NVMe Smart Carrier SSD requires minimal maintenance. The SSD features built-in wear leveling and bad block management, which help to manage endurance and extend the lifespan of the SSD. Additionally, the smart carrier provides information on the health and performance of the SSD, helping administrators to monitor the performance of the SSD over time.
Detail Information about HPE P22268-X21
- Manufacturer :HPE
- Model Number or SKU: P22268-X21
- Device Type: Solid State Drive – Hot-Swap
- Capacity: 1.6 TB
- Form Factor: 2.5 inch SFF
- Interface: PCI Express (NVMe)
- Plug Type: Hot Pluggable
- Carrier Type: Smart Carrier NVMe (SCN)
- Workload Type: Mixed Use
- NAND Flash Memory Type: Triple-Level Cell (TLC)
- Connectivity: Dual Port
- Bundled with: HPE Smart Carrier NVMe (SCN)
- Features: Digitally Signed Firmware (DS)
- Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
- Height: 15.00 mm (0.60 inch)
Performance for HPE P22268-X21 1.6TB
- Lifetime Writes: 8561
- Endurance DWPD (Drive Writes Per Day): 3
- MAX Seq Reads Throughput (MiB/s): 7000
- Max Seq Writes Throughput (MiB/s): 2500
- Random Read Avg. Latency uSec (4KiB,Q1): 85
- Random Write Avg. Latency uSec (4KiB,Q1): 30
- Random Read IOPS (4KiB, Q=16): 190000
- Random Write IOPS (4KiB, Q=16): 235000
- Max Random Read IOPS (4KiB): 890000@Q256
- Max Random Write IOPS (4KiB): 240000@Q256
Expansion & Connectivity of HPE 1.6TB 2.5inch SSD
- Interfaces: 1 x PCI Express (NVMe)
- Compatible Bay: 2.5″ SFF
Dimensions & Weight for 2.5inch NVMe Solid State Drive
- Height: 5.75 (14.61 cm)
- Width: 8.63 inch (21.92 cm)
- Depth: 9.00 inch (22.86 cm)
- Weight: 1.508 lbs (0.68 kg)
Compatibility Information of HPE 1.6TB 2.5inch PCIE SSD
- Designed for
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (2.5inch), Medium Solution with HPE ProLiant DL360 Gen10 (2.5inch), Small Solution with HPE ProLiant DL360 Gen10 (2.5inch)
- HPE ProLiant DL Series: DL325 Gen10 (2.5inch), DL325 Gen10 Base (2.5inch), DL325 Gen10 Entry (2.5inch), DL325 Gen10 Performance (2.5inch), DL325 Gen10 SMB Solution (2.5inch), DL325 Gen10 Solution (2.5inch), DL360 Gen10 All Flash Server for Datera (2.5inch), DL360 Gen10 All Flash Server for Weka (2.5inch), DL360 Gen10 Compute Server for Cohesity DataPlatform (2.5inch), DL360 Gen10 Low (2.5inch), DL360 Gen10 Network Choice (2.5inch), DL360 Gen10 Performance for Cohesity DataPlatform (2.5inch), DL360 Gen10 Premium (2.5inch), DL360 Gen10 SMB (2.5inch), DL360 Gen10 SMB Network Choice (2.5inch), DL360 Gen10 Solution (2.5inch), DL360 Gen10 Special Server (2.5inch), DL380 Gen10 All Flash Server for Datera (2.5inch), DL380 Gen10 Entry SMB (2.5inch), DL380 Gen10 for SAP HANA Compute Block (2.5inch), DL380 Gen10 Hybrid Server for Datera (2.5inch), DL380 Gen10 Network Choice (2.5inch), DL380 Gen10 Network Choice for CTERA (2.5inch), DL380 Gen10 Server for CTERA (2.5inch), DL380 Gen10 SMB (2.5inch), DL380 Gen10 SMB Networking Choice (2.5inch), DL380 Gen10 Solution (2.5inch), DL385 Gen10 (2.5inch), DL385 Gen10 Base (2.5inch), DL385 Gen10 Entry (2.5inch), DL385 Gen10 High-Performance (2.5inch), DL385 Gen10 Performance (2.5inch), DL385 Gen10 SMB (2.5inch), DL385 Gen10 Solution (2.5inch), DL560 Gen10 for SAP HANA Compute Block (2.5inch), DL580 Gen10 (2.5inch), DL580 Gen10 Base (2.5inch), DL580 Gen10 Entry (2.5inch), DL580 Gen10 Performance (2.5inch)
- HPE ProLiant ML Series: ML350 Gen10 (2.5inch), ML350 Gen10 Base (2.5inch), ML350 Gen10 Entry (2.5inch), ML350 Gen10 High Performance (2.5inch), ML350 Gen10 Performance (2.5inch), ML350 Gen10 SMB (2.5inch), ML350 Gen10 Solution (2.5inch), ML350 Gen10 Special Server (2.5inch), ML350 Gen10 Sub-Entry (2.5inch)
- HPE Synergy 480 Gen10 Compute Module (2.5inch), 480 Gen10 Premium Backplane Compute Module (2.5inch), 480 Gen10 w/o Drives Compute Module (2.5inch)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
