Description
Performance and Scalability

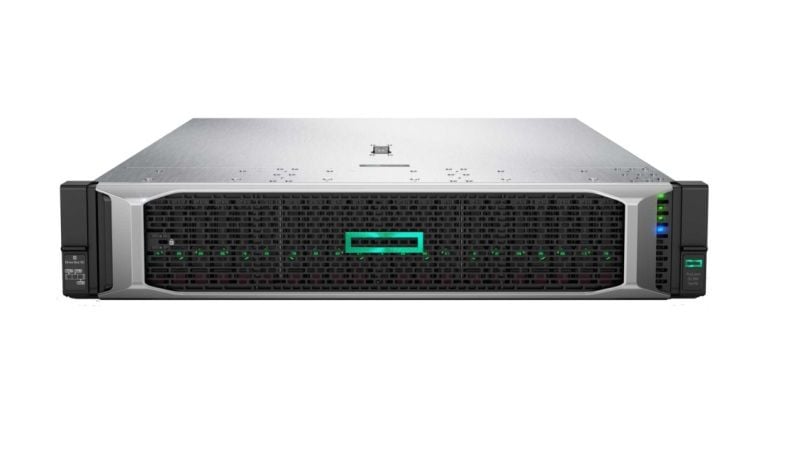

The P40426-B21 HPE Proliant DL380 Gen10 SMB Networking Choice Model is a high-performance and scalable server designed for small and medium-sized businesses. It is equipped with powerful hardware components that can handle complex workloads and support multiple users simultaneously. Let’s take a closer look at its performance and scalability features:
Processor: The server is powered by a single Intel Xeon 24-core Gold 6248R processor clocked at 3 GHz. This processor is based on the latest 14nm architecture and supports Hyper-Threading technology, which allows each core to handle two threads simultaneously. With a total of 48 threads and a turbo boost frequency of up to 4.0 GHz, this processor can handle demanding workloads with ease.
Memory: The server comes with 32GB DDR4 SDRAM, which is expandable up to 3TB. The memory runs at a speed of 2933 MT/s and supports ECC (Error Correcting Code) technology, which helps to prevent data corruption and ensure system stability. With such a large memory capacity, the server can support multiple users and run multiple applications simultaneously without any performance issues.
Storage: The server features a Smart Array S100i Embedded SW RAID controller, which provides hardware-level data protection and RAID support. It also comes with 8 SFF (Small Form Factor) drive bays that can accommodate 2.5-inch SAS, SATA, or NVMe drives. The server supports up to 24 NVMe drives, which can deliver high-performance storage for data-intensive workloads.
Power: The server is equipped with a 1x 800W RPS (Redundant Power Supply) that provides power redundancy and helps to ensure system uptime. The 2U form factor of the server allows for easy installation in a standard server rack.
Scalability: The server is highly scalable and can be customized to meet the specific needs of your business. You can expand the memory up to 3TB, add more storage drives, and upgrade the processor to a higher-end model. The server also supports multiple expansion slots, including PCIe 3.0 and PCIe 4.0, which can accommodate additional networking cards, storage controllers, or other add-in cards.
Remote Management Options
The HPE Proliant DL380 Gen10 server comes with several remote management options, which allow you to monitor and manage the server from a remote location. These options include:
- Integrated Lights-Out (iLO): iLO is an embedded server management technology that enables remote server management, including monitoring and controlling server power, health, and status. iLO provides a web-based interface, which can be accessed from anywhere with an internet connection. The DL380 Gen10 comes with iLO 5, which offers improved security and scalability compared to previous versions.
- HPE OneView: HPE OneView is a management platform that provides a unified view of all your HPE infrastructure, including servers, storage, and networking. With OneView, you can automate routine tasks, monitor performance, and manage firmware updates across multiple servers from a single console.
- HPE Integrated Lights-Out (iLO) Amplifier Pack: Amplifier Pack is a free software tool that allows you to manage multiple servers and iLO devices from a single interface. Amplifier Pack provides a dashboard view of all your servers, alerts for critical events, and the ability to automate common tasks across multiple devices.
- HPE Insight Remote Support: Insight Remote Support is a cloud-based service that provides proactive monitoring and support for your HPE infrastructure. Insight Remote Support can detect and diagnose issues before they become critical, and can automatically open support cases with HPE support if necessary.
Memory Options and Configurations
The P40426-B21 HPE Proliant DL380 Gen10 SMB Networking Choice Model is a high-performance 2U rack-mounted server designed for small and medium-sized businesses. It features a powerful 1x Intel Xeon 24-core Gold 6248R/3 GHz processor, 32GB DDR4 SDRAM, Smart Array S100i Embedded SW RAID, 8SFF (Small Form Factor) drive bays, and a 1x 800W RPS (Redundant Power Supply). In terms of memory options and configurations, the server supports the following:
- Memory Capacity: The HPE Proliant DL380 Gen10 SMB Networking Choice Model supports a maximum memory capacity of 3TB. This can be achieved by installing 24 DIMM slots, each supporting up to 128GB DDR4 memory modules.
- Memory Type: The server supports DDR4 Registered (RDIMM), Load Reduced (LRDIMM), and Non-Volatile Dual In-line Memory Module (NVDIMM) memory modules. The supported memory speed is 2933 MT/s.
- Memory Configuration: The server supports a range of memory configurations depending on the number of installed processors. For a single processor configuration, the server supports up to 12 DIMMs. For a dual-processor configuration, the server supports up to 24 DIMMs.
- Memory Protection: The server provides advanced memory protection features, including Memory Lock Step, Advanced ECC, and Online Spare Memory. These features help ensure data integrity and availability in the event of a memory failure.
Product Information
- Manufacturer : Hewlett Packard Enterprise (HPE)
- MPN: P40426-B21
- Server Scalability : 2-way
- Height (rack Units) : 2u
- SKU: P40426-B21
- Product Name : Proliant Dl380 Gen10 – Rack Mountable Server ( Smb Networking Choice Model)
Processor & Chipset
- Cpu : 2nd Gen Intel Xeon Gold 6248r / 3 Ghz
- Max Turbo Speed : 4 Ghz
- Number Of Cores : 24-core
- Cpu Qty : 1
- Max Cpu Qty : 2
- Cpu Upgradability : Upgradable
- Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
- Cpu Socket : Fclga3647 Socket
- Chipset Type : Intel C621
Cache Memory
- Installed Size : L3 Cache – 35.75 Mb
- Cache Per Processor : 35.75 Mb
Ram
- Installed Size : 32 Gb / 1.5 Tb (max)
- Technology : Ddr4 Sdram – Advanced Ecc
- Effective Memory Speed : 2933 Mhz
- Rated Memory Speed : 2933 Mhz
- Form Factor : Dimm 288-pin
- Slots : 24 (total) / 23 (empty)
- Features : Registered, Dual Rank, Slots 13 – 24 Are Available In Two-processor Configuration Only, Hpe Smartmemory
- Configuration Features : 1 X 32 Gb
- Ram Supported : 3 Tb Load-reduced – Ecc 1.5 Tb Registered – Ecc 192 Gb Non-volatile – Ecc
Hard Drive
- Type : No Hdd
Storage Controllers
- Type : 1 X Sata – Pcie 3.0 X4
- Controller Interface Type : Sata 6gb/s
- Storage Controller Name : Hpe Smart Array S100i Sr Software Raid
- Channel Qty : 14
- Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Optical Storage
- Type: No Optical Drive
Card Reader
- Type : Card Reader
- Supported Flash Memory Cards : Microsd
Graphics Controller
- Video Memory : 16 Mb
- Video Interfaces : Vga
Network & Communication
- Ethernet Ports : 2 X 10 Gigabit Ethernet
- Ethernet Controller : Broadcom Bcm57414
- Data Link Protocol : 10 Gigabit Ethernet
- Remote Management Controller : Integrated Lights-out 5
- Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity
- Expansion Bays Total (free)
- 8 (total) / 8 (free) X Hot-swap 2.5 Sff
- Expansion Slots Total (free) :
- 1 (total) / 1 (free) X Microsd Card (internal)
- 1 (total) / 1 (free) X Pcie 3.0 X8 – Full-length, Full-height
- 1 (total) / 1 (free) X Pcie 3.0 X16 – Full-length, Full-height
- 1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height
- 1 (total) / 0 (free) X Flexiblelom
Interfaces & Ports
- 3 X Usb 3.0 (1 Front, 2 Rear)
- 1 X Vga
- 2 X Lan (10gigabit Ethernet)
- 1 X Hpe Ilo
- 1 X Hpe Ilo (service Port)
Miscellaneous
- Included Accessories :
- Cable Management Arm
- 4 Standard Fans
- Sff Easy Install Rails
Compliant Standards
- Weee, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1
Power Description
- Device Type : Power Supply – Hot-plug
- Power Redundancy : Optional
- Power Redundancy Scheme : 1+1 (with Optional Power Supply)
- Installed Qty : 1
- Max Supported Qty : 2
- Voltage Required : Ac 120/230 V (50/60 Hz)
- Power Provided : 800 Watt
- 80 Plus Certification : 80 Plus Platinum
Operating System / Software
- Os Provided
- No Operating System
- Os Certified
- Centos
- Microsoft Windows Server 2012 R2
- Vmware Vsphere 6.0 (esxi)
- Suse Linux Enterprise Server 11 Sp4
- Microsoft Windows Server 2016
- Red Hat Enterprise Linux 7.3
- Red Hat Enterprise Linux 6.9
- Vmware Vsphere 6.5
- Suse Linux Enterprise Server 12 Sp2
- Clearos
Environmental Standards
- Energy Star Certified : Yes
- Energy Star Version : 3.0
Environmental Parameters
- Min Operating Temperature : 50 °f
- Max Operating Temperature : 95 °f
- Humidity Range Operating : 8 – 90% (non-condensing)
Dimensions & Weight
- Width : 17.5 In
- Depth : 26.7 In
- Heigh : 3.4 In
- Weight : 32.54 Lbs
