Description
High-Performance Storage

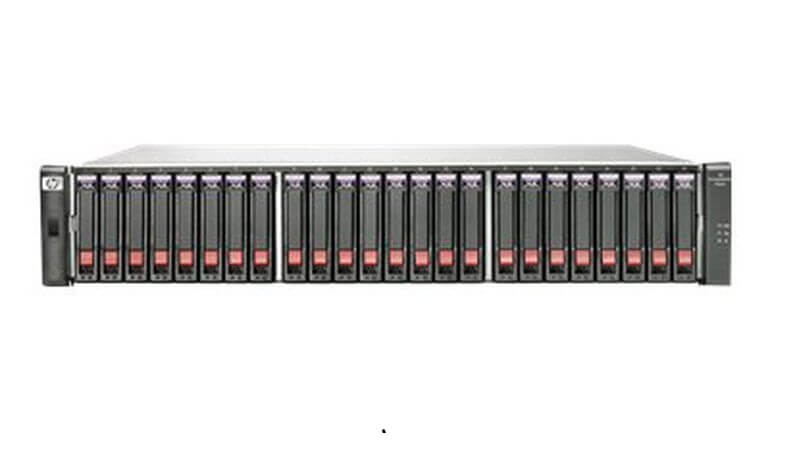

The HPE Modular Smart Array 2050 SAS DC Power LFF Storage is a high-performance storage solution designed for enterprise-level data centers and IT environments. This storage array utilizes a SAS interface for fast and reliable data transfer, and is equipped with Large Form Factor (LFF) hard drives. The “DC Power” designation indicates that the unit is equipped with dual power supplies for added reliability and availability.
The Modular Smart Array 2050 is part of HPE’s MSA family of storage solutions, which are known for their scalability, performance, and reliability. With support for both SAS and SATA hard drives, this storage array allows for a flexible and cost-effective storage solution that can be tailored to meet specific business needs.
The Modular Smart Array 2050 also features advanced data protection features, such as hardware-based RAID protection and hot-swappable components, to ensure that data is always safe and secure. Additionally, the unit supports both online firmware upgrades and remote management capabilities, allowing for easy maintenance and administration.
Easy Deployment and Integration
The HPE Modular Smart Array 2050 SAS DC POWER LFF Storage (Q2P39A) is a storage solution designed for easy deployment and integration in data center environments.
The device supports both 12Gbps SAS and 6Gbps SATA hard drives and provides high performance and reliability through features such as hot-plug hard drives, dual redundant active-active controllers, and RAID support.
In terms of deployment, the HPE MSA 2050 supports a modular design, which allows you to easily expand your storage capacity as your needs grow. It also supports flexible deployment options such as rack-mount, tower, or under-desk configurations.
In terms of integration, the HPE MSA 2050 supports industry-standard protocols and interfaces, making it compatible with a wide range of hardware and software. This allows for seamless integration with your existing data center infrastructure. Additionally, the device supports remote management through HPE’s Array Configuration Utility (ACU) and the HPE Systems Management Homepage, making it easy to manage and monitor the storage system remotely.
Advanced Data Protection
The HPE Modular Smart Array 2050 SAS DC POWER LFF Storage Hard Array features advanced data protection capabilities to ensure the safety and security of your stored data. This includes the following features:
- RAID: The hard array supports multiple RAID levels including RAID 0, 1, 10, 5 and 6. RAID provides data protection by mirroring data across multiple disks to prevent data loss in case of disk failure.
- Data Encryption: The hard array supports encryption of data at rest, which means that data is encrypted when it is stored on disk. This ensures that in case of theft or unauthorized access, the data cannot be easily read without the encryption key.
- Snapshots: Snapshots provide a point-in-time copy of the data stored on the hard array. This allows for fast recovery in case of data loss or corruption.
- Remote Replication: The hard array supports remote replication, which allows for the replication of data to a remote site for disaster recovery purposes.
- Backup and Restore: The hard array supports backup and restore capabilities, which allows for the creation of backups and the restoration of data in case of data loss.
General Information:
- Device Type: Hard Drive Array
- Enclosure Type: Rack-Mountable – 2U
Chassis:
- Installed Devices / Modules Qty: 0
- Supported Devices / Modules Qty: 12
- Supported Drives: SAS-3
STORAGE:
- Max Supported Capacity: 120 TB
- Hdd Array External Interface: SAS 12GB/S
- Maximum Luns: 512
Storage Controllers:
- Type: 2 X Raid
- Interface Type: Sas 12GB/S
- Data Transfer Rate: 1.2 GBPS
- Raid Level: Raid 0, Raid 1, Raid 3, Raid 5, Raid 6, Raid 10, Raid 50
Power:
- Power Device: 2 X Internal Power Supply – Hot-Plug
- Max Supported Qty: 2
- Power Redundancy: Yes
- Voltage Required: DC 48 – 60 V
