Description
Data Protection and Disaster Recovery Features

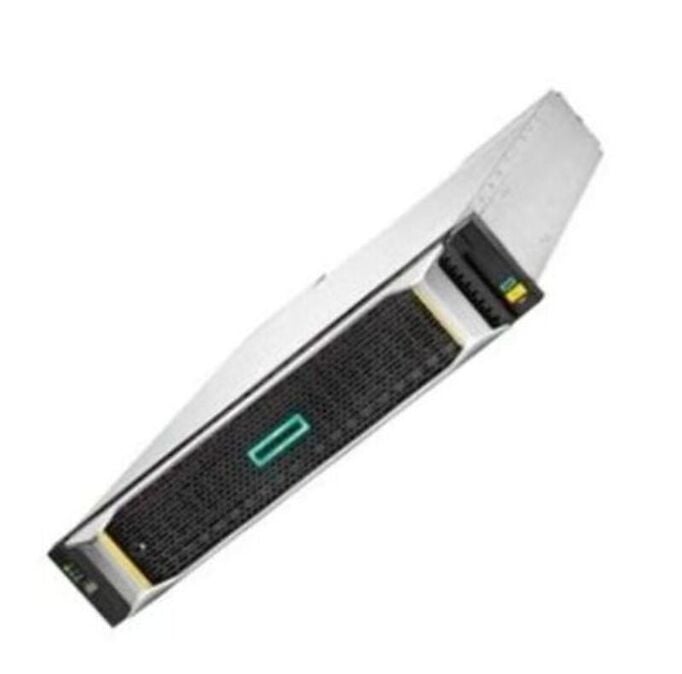

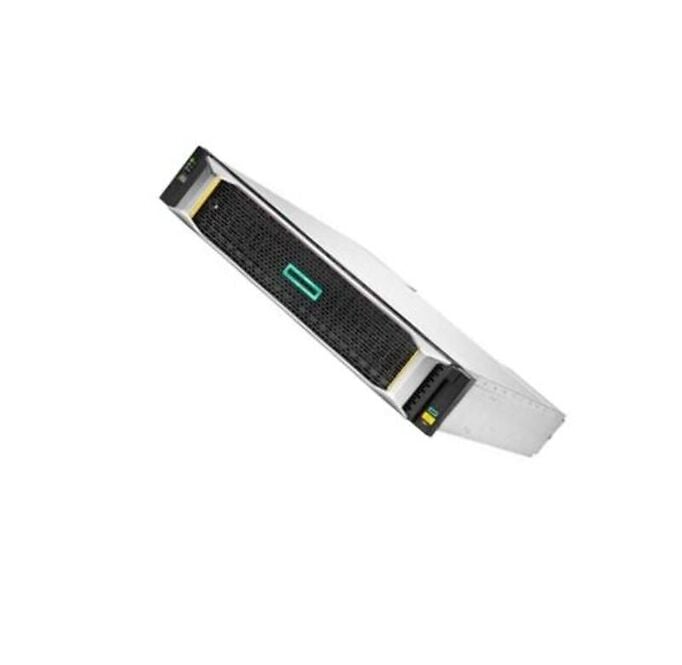

The HPE R0Q80A Modular Smart Array (MSA) 2u is a data storage solution that offers several features for data protection and disaster recovery.
Data protection features:
- The MSA uses RAID (redundant array of independent disks) technology to protect data in case of disk failure. It supports multiple RAID levels, including RAID 0, 1, 5, 6, and 10.
- The MSA also has built-in data replication capabilities, allowing data to be copied to another location for backup and disaster recovery purposes.
- It supports snapshots, which allow administrators to take point-in-time copies of data for quick and easy recovery in case of accidental deletion or corruption.
Disaster recovery features:
- The MSA supports remote replication, allowing data to be replicated to another MSA unit at a remote location, providing a disaster recovery solution.
- It has dual controllers and power supplies for high availability, ensuring that data remains available even in case of hardware failure.
- The MSA also supports automatic failover and failback, which allows it to switch to a redundant path in case of a network or storage failure.
Network Connectivity and Protocols
The HPE R0Q80A Modular Smart Array is a storage solution that provides high-performance and reliability to enterprise-level organizations. It uses Fibre Channel technology, which is a high-speed data transfer protocol that is commonly used in enterprise storage area networks (SANs).
The Fibre Channel protocol allows for data to be transferred at speeds of up to 16 Gbps, making it ideal for applications that require high bandwidth and low latency. The HPE R0Q80A Modular Smart Array comes with two 16 Gb Fibre Channel host ports and two 16 Gb Fibre Channel drive side ports, providing high-speed connectivity for both data access and storage.
The HPE R0Q80A Modular Smart Array also supports other network connectivity protocols such as iSCSI and SAS. iSCSI is a protocol that allows for block-level storage over TCP/IP networks, while SAS (Serial Attached SCSI) is a point-to-point protocol that is typically used for connecting individual hard drives or other storage devices.
The HPE R0Q80A Modular Smart Array also supports a range of management protocols, including SNMP (Simple Network Management Protocol), SMI-S (Storage Management Initiative Specification), and web-based GUI (Graphical User Interface). These protocols allow for efficient and flexible management of the storage system, enabling administrators to monitor and configure the system remotely.
Energy Efficiency and Power Management
The HPE R0Q80A Modular Smart Array 2u 16GB Fibre Channel HD is a storage solution designed for small to medium-sized businesses that need to manage and store large amounts of data. In addition to offering high performance and reliability, the device is also designed with energy efficiency and power management features to help reduce overall operating costs.
One of the key energy-efficient features of the R0Q80A is its adaptive cooling technology. This technology uses sensors to monitor the temperature inside the device and adjusts the cooling system accordingly. This helps to minimize energy consumption while still ensuring that the device remains cool and operates at optimal levels.
The R0Q80A also features power management capabilities that allow administrators to set power usage limits and adjust the power settings of individual components within the system. This helps to further reduce energy consumption while still providing the necessary level of performance.
In addition to these features, the R0Q80A also utilizes advanced power supplies that are designed to operate at high levels of efficiency. These power supplies are able to convert incoming AC power into DC power with minimal energy loss, further reducing the overall energy consumption of the device.
Main Information about HPE R0Q80A Modular Smart Array
- HPE R0Q80A Modular Smart Array 2062 16gb Fibre Channel Sff Storage – Hard Drive Array
- Manufacturer : HPE
- Model Number or SKU# R0Q80A
- Product Type : Enclosures
- Sub Type: Modular Smart Array
Technical Features for Fibre Channel
- total Array Capacity: 3.84 Tb
- max Supported Capacity: 92.16 Tb
- hdd Array External Interface: 16gb Fibre Channel
- type: Raid (sas-3)
- installed Qty: 2
- interface Type: Sas 12gb/s
- data Transfer Rate: 1.2 Gbps
- cache / Buffer Size (max): 24 Gb
- max Storage Devices Qty: 240
- raid Level: Raid 0, Raid 1, Raid 3, Raid 5, Raid 6, Raid 10, Raid 50
- storage Controller (2nd)
- installed Qty: 2
expansion / Connectivity for Hard Drive Array
- expansion Bays: 24 (total) / 24 (free) – 2.5 Sff
- interfaces: 8 X Sas 12gb/s ¦ 2 X Mini-usb 2.0 (management) ¦ 2 X Ethernet 1000base-t (management) – Rj-45
power
- power Device: 2 X Internal Power Supply – Hot-plug
- max Supported Qty: 2
- power Redundancy: Yes
- power Redundancy Scheme: 1+1
