Description

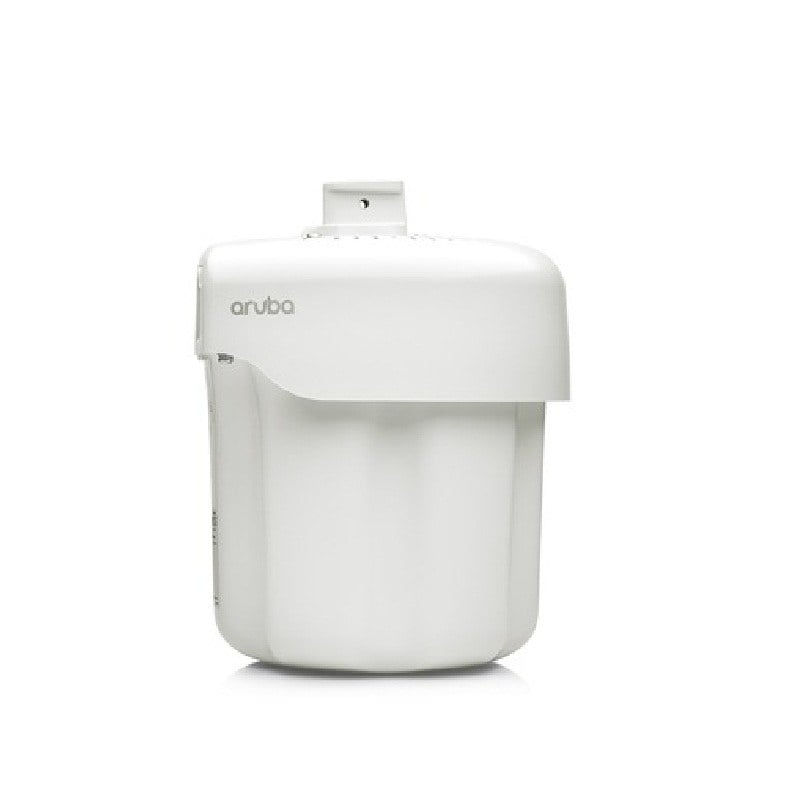

Introduction to HPE R3P69A Aruba Wireless Access Point
The HPE R3P69A Aruba AP-375EX Wireless Access Point is a high-performance wireless access point designed for outdoor use. This access point offers high-speed wireless connectivity with a range of up to 300 feet, making it ideal for use in large outdoor areas such as parks, campuses, and stadiums.
In this article, we will provide an in-depth review of the HPE R3P69A Aruba AP-375EX Wireless Access Point, including its features, specifications, and benefits. We will also discuss its design, installation, and management options to help you understand its capabilities.
Features
The HPE R3P69A Aruba AP-375EX Wireless Access Point is designed to offer high-performance wireless connectivity in outdoor environments. Some of the key features of this access point are:
- High-speed wireless connectivity: The HPE R3P69A Aruba AP-375EX Wireless Access Point offers high-speed wireless connectivity with a maximum data rate of up to 2.5 Gbps. This makes it ideal for use in high-density environments where multiple users are accessing the network simultaneously.
- Multi-user MIMO technology: The access point uses multi-user MIMO (MU-MIMO) technology, which allows multiple users to access the network simultaneously without experiencing any performance degradation. This ensures that all users can enjoy a seamless and uninterrupted wireless experience.
- Dual-radio 802.11ac Wave 2: The access point supports dual-radio 802.11ac Wave 2 technology, which provides high-speed wireless connectivity with improved reliability and performance. This technology also supports beamforming, which helps to improve the signal strength and range of the access point.
- Integrated Bluetooth and Zigbee radios: The HPE R3P69A Aruba AP-375EX Wireless Access Point comes with integrated Bluetooth and Zigbee radios, which can be used for location tracking, asset management, and other IoT applications.
- Advanced security features: The access point offers advanced security features such as WPA3 and Enhanced Open, which help to protect the network from unauthorized access and ensure data privacy.
Specifications
The HPE R3P69A Aruba AP-375EX Wireless Access Point has the following specifications:
- Wireless standard: 802.11ac Wave 2
- Wireless speed: Up to 2.5 Gbps
- Antenna type: Integrated omni-directional antennas
- Antenna gain: 5 dBi (2.4 GHz), 6 dBi (5 GHz)
- Radio frequency bands: 2.4 GHz, 5 GHz
- Maximum transmit power: 29 dBm (2.4 GHz), 28 dBm (5 GHz)
- Maximum power consumption: 23.5 W
- Dimensions: 11.8 x 11.8 x 3.5 inches
- Weight: 6.3 pounds
Design
The HPE R3P69A Aruba AP-375EX Wireless Access Point has a rugged and weatherproof design that is designed for outdoor use. The access point is constructed with a high-quality polycarbonate material that provides protection against harsh weather conditions and extreme temperatures.
The access point also comes with integrated omni-directional antennas that provide 360-degree coverage, ensuring that all areas within its range receive a strong and stable wireless signal.
Main Information about this HPE R3P69A
- Manufacturer : HPE
- Model Number or SKU# R3P69A
- Product Type: Wireless Access Point
Key Features of Poe+ Wireless Access Point
- Form Factor: External : Outdoor
- Data Link Protocol: Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n, Ieee 802.11ac
- Frequency Band: 2.4 Ghz, 5 Ghz
- Performance: Maximum Data Rate (2.4 Ghz): 300 Mbps , Maximum Data Rate (5 Ghz): 1.733 Gpps
- Capacity: Wireless Clients Per Wi-fi Radio: 256 , Bssids Per Radio: 16
- Os Required: Arubaos, Instantos
- Power Over Ethernet (poe) Supported: Poe+
Expansion / Connectivity for 2.4GBPS Wireless AP
- Interfaces:
- 1 X 1000base-x – Sfp (mini-gbic)
- 1 X 1000base-t – Rj-45 1 X Micro-usb
Power
- Power Over Ethernet (poe) Supported: Poe+
- Power Consumption Operational: 23 Watt
