Introduction

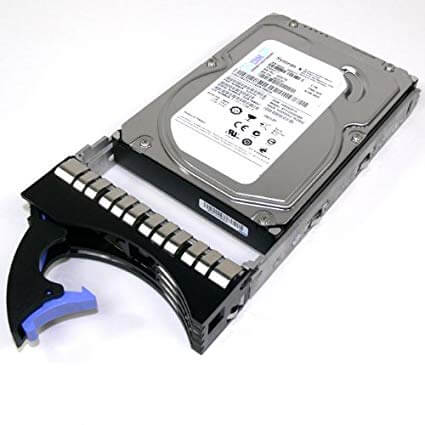

The 00FN234 IBM Hard Drive is a high-performance storage solution designed for use in enterprise-class servers and storage systems. With a capacity of 6TB, this hard drive uses SAS (Serial Attached SCSI) interface which provides a high data transfer rate of 12 Gbps. It also features a rotational speed of 7.2K RPM and a standard 3.5-inch form factor. The hard drive is designed for high-performance use and is optimized for storing frequently accessed data, it is also designed for high durability and reliability. The hard drive comes with a tray for easy installation and maintenance, making it a reliable and efficient option for businesses and organizations that require high storage capacity and performance.
Capacity and Interface
The 00FN234 IBM Hard Drive has a capacity of 6TB, providing ample storage space for businesses and organizations that require large amounts of data storage. With this capacity, it can store a large amount of data such as videos, images, documents, and more.
The hard drive uses SAS (Serial Attached SCSI) interface, which is a high-performance interface designed for enterprise-class servers and storage systems. SAS provides a faster data transfer rate of 12 Gbps, which is faster than traditional SATA interface, allowing for faster data access and retrieval. Additionally, SAS interface also supports more devices on a single cable, making it more efficient and cost-effective in terms of cabling and port utilization. This interface also supports dual-port connectivity, which provides an additional level of data protection and availability.
It’s important to note that SAS hard drives are generally more expensive than SATA hard drives, but it provides higher performance and reliability in enterprise-class servers and storage systems.
Form Factor and Compatibility
The 00FN234 IBM Hard Drive has a 3.5-inch form factor, which is a standard size for enterprise-class hard drives and is compatible with most servers and storage systems that support 3.5-inch hard drives. This form factor is larger than 2.5-inch hard drives, which are typically used in laptops and other portable devices, but it allows for more storage capacity and higher performance.
In terms of compatibility, the 00FN234 IBM Hard Drive is compatible with servers and storage systems that support SAS interface and 3.5-inch hard drives. It is designed to be integrated with different enterprise-class servers and storage systems, it is compatible with most servers and storage systems that have SAS interface and are designed to support 3.5-inch form factor hard drives.
It’s important to check your server or storage system’s documentation or with the manufacturer to confirm compatibility with the hard drive before purchasing. It’s always recommended to use the hard drives that are tested and approved by the manufacturer for the specific server or storage system to ensure optimal performance and reliability.
Main Specifications
Product Description : IBM GEN2 512E – Hard Drive – 6 TB – SAS 12GB/S
MPN : 00FN234
Type : Hard Drive – Hot – Swap – Nearline
Capacity : 6 TB
Form Factor : 3.5 X 1/3H
Interface : SAS 12GB/S
Data Transfer Rate : 1.2 GBPS
Spindle Speed : 7200 RPM
Features : Advanced Format Technology , S.M.A.R.T., 256-BIT AES
SKU : 00FN234
Extended Specifications
Device Type : Hard Drive – Hot-Swap – Nearline
Capacity : 6 TB
Form Factor : 3.5 X 1/3H
Interface : SAS 12GB/S
Features : Advanced Format Technology , S.M.A.R.T., 256-Bit AES
Performance
Drive Transfer Rate : 1200 MBPS (External)
Spindle Speed : 7200 RPM
Expansion & Connectivity
Interfaces : 1 X SAS 12 GB/S
Compatible Bays : 1 X Hot-Swap – 3.5 X 1/3H
Environmental Parameters
Min Operating Temperature : 41 °F
Max Operating Temperature : 131 °F
Humidity Range Operating : 5 – 90% (Non-Condensing)
Dimension and Weight
Width : 4 Inch
Depth : 5.8 Inch
Height : 1 Inch
Weight : 1.52 LBS
