Description
Product Overview

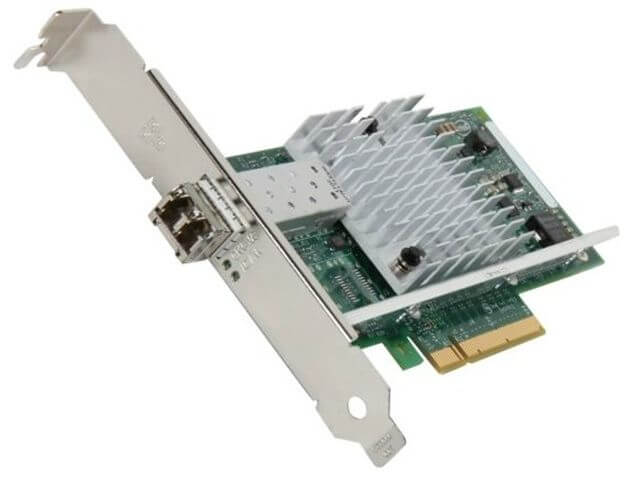

The E10G41BFSRBLK Intel X520-SR1 is a high-speed network adapter designed for use in servers and workstations. It provides a single 10 Gigabit Ethernet (10GbE) port, which delivers high-speed data transfer rates for demanding applications. In this article, we will explore the features of this network adapter in detail.
Features
The E10G41BFSRBLK Intel X520-SR1 is a PCI-E 2.0 x8 network adapter, which provides high-speed connectivity to servers and workstations. The card features a single 10GbE port, which supports a maximum data transfer rate of 10 Gbps. This makes it ideal for use in applications that require high-speed data transfer rates, such as data center and cloud computing environments.
The network adapter is designed to be used with fiber-optic cabling, which provides high-speed connectivity over longer distances. The card also features a low-profile design, which makes it an ideal choice for servers and workstations with limited space.
Compatibility
The E10G41BFSRBLK Intel X520-SR1 is designed to be compatible with a wide range of operating systems, including Microsoft Windows, Linux, and VMware ESXi. The card is also designed to work with a range of network protocols, including Ethernet, Fibre Channel over Ethernet (FCoE), and iSCSI.
Advanced Features
In addition to its high-speed connectivity and broad compatibility, the E10G41BFSRBLK Intel X520-SR1 also includes a range of advanced features designed to enhance performance and reliability. These features include:
Virtualization support: The card includes support for virtualization technologies such as VMware vSphere and Microsoft Hyper-V, which allows for the creation of virtual networks and virtual machines.
Quality of Service (QoS): The card includes advanced QoS features that allow for the prioritization of network traffic based on application and user requirements. This helps to ensure that critical applications receive the necessary bandwidth and performance.
Network management features: The card includes support for Intel Ethernet Flow Director, which allows for the efficient distribution of network traffic across multiple processors. The card also includes support for Intel Ethernet Power Management, which helps to reduce power consumption and extend the life of the card.
Security features: The card includes advanced security features such as IEEE 802.1x authentication and Secure Sockets Layer (SSL) support.
Teaming support: The card includes support for teaming, which allows for the creation of multiple connections between the card and the network switch. This helps to provide redundancy and failover capabilities, which can help to ensure network availability.
In summary, the E10G41BFSRBLK Intel X520-SR1 is a high-speed network adapter designed for use in servers and workstations. The card features a single 10GbE port, which supports a maximum data transfer rate of 10 Gbps, and is designed to fit into a PCI-E 2.0 x8 slot. The card is also designed to be a low-profile card, which makes it an ideal choice for organizations that require high-speed connectivity in compact systems. The card includes a range of advanced features designed to enhance performance and reliability, making it an excellent choice for organizations that require high-speed connectivity and advanced network capabilities.Main Information about the Intel E10G41BFSRBLK
- Manufacturer: Dell
- Part Number or SKU# E10G41BFSRBLK
- Device Type: Network Adapter
Technical Information
- Connectivity Technology : Wired
- Cabling Type : Ethernet 10GBASE-SR
- Data Link Protocol : 10 GIGABIT Ethernet
- Data Transfer Rate : 10 GBPS
- Max Transfer Distance : 1000 FT
- Network / Transport Protocol : TCP/IP, UDP/IP, IPSEC, ISCSI
- Remote Management Protocol : SNMP, RMON
- Status Indicators : Link Activity, Port Transmission Speed, Link Ok
- Features : Flow Control, Vlan Support, Packet Filtering, Quality Of Service (Qos), Virtual Machine Device Queues (Vmdq)
- Compliant Standards : IEEE 802.3, IEEE 802.1Q, IEEE 802.1P, IEEE 802.3AD (LACP), IEEE 802.1AE, IEEE 802.1AS
Processor / Memory
- Processor : 82599ES Intel
Expansion / Connectivity
- Interfaces : 1 X Network Ethernet 10GBASE-SR LC Multi-Mode X 2
- Compatible Slots : 1 X PCI Express 2.0 X8 Full-Length, Low-Profile.
