Description

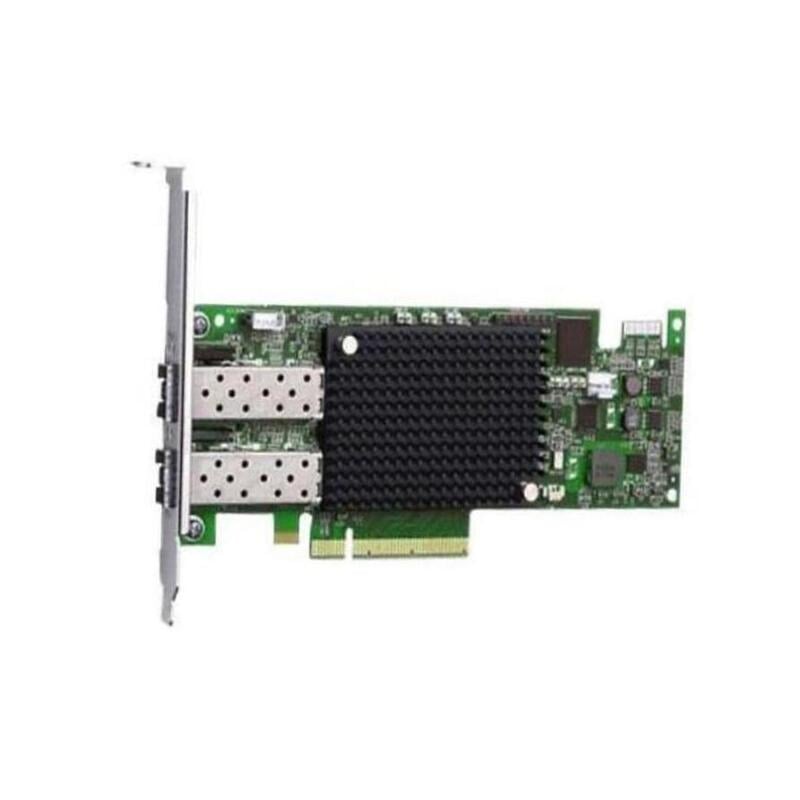

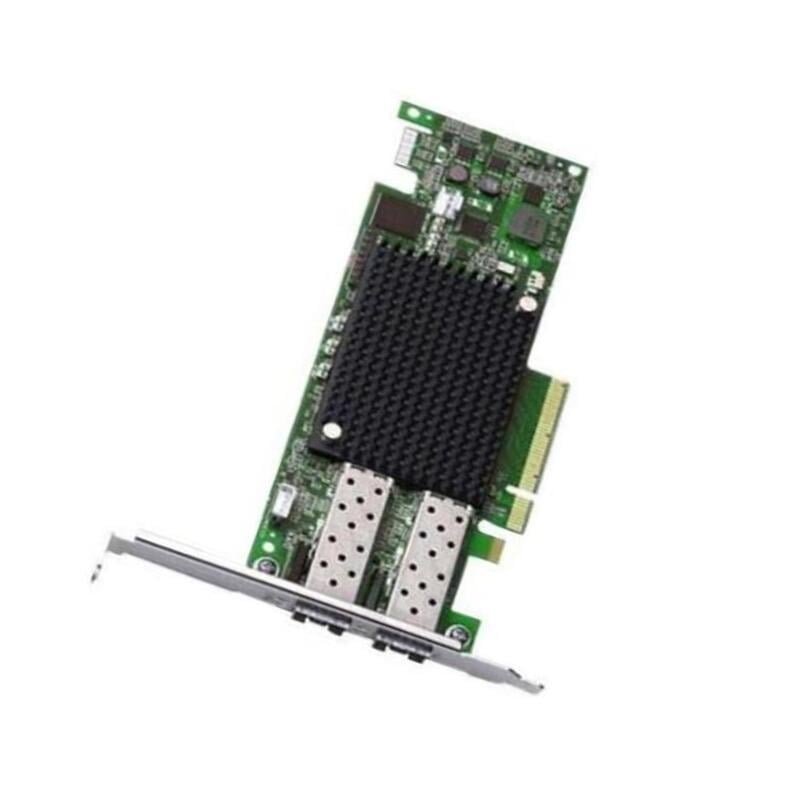

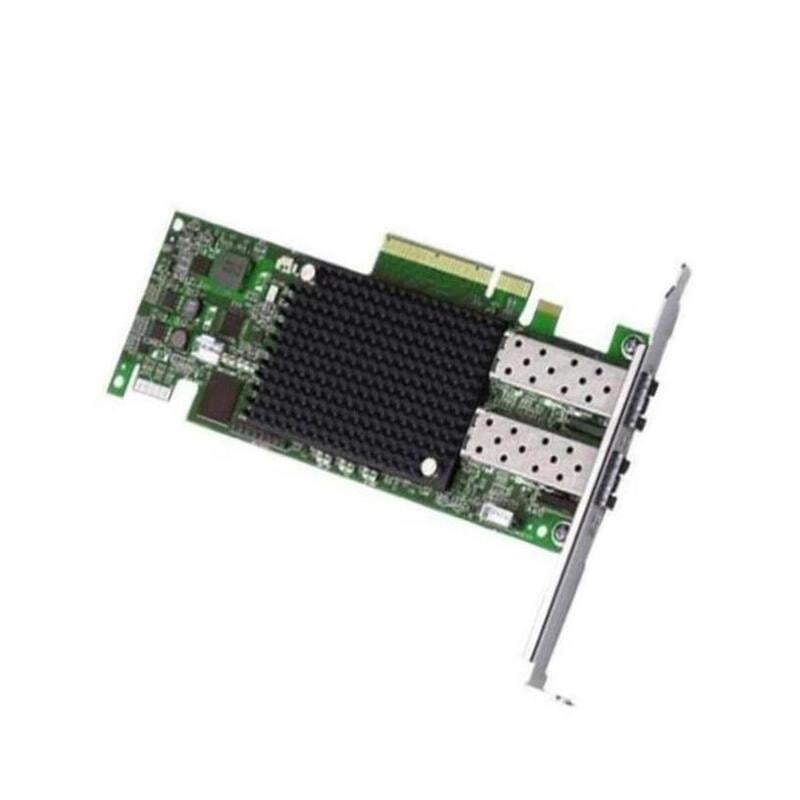

Key Features and Benefits of the 81Y1662 Dual Ports Fibre Channel
Key Features:
- Dual Ports Fibre Channel 16Gbps PCI-E Host Bus Adapter for high-speed data transfer
- Supports PCIe 3.0 x8 host interface
- Compatible with most servers, workstations and storage systems
- Provides reliable, high-performance connectivity for demanding applications
- Offers advanced features such as Quality of Service (QoS), Data Integrity, and Traffic Management
Benefits:
- Provides fast and efficient connectivity for critical applications and workloads
- Enables seamless integration with existing systems and infrastructure
- Improves overall system performance and throughput
- Reduces latency and improves response time for applications and workloads
- Helps to reduce the total cost of ownership (TCO) by minimizing downtime and maintenance costs.
Performance and Throughput Testing of the HBA
Performance and throughput testing is a critical component of evaluating the efficiency and effectiveness of the Lenovo 81Y1662 Dual Ports Fibre Channel 16GBPS PCI-E Host Bus Adapter. The testing involves measuring the capacity of the adapter to handle data transmission and processing with minimal delays and interruptions.
The testing process involves several key metrics, including the maximum transfer rate, input/output operations per second (IOPS), latency, and overall bandwidth. The maximum transfer rate refers to the highest amount of data that can be transmitted within a given timeframe, while IOPS measure the number of data operations per second.
Latency is a measure of the time it takes for data to be processed and transmitted, with lower latency indicating faster processing times. Overall bandwidth refers to the total amount of data that can be transmitted within a given timeframe, taking into account factors such as network congestion and data transfer speed.
To perform performance and throughput testing on the Lenovo 81Y1662 Dual Ports Fibre Channel 16GBPS PCI-E Host Bus Adapter, several benchmarking tools are available. These tools simulate real-world network scenarios and provide detailed reports on the performance of the adapter.
Some of the key performance testing tools used in the evaluation of the Lenovo 81Y1662 Dual Ports Fibre Channel 16GBPS PCI-E Host Bus Adapter include Iometer, CrystalDiskMark, and Diskspd. These tools measure the adapter’s performance across different workloads, including sequential and random read/write operations, as well as 4KB and 8KB data transfers.
Configuration and Management of the HBA
The Lenovo 81Y1662 Dual Ports Fibre Channel 16GBPS PCI-E Host Bus Adapter can be configured and managed using the following steps:
- Install the appropriate drivers and software for the adapter on the host system.
- Connect the adapter to the Fibre Channel storage network using compatible cables and switches.
- Use the management software provided by Lenovo, such as the Lenovo XClarity Administrator, to configure the adapter settings, update firmware, and monitor performance.
- Follow best practices for managing the Fibre Channel network, including configuring zones, setting up storage LUNs, and configuring paths and failover settings.
It is recommended to consult the documentation and support resources provided by Lenovo for detailed guidance on the configuration and management of this host bus adapter.
General Information about this Lenovo 81Y1662
- Manufacturer: Lenovo
- Part Number or SKU# 81Y1662
- Type: Controller
- Sub Type: Fibre Channel
Technical Information of Dual Ports Adapter
- Total Number of Fibre Channel Ports 2
- Number of LC Ports 2
- Data Transfer Rate 16 Gbit/s
- Media Type Supported Optical Fiber
- Fiber Mode Supported Multi-mode
- Interface PCI-E Host Bus Adapter
- Fibre Channel Class Supported Class 2 Class 3
I/O Expansions for 16GBPS Adapter
- Expansion Slot Type SFP+
Dimensions & Weight
- Form Factor Plug-in Card
- Card Height Low-profile
- Height 2.7 Inch
- Width 6.6 Inch
- Thickness 1 Inch
Compatibility
- IBM System x iDataPlex dx360 M3
- IBM System x3100 M4
- IBM System x3200 M3
- IBM System x3250 M3
- IBM System x3250 M4
- IBM System x3400 M3
- IBM System x3500 M3
- IBM System x3550 M3
- IBM System x3630 M4
- IBM System x3650 M3
- IBM System x3690 X5
- IBM System x3755 M3
- IBM System x3850 X5
- Environmentally Friendly Yes
- Environmental Certification RoHS
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
