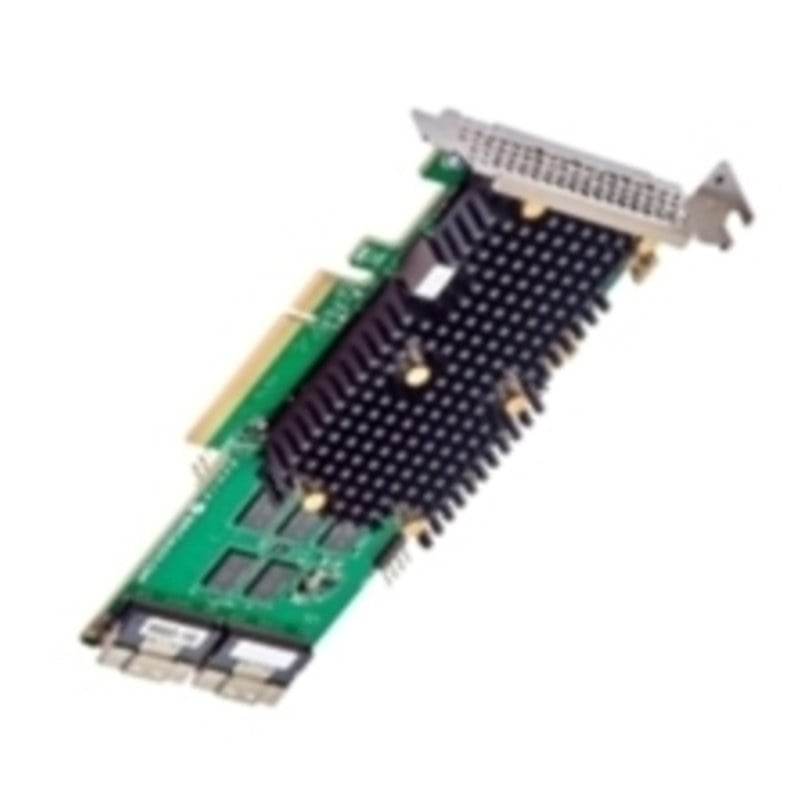

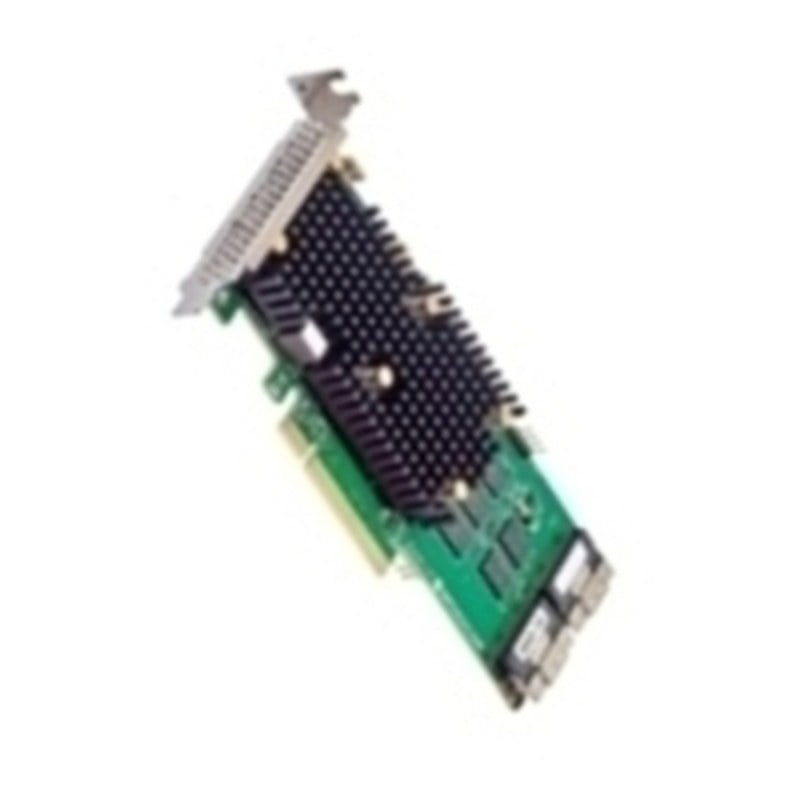

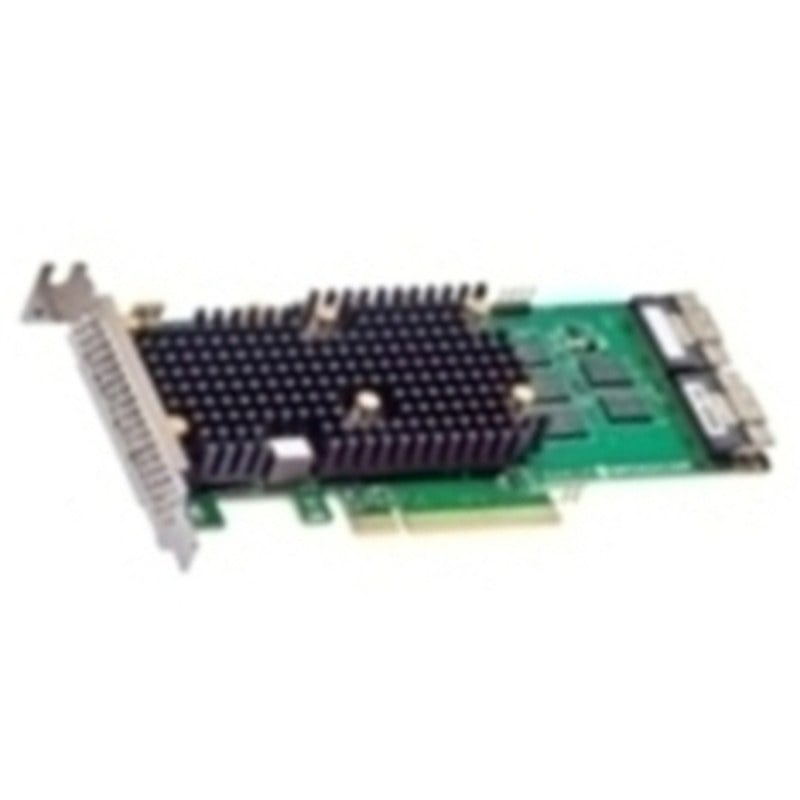

Product Overview of the LSI Logic 05-50108-00
The LSI Logic 05-50108-00 MegaRAID PCIe Internal Ports SAS/SATA RAID Controller is a powerful hardware solution that promises to elevate data storage and management capabilities in server environments. Equipped with internal ports for SAS (Serial Attached SCSI) and SATA (Serial Advanced Technology Attachment) drives, this RAID controller card provides essential features for data redundancy, protection, and performance optimization. In this comprehensive guide, we will explore the various facets of the LSI Logic 05-50108-00 RAID controller, including its features, benefits, installation, compatibility, and performance optimization. Whether you are an IT professional tasked with setting up a new server or someone keen to learn about RAID controllers, this guide offers valuable insights and practical instructions.
Understanding RAID Controllers
RAID (Redundant Array of Independent Disks) controllers are fundamental components in modern server configurations. These controllers are responsible for managing multiple storage drives, offering data redundancy, improved performance, and protection against data loss. The LSI Logic 05-50108-00 MegaRAID controller is designed to enhance data storage and management capabilities.
Key Features of LSI Logic 05-50108-00 RAID Controller
The LSI Logic 05-50108-00 MegaRAID RAID Controller offers several key features that make it a valuable addition to server systems:
- Internal Ports: With internal SAS and SATA ports, this controller is designed for connecting and managing drives within the server itself.
- Data Transfer Speed: The controller supports high-speed data transfer, allowing for efficient data access and movement.
- RAID Support: The LSI Logic 05-50108-00 RAID Controller offers various RAID levels, such as RAID 0, 1, 5, 6, 10, and more. These RAID configurations provide data protection, redundancy, and storage optimization.
- Data Encryption: Data security is paramount, and this controller supports data encryption, safeguarding sensitive information from unauthorized access.
- Scalability: The controller is built to accommodate multiple drives, making it easy to scale your storage capacity as your needs grow.
- Compatibility: The LSI Logic 05-50108-00 is compatible with a wide range of server systems, ensuring smooth integration into existing infrastructure.
Benefits of Using LSI Logic 05-50108-00 RAID Controller
Utilizing the LSI Logic 05-50108-00 MegaRAID RAID Controller offers numerous advantages for businesses and organizations:
- Data Redundancy: The support for various RAID levels ensures data redundancy and protection against data loss due to drive failures.
- Enhanced Data Transfer Speed: High-speed data transfer ensures quick and efficient data access, making it ideal for data-intensive applications.
- Storage Optimization: The ability to configure different RAID levels allows efficient utilization of storage capacity, reducing wasted space and cost.
- Scalability: As your storage needs expand, you can easily scale your storage capacity by adding more drives or reconfiguring RAID arrays.
- Compatibility: The LSI Logic 05-50108-00 is compatible with a wide range of server systems, offering versatility and ease of integration into existing infrastructure.
Compatibility and System Requirements
Before purchasing and installing the LSI Logic 05-50108-00 RAID Controller, it’s crucial to ensure compatibility with your server system. Here are the key considerations:
- Server Compatibility: Verify that your server supports the installation of a PCIe RAID controller card.
- Operating System Compatibility: Confirm the compatibility of your chosen operating system with the RAID controller, as drivers and management software may be necessary.
- Driver Support: Ensure that you have access to the required drivers and firmware updates for your server and operating system.
- SAS/SATA Drive Compatibility: Make sure your SAS or SATA drives are compatible with the controller card.
Data Backup and Recovery
Data backup and recovery are vital aspects of data management and security. The LSI Logic 05-50108-00 RAID Controller offers various methods for these critical tasks:
- RAID Redundancy: Depending on the RAID level you select, the controller provides redundancy. For example, RAID 1 mirrors data on two drives, ensuring data accessibility even if one drive fails.
- Hot Swapping: This feature allows you to replace a failed drive without shutting down the server. The controller card automatically rebuilds data onto the new drive.
- Scheduled Backups: Implement a backup strategy to periodically copy data from your RAID arrays to an external storage device or another location. Scheduled backups safeguard data against potential data loss due to drive failures or other catastrophic events.
- Data Recovery Services: In the unfortunate event of data loss due to drive failure or other issues, consider utilizing data recovery services that specialize in RAID recovery. These experts can assist in recovering lost data and minimizing downtime and data loss.
Performance Optimization
To ensure optimal performance of your LSI Logic 05-50108-00 RAID Controller, consider implementing the following strategies:
- Regular Maintenance: Periodically assess the status of your RAID arrays and conduct routine maintenance tasks, such as cleaning server components and ensuring proper airflow for cooling.
- Monitoring Software: Utilize the monitoring software provided by the manufacturer to keep track of the health and performance of your RAID controller and arrays.
- Array Expansion: As your storage needs grow, consider expanding your RAID arrays by adding more drives or migrating to a different RAID level.
- Drive Upgrades: As drive technology advances, consider upgrading to newer and faster drives to enhance system performance.
General Information about this Lsi-Logic 05-50108-00
- Brand: Lsi-Logic
- Part Number or SKU# 05-50108-00
- Type: SAS-SATA
Technical Information
- Product Name: LSI 9660-16i MegaRAID PCIe 4.0 x8 SAS/SATA RAID Controller with 16 Internal Ports
- Generation: 24G
- Cache Memory: 8GB
- Cache Protection: CacheVault CVP05
- Connectors: 2 x 8 SFF-8654
Devices Supported
- Internal Ports: 16
- MTBF (Mean Time Between Failures): 3,000,000 hours at 40°C
- Physical Dimensions: 6.1279 x 4.3759 inches (155.65mm x 111.15mm)
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
In summary, the LSI Logic 05-50108-00 MegaRAID PCIe Internal Ports SAS/SATA RAID Controller is a robust and high-performance solution for enhancing data storage, protection, and system performance in server environments. With its support for SAS and SATA drives and various RAID configurations, it offers versatility and performance. To fully unlock the potential of this hardware component, ensure compatibility with your server system and adhere to best practices for installation, configuration, and maintenance. Whether you’re setting up a new server or optimizing an existing one, this RAID controller is a crucial element in achieving your storage and data management goals.
