Description
Product Specification
The MCX555A-ECAT Mellanox Connectx-5 VPI Adapter Card is a high-performance network interface card designed to deliver exceptional throughput and low latency for mission-critical applications. This adapter card is equipped with advanced features that enable it to support Ethernet and InfiniBand (IB) protocols at speeds of up to 100Gb/s. In this article, we will provide a detailed explanation of the features and capabilities of this adapter card.
MCX555A-ECAT Mellanox Adapter Card Overview

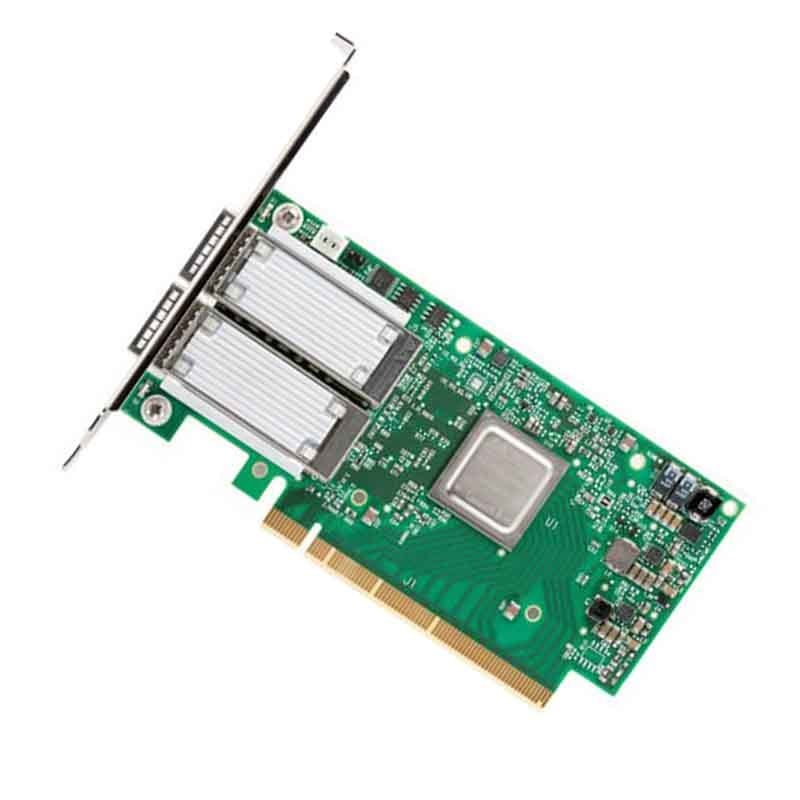

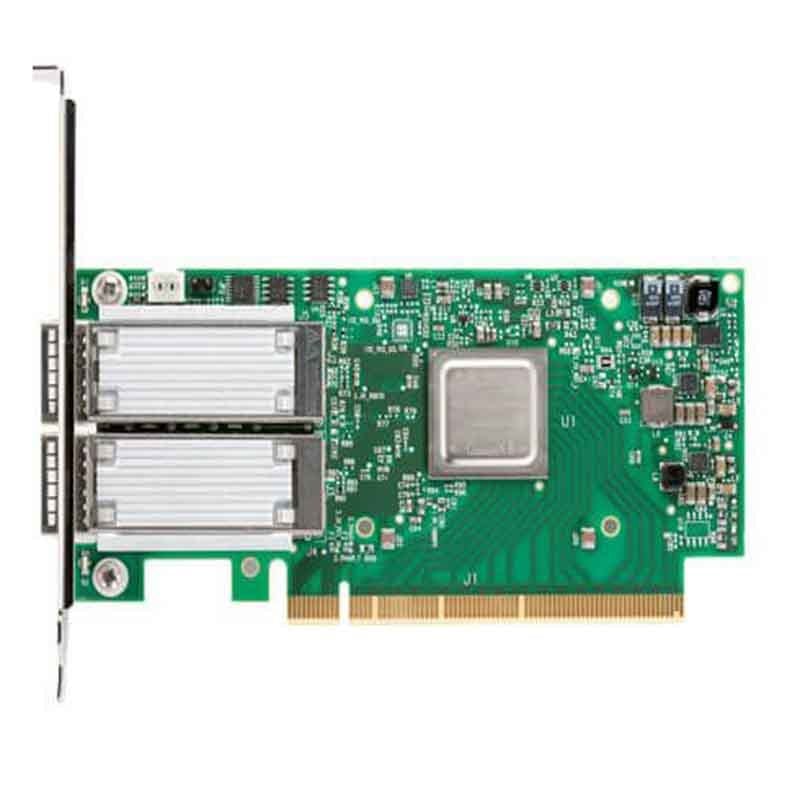

The MCX555A-ECAT Mellanox Connectx-5 VPI Adapter Card is a single-port adapter card that supports both EDR IB and 100GbE protocols through a QSFP28 port. The card is designed for use in PCIe Gen 3.0 x16 slots and is capable of delivering low-latency, high-bandwidth connectivity for a range of applications.
Key Features
The MCX555A-ECAT Mellanox Connectx-5 VPI Adapter Card offers a range of advanced features that enable it to deliver high levels of performance and reliability. Some of the key features of this adapter card include:
- High Throughput: The card supports data transfer speeds of up to 100Gb/s, making it ideal for high-performance computing and data center applications.
- Low Latency: The adapter card delivers industry-leading latency, which is critical for applications that require fast response times.
- QSFP28 Port: The card features a single QSFP28 port that supports both EDR IB and 100GbE protocols, making it highly versatile and adaptable to a wide range of applications.
- PCI-E 3.0 x16 Interface: The card is designed to be used in PCIe Gen 3.0 x16 slots, which provides high bandwidth connectivity for applications that require it.
- Advanced Offload Engines: The card is equipped with advanced offload engines that offload processing tasks from the host CPU, enabling it to deliver high levels of performance while reducing CPU overhead.
- RoHS Compliant: The adapter card is compliant with the Restriction of Hazardous Substances (RoHS) directive, which ensures that it is free from harmful substances such as lead and mercury.
- Mellanox ConnectX-5 Technology: The card is built using Mellanox ConnectX-5 technology, which is designed to deliver high levels of performance and reliability in data center environments.
Applications
The MCX555A-ECAT Mellanox Connectx-5 VPI Adapter Card is ideal for a wide range of applications that require high-speed, low-latency connectivity. Some of the key applications for this adapter card include:
- High-Performance Computing: The card is well-suited for high-performance computing applications, such as scientific simulations, machine learning, and artificial intelligence.
- Data Center Networking: The adapter card is ideal for data center networking applications that require high-speed, low-latency connectivity, such as cloud computing and virtualization.
- Storage Networking: The card can be used in storage networking applications, such as network-attached storage (NAS) and storage area networks (SANs), to deliver high levels of performance and reliability.
- Financial Trading: The adapter card is well-suited for financial trading applications that require low-latency connectivity, such as high-frequency trading and algorithmic trading.
Main Information about the Mellanox MCX555A-ECAT
- Manufacturer: Mellanox
- Part Number or SKU # MCX555A-ECAT
- Device Type: Network Adapter
Technical Information
- Form Factor: Plug-In Card
- Interface (Bus) Type: Pci Express 3.0 X16
- Pci Specification Revision: Pcie 1.1, Pcie 2.0, Pcie 3.0
- Ports: 100GB Ethernet / 100GB Infiniband QSFP28 X 1
- Data Link Protocol: Gige, 10 Gige, 40 Gigabit Lan, 100 Gigabit Ethernet, 25 Gigabit Lan, 50 Gigabit Lan, 100 Gigabit Infiniband
- Data Transfer Rates: 100 GBps
- Network / Transport Protocol: Tcp/Ip, Udp/Ip, Iscsi
Compliant Standards
- Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (Lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.3az, Ieee 802.3ba, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ibta 1.3, Ieee 802.1qbg, Ieee 1588v2, Ieee 802.3bj, Ieee 802.3bm, Ieee 802.3by
