Description
Introduction to MTMK0011 HPE Cable Kit
The MTMK0011 HPE Infiniband HDR Pcie3 Auxiliary Card is a high-performance computing (HPC) component designed for use in data centers and other large-scale computing environments. This card is specifically designed to provide high-speed connectivity for Infiniband HDR networks, which are used to link together clusters of servers for parallel processing.
The kit includes a PCIe3 auxiliary card and a 150mm cable that connects the card to the Infiniband HDR network. This kit is designed to be easy to install and configure, and it provides a reliable and high-speed connection for HPC applications.
Infiniband HDR
Infiniband HDR is a high-speed interconnect technology that is commonly used in HPC environments. Infiniband networks are designed to provide low-latency, high-bandwidth connectivity between clusters of servers, allowing them to work together to perform large-scale parallel processing tasks.
Infiniband HDR is the latest iteration of the Infiniband standard, and it provides data transfer rates of up to 200Gbps per port. This makes it an ideal choice for HPC applications that require high-speed data transfer between servers.
PCIe3 Auxiliary Card
A PCIe3 auxiliary card is a component that is designed to be installed in a server’s PCIe3 expansion slot. These cards are used to provide additional functionality to a server, such as high-speed networking or additional storage capacity.
The MTMK0011 HPE Infiniband HDR Pcie3 Auxiliary Card is specifically designed to provide high-speed Infiniband connectivity to servers. It features two Infiniband HDR ports and a PCIe3 x16 interface, which allows it to provide high-speed connectivity to Infiniband HDR networks while also supporting high-speed data transfer to and from the server’s CPU.

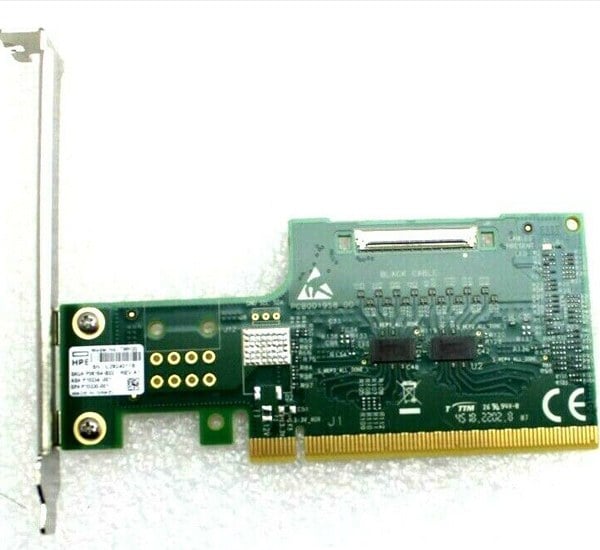

MTMK0011 HPE Infiniband HDR Pcie3 Auxiliary Card With 150MM Cable Kit
The MTMK0011 HPE Infiniband HDR Pcie3 Auxiliary Card With 150MM Cable Kit includes the following components:
- MTMK0011 HPE Infiniband HDR Pcie3 Auxiliary Card: This card features two Infiniband HDR ports and a PCIe3 x16 interface. It is designed to be installed in a server’s PCIe3 expansion slot and provides high-speed connectivity to Infiniband HDR networks.
- 150mm cable: This cable connects the MTMK0011 card to the Infiniband HDR network. It is designed to be easy to install and provides a reliable and high-speed connection.
The MTMK0011 HPE Infiniband HDR Pcie3 Auxiliary Card With 150MM Cable Kit is designed to be easy to install and configure. Here are the steps to follow:
- Power down the server: Before installing the card, you should power down the server and disconnect all cables.
- Install the MTMK0011 card: Insert the MTMK0011 card into the server’s PCIe3 expansion slot. Make sure that the card is securely seated in the slot.
- Connect the 150mm cable: Connect one end of the 150mm cable to the MTMK0011 card and the other end to the Infiniband HDR network.
- Power on the server: Once the card and cable are installed, you can power on the server and begin the configuration process.
- Configure the MTMK0011 card: The MTMK0011 card will need to be configured to work with your specific Infiniband HDR network.
Specifications
- Manufacturer: HPE
- MPN: MTMK0011
- Type: Networking
- Adapter Type: Network Adapter 10 Gigabit
- SKU: MTMK0011
Performance
- Data Rate Na
- Number Of Ports Na
- Bus Type Pcie 3.0 X16
- Connector Type Qsfp56
- Form Factor Standup Lp
- Supported Cables Dac And Aoc
- Product Dimensions (Imperial) 8.6 X 7 X 2.44 Inch
- Platform Supported HPE Proliant Rack/Tower/Bladesystem Servers/Synergy
