Description
Operating System Support
Operating System Support refers to the ability of a server to run and support various operating systems. The HP ProLiant DL580 G5 server supports a wide range of operating systems including:
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware ESX and ESXi
- Oracle Solaris
- Citrix XenServer
- FreeBSD
- OpenBSD
- NetBSD
The support for various operating systems is important because it allows users to choose the operating system that best fits their needs and preferences. For example, some users may prefer Windows Server for their enterprise applications, while others may prefer Linux-based operating systems for their web servers.
Operating system support also allows for greater flexibility and interoperability. With support for multiple operating systems, users can create virtual environments and run different applications on the same server, regardless of the operating system they require. This can help to streamline management and reduce hardware costs.
Additionally, by supporting a variety of operating systems, the HP ProLiant DL580 G5 server provides users with options for compatibility with their existing infrastructure, applications, and tools. This makes it easier to integrate the server into an existing IT environment and leverage existing investments in software and tools.
Networking Capabilities
Networking capabilities refer to the features and technologies that enable the HP ProLiant DL580 G5 server to connect to a network and communicate with other devices. The server has several networking capabilities, including:
- Ethernet Connectivity: The server has multiple built-in Gigabit Ethernet ports that support high-speed network connectivity. These ports can be used to connect the server to a local area network (LAN) or a wide area network (WAN) for internet access.
- Network Interface Cards (NICs): The server supports multiple NICs, which can be added or removed to provide additional network connectivity options. The NICs can be configured for various network speeds and protocols, such as Ethernet, Fibre Channel, and InfiniBand.
- Network Teaming: The server also supports network teaming, which allows multiple NICs to be combined into a single logical network interface. This provides greater bandwidth and redundancy, improving network performance and availability.
- Virtual LAN (VLAN) Support: The server supports VLANs, which allow network administrators to logically segment a LAN into multiple virtual LANs, each with its own security policies and network settings.
- Remote Management: The server includes remote management capabilities, such as Integrated Lights-Out (iLO) technology, which allows administrators to remotely manage and monitor the server from anywhere in the world.
- Network Security: The server includes a range of security features and technologies, such as Secure Boot and Trusted Platform Module (TPM), which help to protect the server and its data from unauthorized access and attacks.
Security Features and Technologies
The HP ProLiant DL580 G5 server includes a range of security features and technologies designed to protect the server and its data from various security threats. Some of the key security features and technologies include:
- Secure Boot: Secure Boot ensures that only trusted software is allowed to run on the server. It verifies the digital signatures of firmware, drivers, and other software components during the boot process, preventing the execution of any unauthorized or malicious code.
- Trusted Platform Module (TPM): The server includes a TPM, which is a hardware-based security module that provides secure storage and processing of cryptographic keys, certificates, and other sensitive data. The TPM can also be used for secure booting and remote attestation.
- RAID Data Protection: The server supports RAID (Redundant Array of Independent Disks) technology, which provides data redundancy and protection against data loss due to disk failure. This technology ensures that data is protected even if one or more disk drives fail.
- Access Control: The server includes various access control features, such as password protection and user authentication, which help to prevent unauthorized access to the server and its data.
- Network Security: The server includes network security features, such as firewalls and intrusion detection/prevention systems, which help to protect the server and its data from network-based attacks.
- Firmware Protection: The server firmware is protected by digitally signed firmware updates, which ensure that only authorized updates are installed on the server.
- Encryption: The server includes hardware-based encryption capabilities, which can be used to encrypt data at rest or in transit, providing an additional layer of protection against unauthorized access.

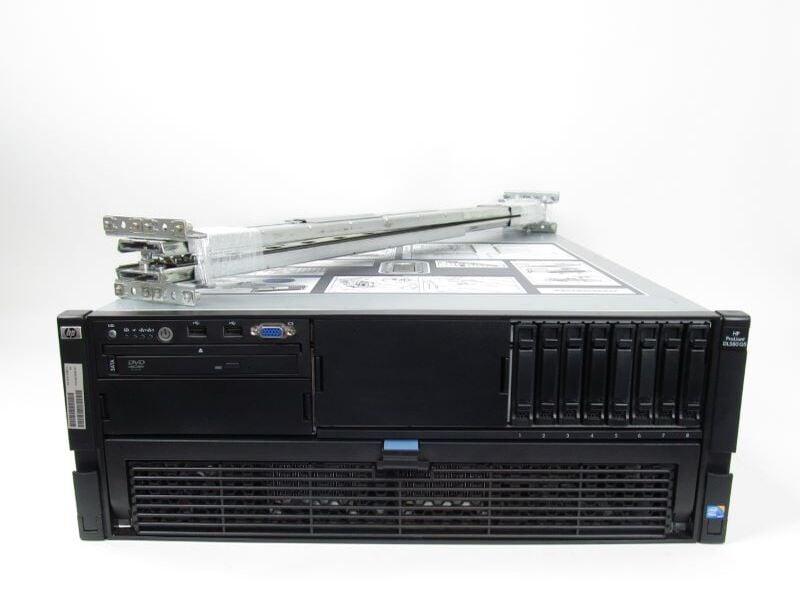

Key Information for this HP 487363-001
- Manufacturer: HP
- Model Number or SKU # 487363-001
- Product Type: Server
- Product Name: Proliant Dl580 G5 – 4-way 4u Rack Server ( Performance Model)
Processor & Chipset Information of Server
- Processor Type : Intel Xeon E7450 / 2.4 Ghz
- Number Of Cores : 6 Core
- Cpu Qty : 4
- Max Cpu Qty : 4
- 64-bit Computing : Yes
- Chipset Type : Intel 7300
- Data Bus Speed : 1066 Mhz
Cache Memory :
- Cache Memory Type : L3 Cache
- Installed Size : 48 Mb
- Cache Per Processor : 12 Mb
Memory :
- Installed Size : 8 Gb / 128 Gb (max)
- Technology : Ddr2 Sdram – Advanced Ecc
- Effective Memory Speed : 667 Mhz
- Rated Memory Speed : 667 Mhz
- Memory Specification Compliance : Pc2-5300
- Form Factor : Fb-dimm 240-pin
- Slots : 16 (total)
- Features : Memory Mirroring, Fully Buffered, Online Spare Memory
Storage & Optical Storage :
- Hard Drive : None
Optical Storage :
- Type : Dvd-rom Dvd – Ide
- Read Speed : 24x (cd) / 8x (dvd)
Storage Controller :
- Type : 1 X Raid – Integrated
- Controller Interface Type : Sata 1.5gb/s / Sas
- Storage Controller Name : Smart Array P400i
- Raid Level : Raid 0, Raid 5, Raid 10
- Buffer Size : 512 Mb
- Storage Controller (2nd) :
- Type : 1 X Ide – Integrated
Display & Graphics Controller :
- Type : Integrated
- Graphics Processor : Ati Es1000
- Video Memory : 32 Mb
- Video Interfaces : Vga
Networking :
- Type : Plug-in Card
- Ethernet Ports : 2 X Gigabit Ethernet
- Ethernet Controller : 2 X Hp Nc373i
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Features : Wake On Lan (wol)
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion & Connectivity :
- Expansion Bays Total ( Free) :
- 8 (total) / 8 (free) X Hot-swap 2.5 Sff
- 1 (total) / 0 (free) X External 5.25 Slim Line
- 1 (total) / 1 (free) X External 5.25 X 1/2h
- Expansion Slots Total ( Free) :
- 4 (total) / 0 (free) X Cpu
- 16 Fb-dimm 240-pin
- 4 (total) / 4 (free) X Pcie X8 – Full-length
- 1 (total) / 1 (free) X Pcie X4 – Full-length
- 3 (total) / 3 (free) X Pcie X4 – Half-length
Interfaces :
- 2 X Usb (2 Front, 2 Rear, 2 Internal)
- 1 X Serial
- 1 X Ps/2 Mouse
- 1 X Ps/2 Keyboard
- 1 X Vga
- 1 X Management
- 2 X Lan (gigabit Ethernet)
Miscellaneous :
- Features :
- Administrator Password
- Power-on Password
- Keyboard Password
- Disk Configuration Lock
- Diskette I/o Control
- Serial Port I/o Control
Compliant Standards :
- Acpi 2.0, Acpi 1.0a
- Power Device :
- Power Device Type : Power Supply – Hot-plug
- Power Redundancy : Yes
- Installed Qty : 4
- Max Supported Qty : 4
- Voltage Required : Ac 120/230 V ( 50/60 Hz )
- Power Provided : 1200 Watt
