Product overview for the HPE 670635-S01

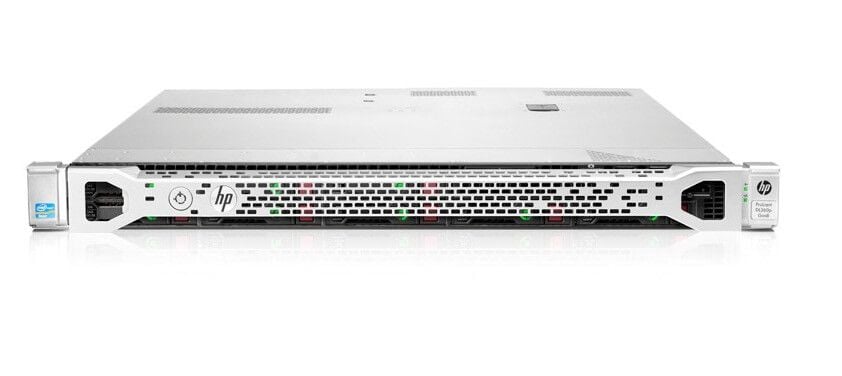

The HPE ProLiant DL360p Gen8 (Smart Buy Model) is a powerful and versatile 1U rack server designed to meet the demanding requirements of modern data centers. With its robust hardware configuration and advanced features, this server is well-suited for various computing tasks, ranging from virtualization to database management. In this detailed explanation, we will delve into the key specifications and components of the HPE ProLiant DL360p Gen8, including its processor, memory, networking capabilities, storage, and power supply.
Processor Performance: 2p Xeon 8-Core E5-2660/2.2 GHz
At the heart of the HPE ProLiant DL360p Gen8 is its processing power, driven by two Intel Xeon E5-2660 CPUs, each featuring 8 cores operating at a base frequency of 2.2 GHz. This configuration delivers a total of 16 cores, making the server capable of handling multi-threaded workloads efficiently. The Xeon E5-2660 processors are known for their high performance and reliability, making them suitable for a wide range of applications, from computational tasks to enterprise-level workloads.
Memory 32GB (4x8GB) DDR3 SDRAM
To complement its processing capabilities, the server is equipped with a substantial amount of memory. The HPE ProLiant DL360p Gen8 comes with 32GB of DDR3 SDRAM, organized in a 4x8GB configuration. This memory setup ensures smooth multitasking and efficient handling of large datasets. DDR3 SDRAM provides a good balance of performance and energy efficiency, contributing to the overall responsiveness of the server.
Networking Capabilities: FlexLOM 1Gb 4P 331FLR Ethernet Adapter
Networking is a critical aspect of any server, especially in data center environments where connectivity and bandwidth are paramount. The DL360p Gen8 features a FlexibleLOM (FlexLOM) 1Gb 4P 331FLR Ethernet Adapter, providing four Gigabit Ethernet ports. This flexibility allows for easy customization of network connectivity based on specific requirements. The inclusion of multiple Ethernet ports enhances network redundancy and throughput, making the server suitable for demanding networking tasks.
Storage Solution: Smart Array P420i/1GB with FBWC
Efficient storage management is crucial for servers handling extensive data workloads. The HPE ProLiant DL360p Gen8 is equipped with the Smart Array P420i RAID controller featuring 1GB Flash Backed Write Cache (FBWC). This controller facilitates data protection, improved performance, and flexibility in storage configurations. The 1GB FBWC acts as a high-speed buffer, allowing for enhanced write performance and data integrity, even in the event of a power loss.
Form Factor and Physical Design: 2-Way 1U Rack Server
The HPE ProLiant DL360p Gen8 follows a 1U rack-mounted form factor, making it suitable for environments where space optimization is a priority. The 1U design allows for efficient stacking of multiple servers in a standard rack, maximizing the utilization of data center space. The server’s physical design is optimized for easy installation and maintenance, providing accessibility to components without the need for extensive downtime.
Power Supply: 2x 460W PS
Reliable power supply is a critical consideration for any server infrastructure. The DL360p Gen8 is equipped with dual 460W power supplies, ensuring redundancy and reliability. This redundant power supply configuration minimizes the risk of downtime due to power-related issues. Additionally, the server’s power supplies are hot-swappable, allowing for replacement without interrupting ongoing operations.
General Information about the HPE 670635-S01
- Manufacturer: HPE
- Model Number or SKU# 670635-S01
- Product Type: Server
- Server Type: ProLiant DL360P
Processor and Chipset for the Xeon 2.20GHz Server
- Processor Type: Intel Xeon E5-2660 / 2.2 GHz
- Max Turbo Speed: 3 GHz
- Number Of Cores: 8 Cores
- Installed Qty: 2
- Max Supported Qty: 2
- 64-bit Computing: Yes
- Upgradability: Upgradable
- Chipset Type: Intel C600
- Processor Main Features: Hyper-threading Technology, Intel QuickPath Interconnect, Intel Turbo Boost Technology
Cache Memory
- Cache Memory Type: L3 Cache
- Installed Size: 40 MB
- Cache Per Processor: 20 MB
Memory
- Installed Size: 32 GB / 384 GB (max)
- Technology: DDR3 SDRAM
- Effective Memory Speed: 1333 MHz
- Rated Memory Speed: 1333 MHz
- Memory Specification Compliance: PC3-10600
- Form Factor: DIMM 240-pin
- Slots: 24 (total) / 20 (empty)
- Features: Registered, Quad Channel Memory Architecture, HP SmartMemory
- Configuration Features: 4 x 8 GB
- RAM Supported: PC3-14900 – 384 GB Registered PC3-14900 – 768 GB Load-reduced PC3-14900 – 128 GB Unbuffered – Advanced ECC PC3-10600 – 384 GB HyperCloud
Storage & Optical Storage
- Hard Drive: None
- Optical Drive Type: None
Storage Controller
- Type: 1 x RAID – Integrated – PCIe 3.0 x8
- Controller Interface Type: SATA 6Gb/s / SAS 6Gb/s
- Storage Controller Name: Smart Array P420i with 1GB FBWC
- RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
- Buffer Size: 1 GB
Display & Graphics Controllers
- Graphics Controller Type: Integrated
- Graphics Processor: Matrox G200
- Video Interfaces: VGA
Network & Communication
- Type: Plug-in Card
- Interface (bus) Type: PCIe Express x4
- Ethernet Ports: 4 x Gigabit Ethernet
- Ethernet Controller: HP 331FLR
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol: IPMI 2.0, SMASH CLP
- Remote Management Controller: Integrated Lights-Out 4
- Features: Wake On LAN (WOL), PXE Support
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)
Expansions & Connectivity
- Expansion Bays Total (free):
- 1 (total) / 1 (free) x External 5.25inch
- 8 (total) / 8 (free) x Hot-swap 2.5inch SFF
- Expansion Slots Total (free):
- 24 (total) / 20 (free) x DIMM 240-pin
- 2 (total) / 0 (free) x CPU
- 1 (total) / 1 (free) x PCIe 3.0 x16 – Half-length, Full-height
- 1 (total) / 1 (free) x PCIe 3.0 x8 – Low-profile
- 1 (total) / 1 (free) x SD Card (internal)
Interfaces & Ports
- 1 x Serial
- 1 x VGA
- 4 x LAN (Gigabit Ethernet)
- 1 x HP iLO
- 6 x USB 2.0 (2 front, 4 rear)
Miscellaneous
- Features:
- Administrator Password
- Power-on Password
- Keyboard Password
- Serial Port I/O Control
- Redundant Fans
- Compliant Standards:
- ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438
- Manufacturer Selling Program: HP Smart Buy
Power Device
- Device Type: Power Supply – Hot-plug
- Power Redundancy: Yes
- Power Redundancy Scheme: 1+1
- Installed Qty: 2
- Max Supported Qty: 2
- Nominal Voltage: AC 120/230 V (50/60 Hz)
- Power Provided: 460 Watt
- 80 Plus Certification: 80 Plus Gold
- Efficiency: 94%
In summary, the HPE ProLiant DL360p Gen8 (Smart Buy Model) stands out as a robust and feature-rich 1U rack server designed to meet the demanding requirements of modern data centers. Its dual Intel Xeon E5-2660 processors, ample DDR3 SDRAM, flexible networking options, advanced storage capabilities, and redundant power supplies make it a versatile solution for a wide range of computing tasks. Whether deployed for virtualization, database management, or other enterprise-level workloads, the DL360p Gen8 offers a compelling combination of performance, reliability, and scalability.
