Description

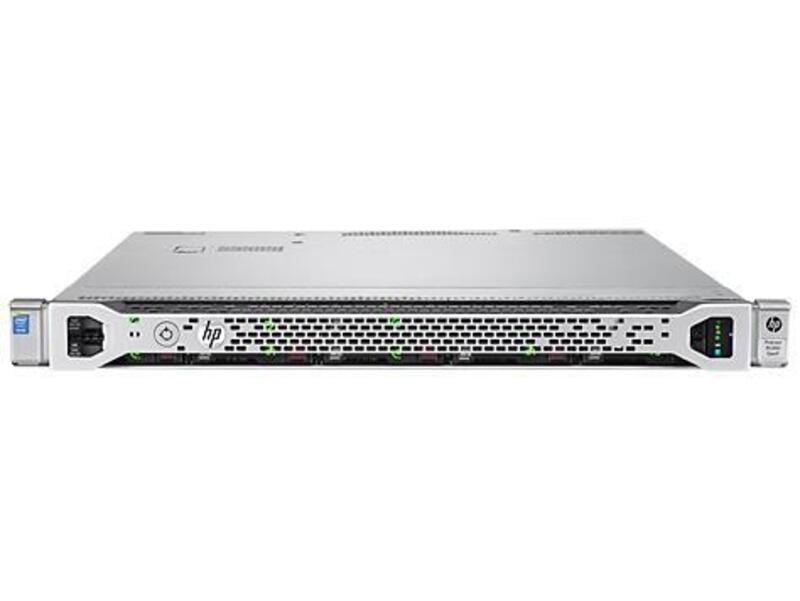

HPE ProLiant DL360 Gen9 Server Overview
The HPE ProLiant DL360 Gen9 E5-2643 v3 server is a high-performance computing device designed for enterprise-level applications. This server is equipped with powerful hardware components that make it suitable for running complex applications, hosting large databases, and managing virtualization environments. In this article, we will take a closer look at the hardware specifications of the HPE ProLiant DL360 Gen9 E5-2643 v3 server.
Hardware Specifications
The HPE ProLiant DL360 Gen9 E5-2643 v3 server is powered by an Intel Xeon E5-2643 v3 processor, which is a quad-core processor with a base clock speed of 3.4 GHz. This processor supports hyper-threading, which means that it can handle up to eight threads simultaneously. The Intel Xeon E5-2643 v3 processor is built on the Haswell microarchitecture and has a TDP of 135 watts.
Memory and Storage
The HPE ProLiant DL360 Gen9 E5-2643 v3 server comes with 32GB DDR4 DIMMs, which is a type of memory that offers faster data transfer rates compared to DDR3 memory. This server supports a maximum of 768GB of DDR4 memory, which makes it suitable for running memory-intensive applications such as virtualization environments.
The HPE ProLiant DL360 Gen9 E5-2643 v3 server has eight small form factor (SFF) HDD bays, which can accommodate up to eight SAS, SATA, or solid-state drives (SSDs). This server supports hot-plug hard drives, which means that you can replace a hard drive without having to power down the server. The HPE ProLiant DL360 Gen9 E5-2643 v3 server also supports HPE Smart Array Controllers, which provide hardware-level RAID protection for your data.
Power Supply and Management
The HPE ProLiant DL360 Gen9 E5-2643 v3 server comes with two 500W power supplies, which provide redundant power for your server. This means that if one power supply fails, the other power supply will continue to power your server. Redundant power supplies are important for maintaining uptime in enterprise-level environments where downtime can be costly.
The HPE ProLiant DL360 Gen9 E5-2643 v3 server comes with HPE Integrated Lights-Out (iLO), which is a management tool that allows you to remotely manage your server. With iLO, you can access your server’s console, power cycle your server, and update firmware and drivers from a remote location. iLO also provides advanced features such as remote virtual media, which allows you to mount an ISO image as a virtual DVD drive.
In Summary, the HPE ProLiant DL360 Gen9 E5-2643 v3 server is a high-performance computing device that is designed for enterprise-level applications. This server is equipped with powerful hardware components such as an Intel Xeon E5-2643 v3 processor, 32GB DDR4 memory, and eight SFF HDD bays. Additionally, the HPE ProLiant DL360 Gen9 E5-2643 v3 server comes with redundant power supplies and management tools such as iLO, which make it easy to manage and maintain in enterprise-level environments. If you are looking for a high-performance server that can handle complex applications and virtualization environments, the HPE ProLiant DL360 Gen9 E5-2643 v3 server is definitely worth considering.
Key Information
- Manufacturer: HPE
- Model Number or SKU # 800080-S01
- Product Type: Server
Processor & Chipset Information of Server
- Processor Type : Intel Xeon E5-2643v3/ 3.4ghz
- Max Turbo Speed : 3.7 Ghz
- Quickpath Interconnect: 9.60 Gt/s
- Number Of Cores : 6-core
- 64-bit Computing : Yes
- Compatible Processor Socket : Fclga2011-3
- Cpu Qty : 1
- Max Supported Qty : 2
- Chipset Type : Intel C610 Series
Cache Memory
- Cache Memory Type : Smart Cache
- Installed Size : 20mb
Memory
- Installed Size : 32 Gb / 384 Gb (max)
- Technology : Ddr4 Sdram – Advanced Ecc
- Memory Speed : 2133 Mhz
- Memory Specification Compliance : Pc4-17000
- Form Factor : Dimm 288-pin
- Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
- Configuration Features : 2 X 16 Gb
- Ram Supported : Pc4-17000 – 768 Gb – Load-reduced ¦ Pc4-17000 – 384 Gb – Registered
Storage Controllers
- Storage Controller Name : Smart Array P440ar
- Buffer Size : 2 Gb
- Disk Drive : 12gb/s Sas / 6gb/s Sata
- Sas Port Link Rate : 12gb/s Per Physical Link Supported
- Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)
- Physical Drives : Up To 26 Drives
- Logical Drives Supported : Up To 64 Logical Drives
- Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Display & Graphics Controllers
- Graphics Controller Type : Integrated Matrox G200
Network & Communication
- Type : Integrated
- Ethernet Ports : 4 X Gigabit Ethernet
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller : Integrated Lights-out 4
- Features : Wake On Lan (wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion/ Connectivity
- Expansion Bays Total (free) :
- 1 External 5.25
- 8 (total) / 8 (free) X Hot-swap 2.5 Sff
- Expansion Slots Total (free) :
- 24 (total) / 22 (free) X Dimm 288-pin
- 2 (total) / 1 (free) X Cpu
- 1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
- 1 (total) / 0 (free) X Pcie 3.0 X8 – Low-profile
- 1 (total) / 1 (free) X Flexiblelom
- 1 (total) / 1 (free) X Microsd Card (internal)
Interfaces & Ports
- 1 X Vga
- 1 X Serial
- 4 X Lan (gigabit Ethernet)
- 1 X Hp Ilo
- 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
Miscellaneous
- Features :
- Administrator Password
- Power-on Password
- Keyboard Password
- Serial Port I/o Control
- Quicklock
- Uefi Bios
Compliant Standards
- Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Ashrae, Cns 13438
Manufacturer Selling Program
- Hp Smart Buy
Power Description
- Device Type : Power Supply – Hot-plug
- Power Redundancy : Yes
- Power Redundancy Scheme : 1+1
- Installed Qty : 2
- Max Supported Qty : 2
- Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
- Power Provided : 500 Watt
- 80 Plus Certification : 80 Plus Platinum
Dimensions & Weight
- Depth : 27.5 Inch
- Width : 17.1 Inch
- Height : 1.69 Inch
- Weight : 27 Lbs
