Description

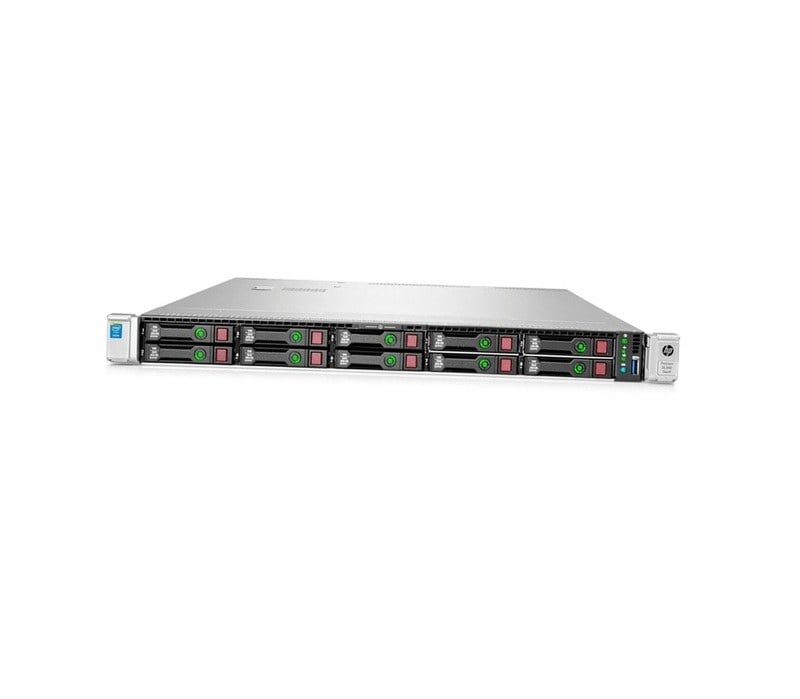

Overview to this 800081-S01 HPE
The HPE ProLiant DL360 Gen9 server is a high-performance computing system designed to deliver exceptional speed, reliability, and scalability for enterprise-level applications. It is built to handle demanding workloads and provide advanced security features. In this article, we will discuss the key features of the HPE ProLiant DL360 Gen9 server, including its processor, memory, storage, and power supply.
Processor
The HPE ProLiant DL360 Gen9 server is powered by the Intel Xeon E5-2667 v3 processor. This processor has eight cores and 16 threads, providing exceptional performance for demanding applications such as virtualization, databases, and high-performance computing. The processor has a clock speed of 3.2 GHz and can turbo boost up to 3.6 GHz, providing fast and responsive computing.
Memory
The HPE ProLiant DL360 Gen9 server supports up to 24 DDR4 DIMMs, providing a maximum memory capacity of 3TB. The server comes with 32GB DDR4 DIMMs, providing fast and efficient memory performance. DDR4 memory provides faster data transfer rates and lower power consumption compared to DDR3 memory, making it an ideal choice for high-performance computing.
Storage
The HPE ProLiant DL360 Gen9 server comes with eight SFF (Small Form Factor) hot-plug drive bays, supporting SAS, SATA, and SSD drives. These bays provide flexible and scalable storage options, allowing you to expand the storage capacity as needed. The server also supports HPE Smart Array Controllers, providing advanced data protection features such as RAID and encryption.
Power Supply
The HPE ProLiant DL360 Gen9 server comes with two 500W power supplies, providing redundancy and ensuring that the server stays operational in case of a power supply failure. The server also supports HPE Power Discovery Services, allowing you to monitor and manage power consumption across your data center.
Key Information
- Manufacturer: HPE
- Model Number or SKU # 800081-S01
- Product Type: Server
Processor & Chipset Information of Server
- Processor Type : Intel Xeon E5-2643v3/ 3.2ghz
- Max Turbo Speed : 3.6 Ghz
- Quickpath Interconnect: 9.60 Gt/s
- Number Of Cores : Octa-core
- 64-bit Computing : Yes
- Compatible Processor Socket : Fclga2011-3
- Installed Qty : 1
- Max Supported Qty : 2
- Chipset Type : Intel C610 Series
Cache Memory :
- Cache Memory Type : Smart Cache
- Installed Size : 20mb
Memory :
- Installed Size : 32 Gb / 384 Gb (max)
- Technology : Ddr4 Sdram – Advanced Ecc
- Memory Speed : 2133 Mhz
- Memory Specification Compliance : Pc4-17000
- Form Factor : Dimm 288-pin
- Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
- Configuration Features : 2 X 16 Gb
- Ram Supported : Pc4-17000 – 768 Gb – Load-reduced, Pc4-17000 – 384 Gb – Registered
Storage Controllers :
- Storage Controller Name : Smart Array P440ar
- Buffer Size : 2 Gb
- Disk Drive : 12gb/s Sas / 6gb/s Sata
- Sas Port Link Rate : 12gb/s Per Physical Link Supported
- Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)
- Physical Drives : Up To 26 Drives
- Logical Drives Supported : Up To 64 Logical Drives
- Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Display & Graphics Controllers :
- Graphics Controller Type : Integrated Matrox G200
Network & Communication :
- Type : Integrated
- Ethernet Ports : 4 X Gigabit Ethernet
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller : Integrated Lights-out 4
- Features : Wake On Lan (wol), Pxe Support
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion/ Connectivity :
- Expansion Bays Total (free) :
- 1 External 5.25
- 8 (total) / 8 (free) X Hot-swap 2.5 Sff
- Expansion Slots Total (free) :
- 24 (total) / 22 (free) X Dimm 288-pin
- 2 (total) / 1 (free) X Cpu
- 1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
- 1 (total) / 0 (free) X Pcie 3.0 X8 – Low-profile
- 1 (total) / 1 (free) X Flexiblelom
- 1 (total) / 1 (free) X Microsd Card (internal)
Interfaces & Ports :
- 1 X Vga
- 1 X Serial
- 4 X Lan (gigabit Ethernet)
- 1 X Hp Ilo
- 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)
I/O Expansions
- Number of Internal 2.5″ Bays 8
Display & Graphics
- Graphics Controller Manufacturer Matrox
- Graphics Controller Model G200
Power Description
- Input Voltage 120 V AC
- 230 V AC
- Maximum Power Supply Wattage 500 W
Miscellaneous
- Environmentally Friendly Yes
- Environmental Certification WEEE
- EU WEEE
Dimensions & Weigh
- Form Factor Rack
- Rack Height 1U
- Height 1.7 Inch
- Width 17.1 Inch
- Depth 27.5 Inch
- Weight (Approximate) 33.75 LBS
